The back office training user guide to managing all of your payments easily and securely in one place through the hosted payment solution.

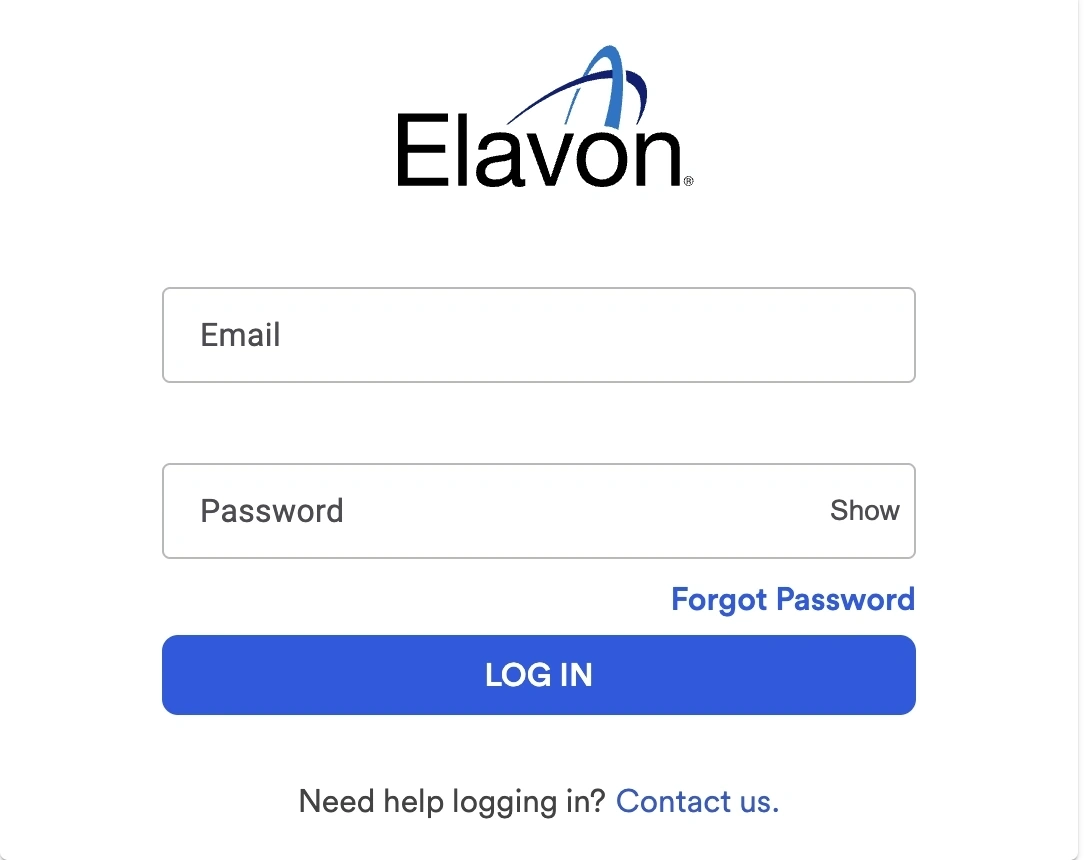

Enter the email address that you used to register for an account.
Enter your password and click ‘Log In’
(This field is case sensitive)

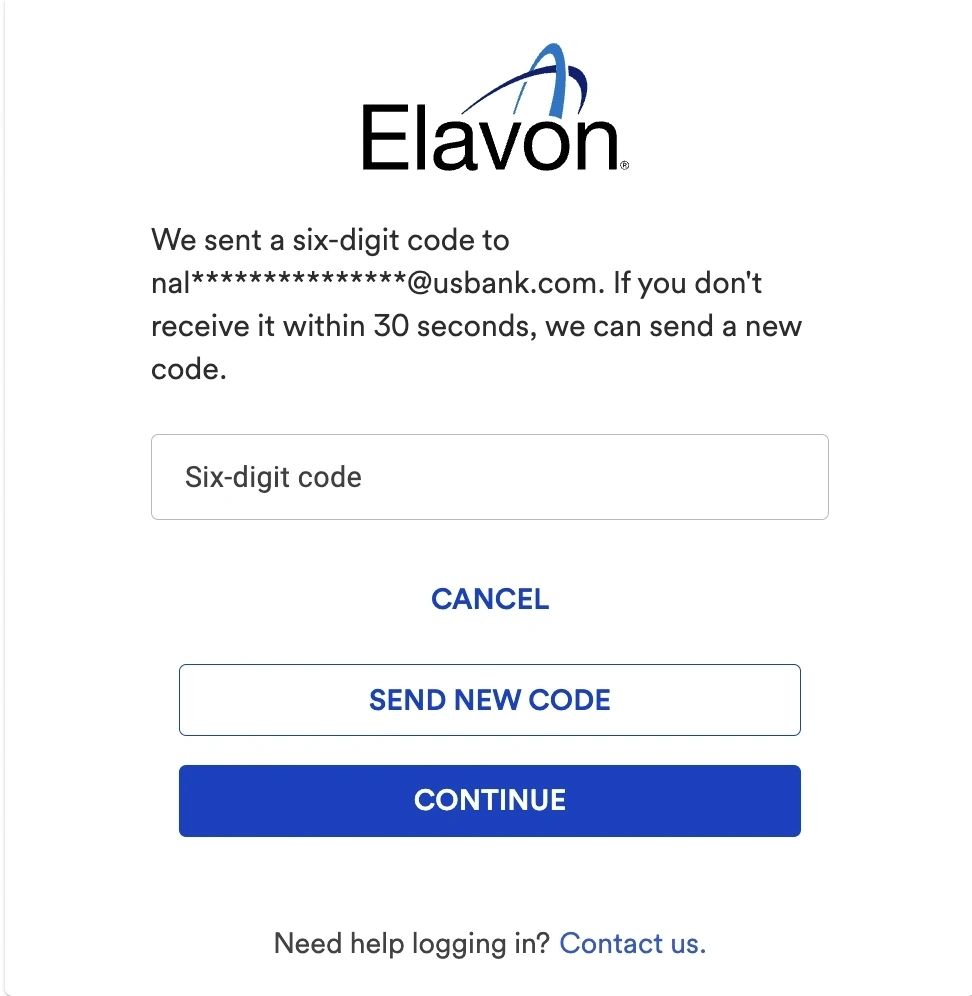

You’ll then be directed to another screen and asked to enter a 6-digit one-time passcode, as part of our secure login process using multi-factor authentication.
A one-time passcode will be delivered to the email address associated with your user account.
The email will come from firstname.lastname@example.org with the subject “Elavon Login Verification Code”.
The passcode is only valid for 15 minutes. If you do not use the passcode within this period, you’ll need to generate a new one.
If you do not receive an email with the passcode or the 15-minute period has expired, click ‘Send New Code’ to receive a new passcode.
Once you have entered your passcode, click ‘Submit’ to complete the login process

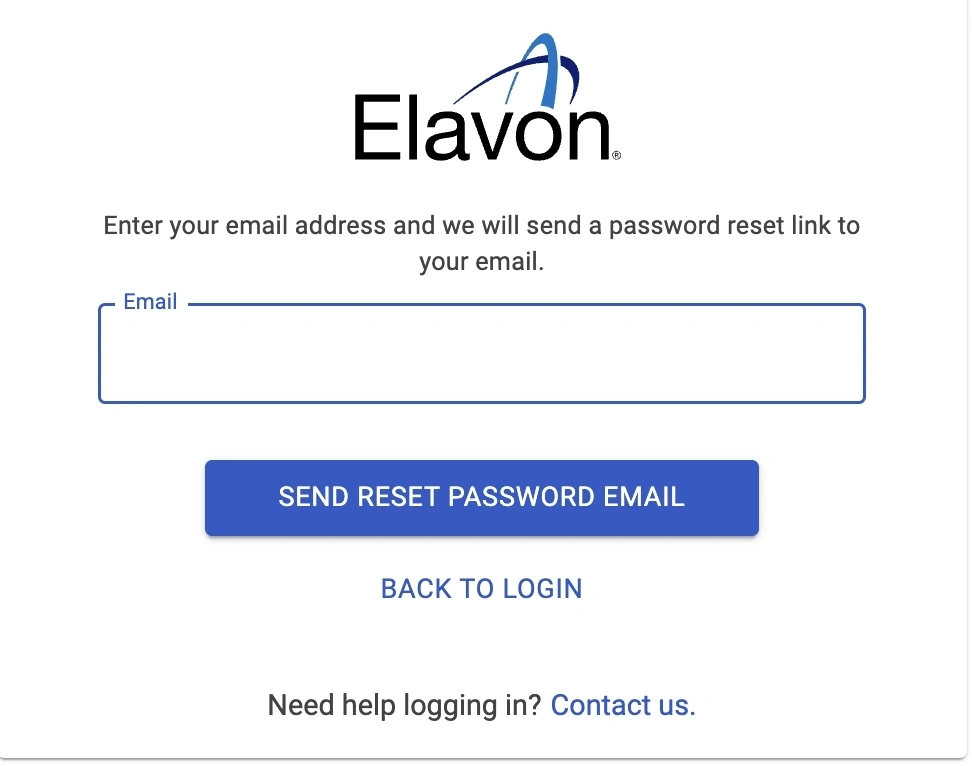

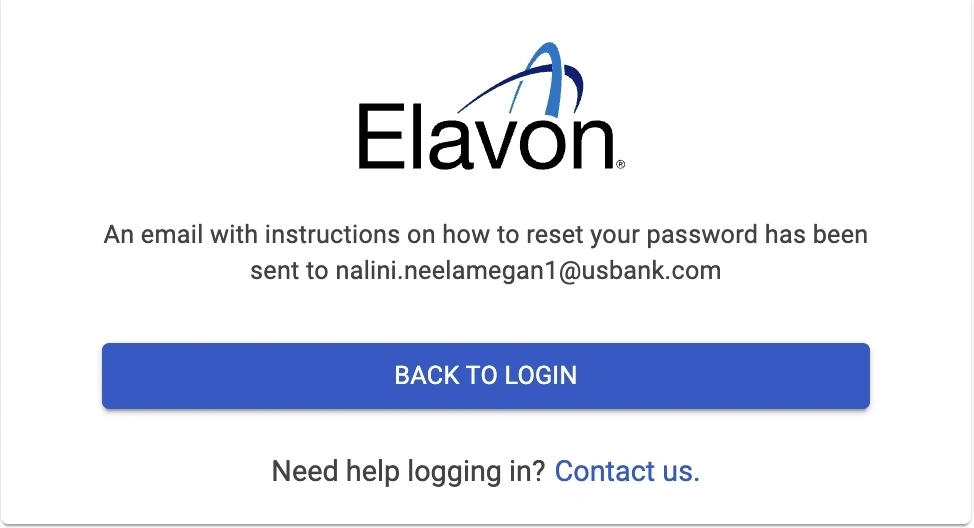

If you have forgotten your password, you can click ‘Forgot Password’ to request an email to your registered account to reset it:

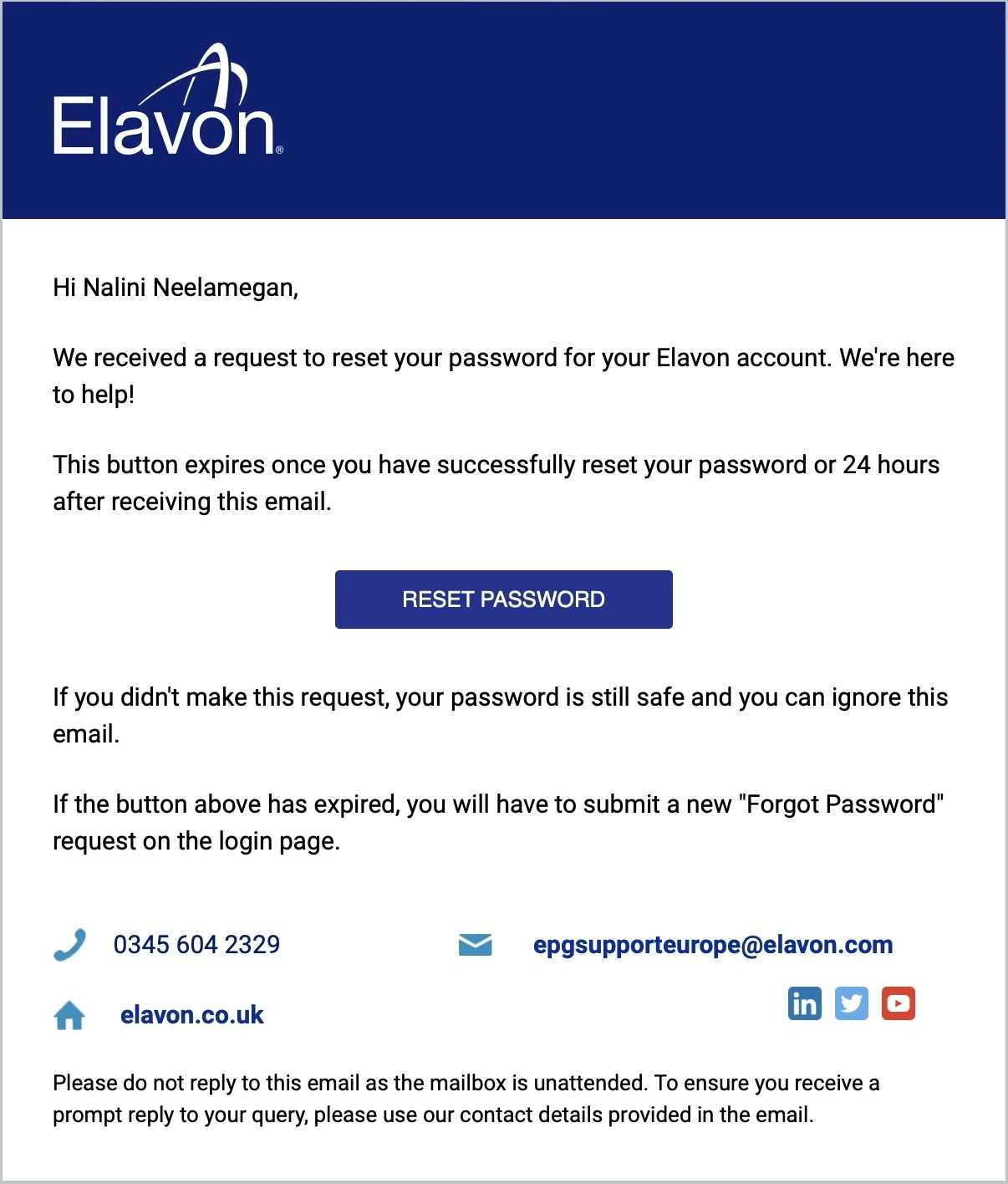

You will receive:

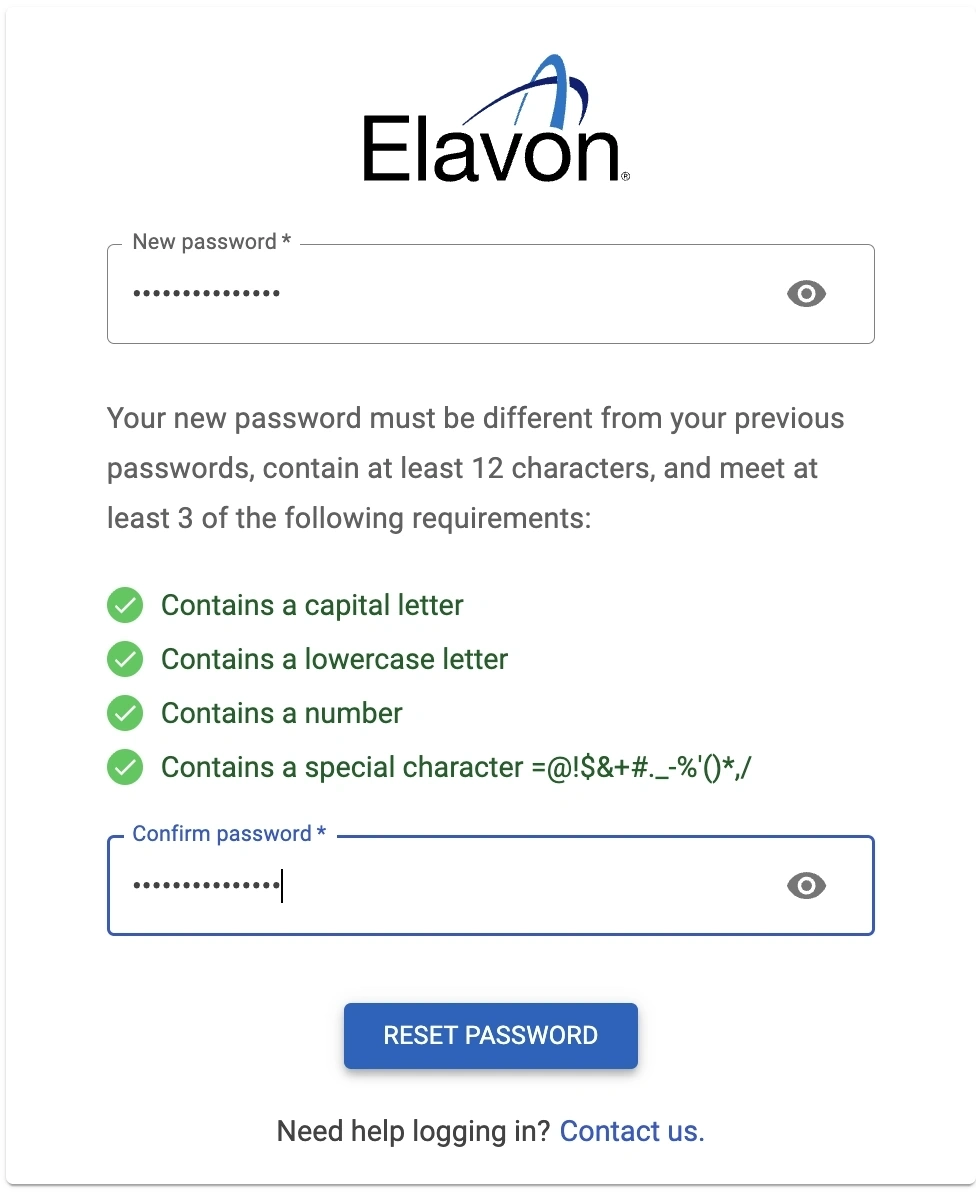

Click the ‘Reset Password’ button to be taken to a password reset screen where you can create a new password as per the secure password requirements:

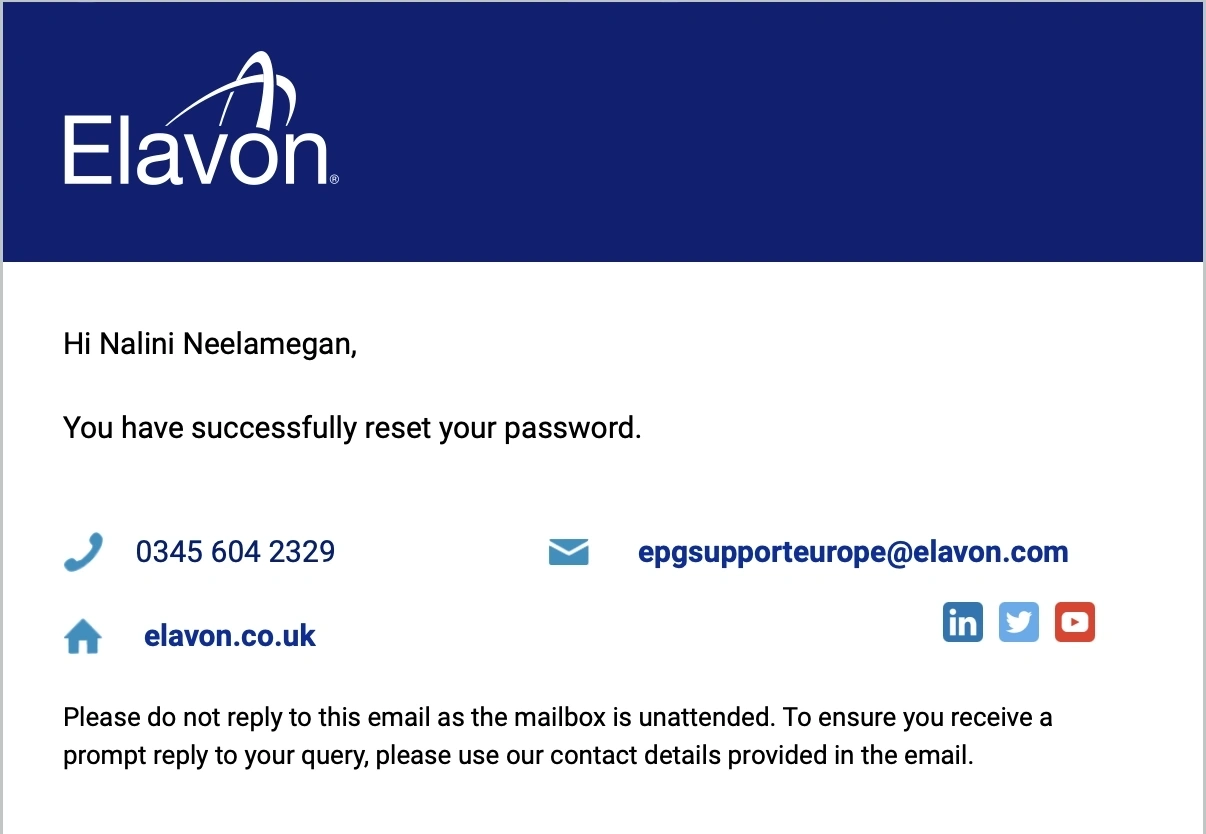

Once you have reset your password, you’ll receive the following confirmation email:

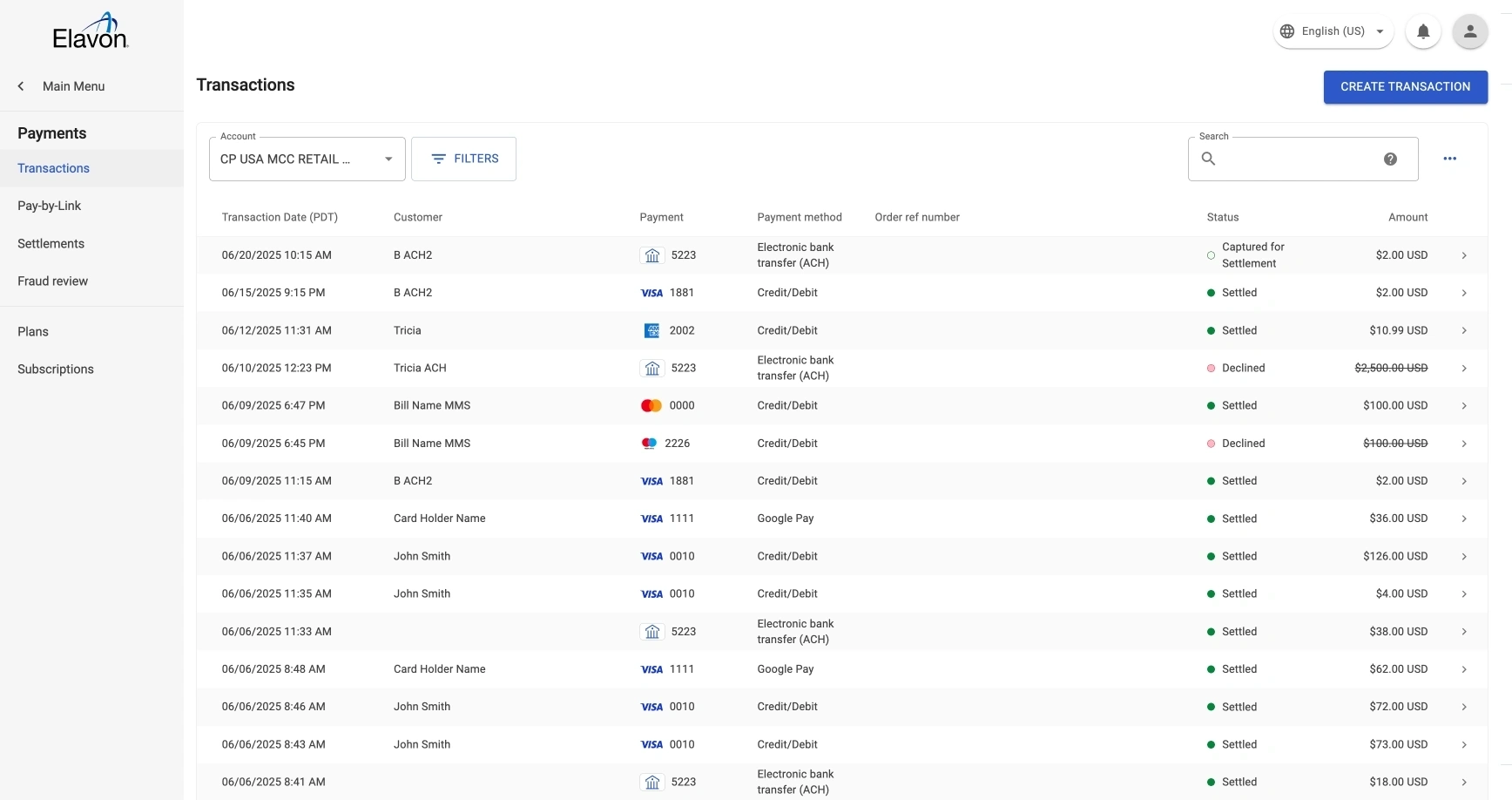

When you enter the back office, the Payments screen is displayed:
This is your home screen, and from here you can navigate to other areas of the back office via the menu on the left-hand side (according to your level of access).

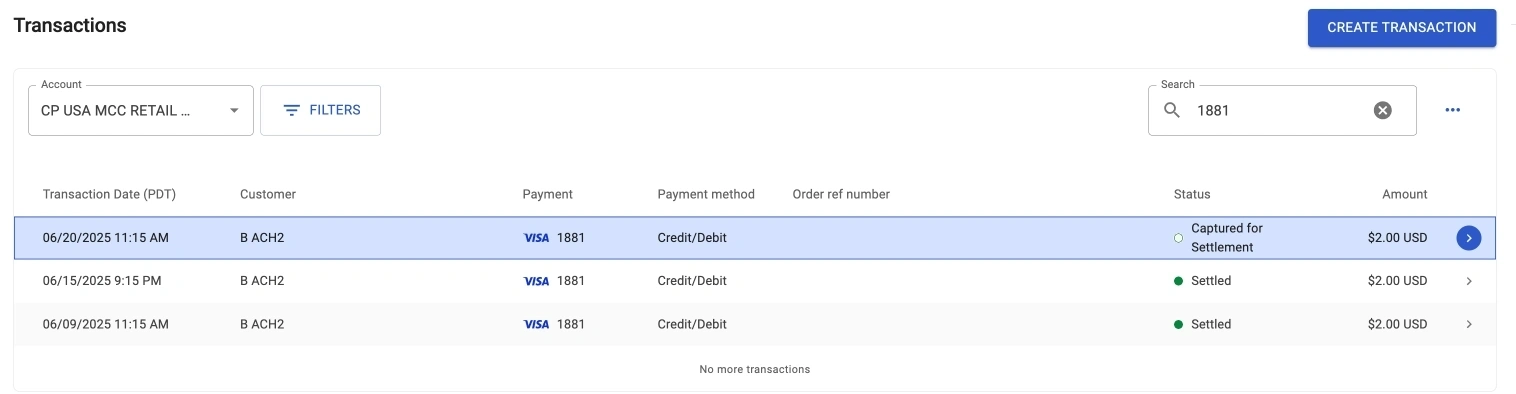

Your most recent transactions are displayed in a list format, showing:

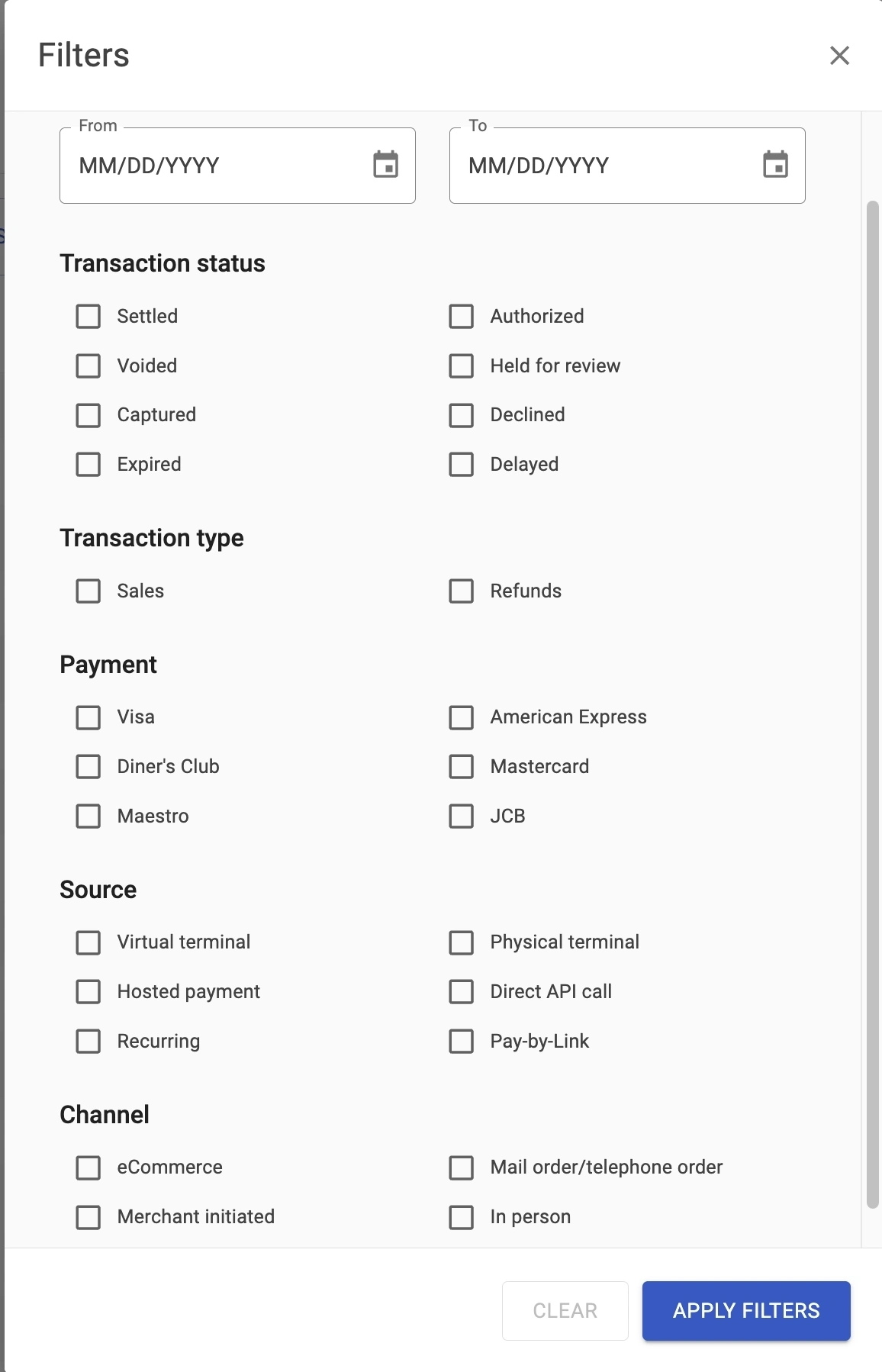

Click the ‘Filters’ button on the ‘Transactions’ screen to narrow down your list of transactions according to one or more criteria. You can filter by:

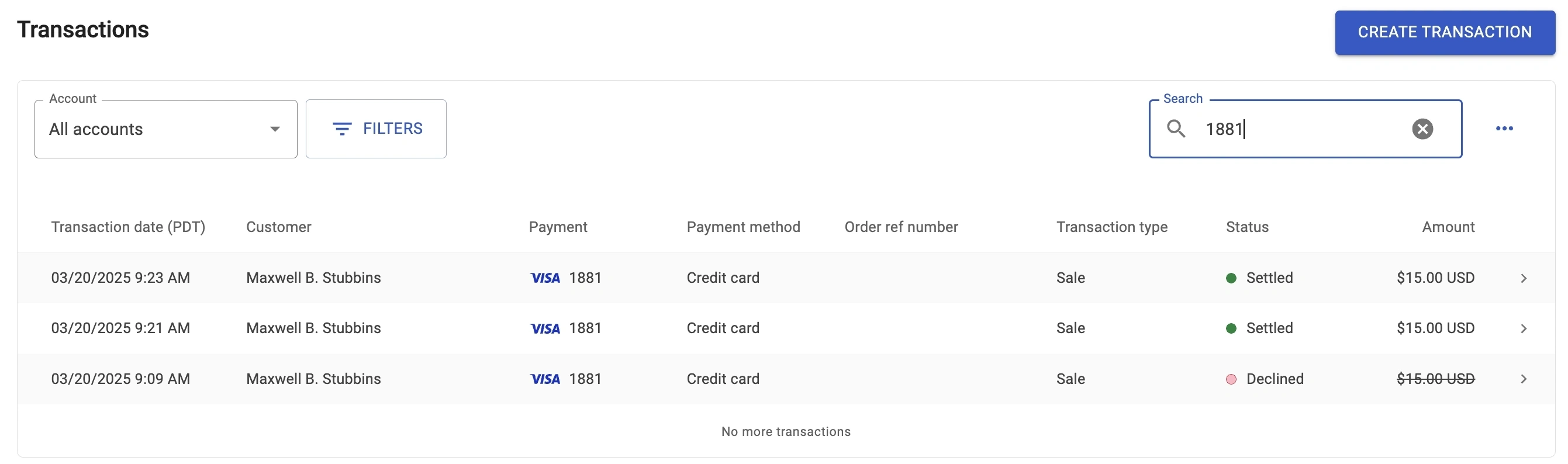

You can use a free text search criteria to search for one or more transactions using the search option in the ‘Transactions’ screen – for example, entering the last four digits of a card number will return all transactions with that card number:

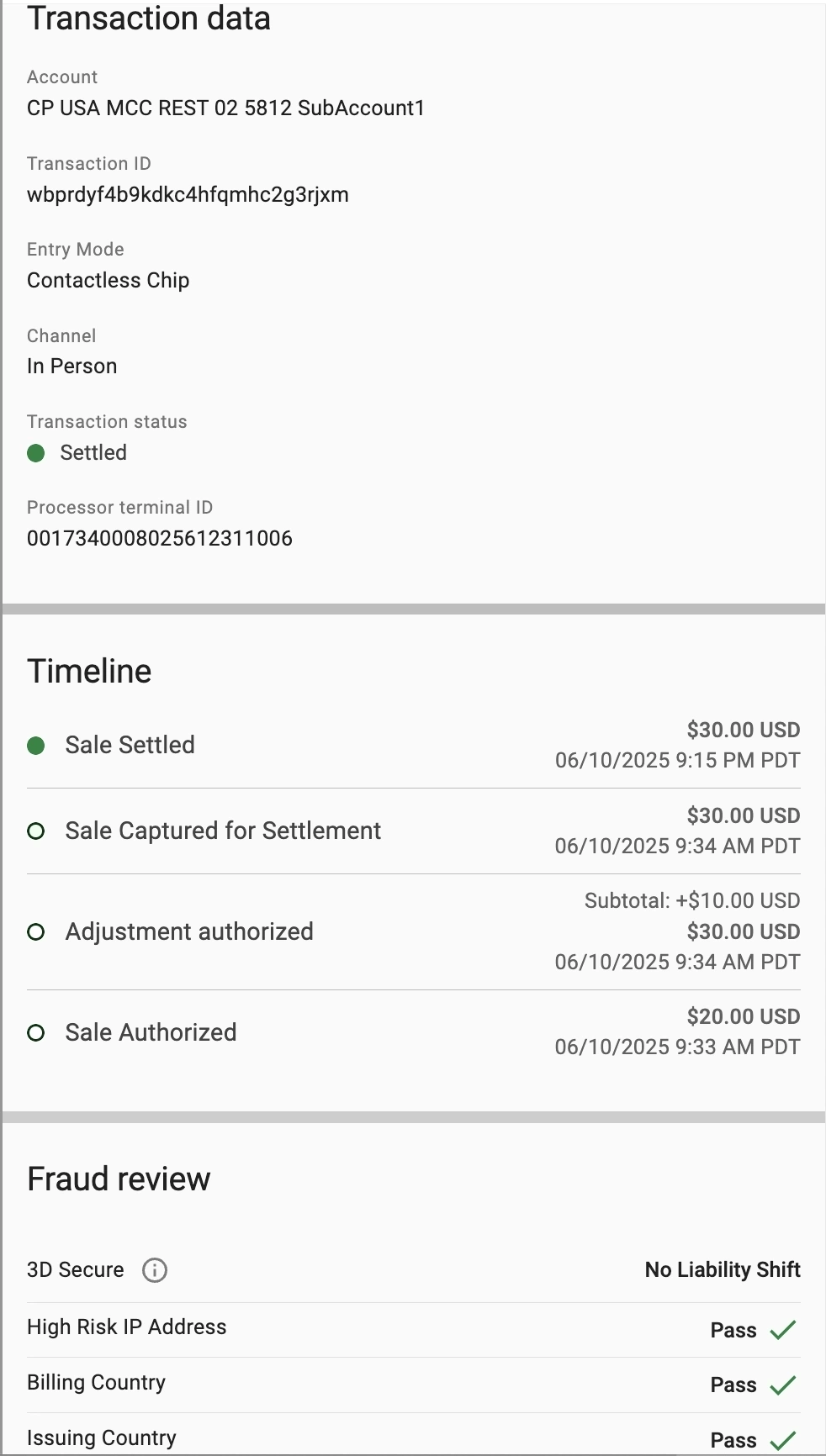

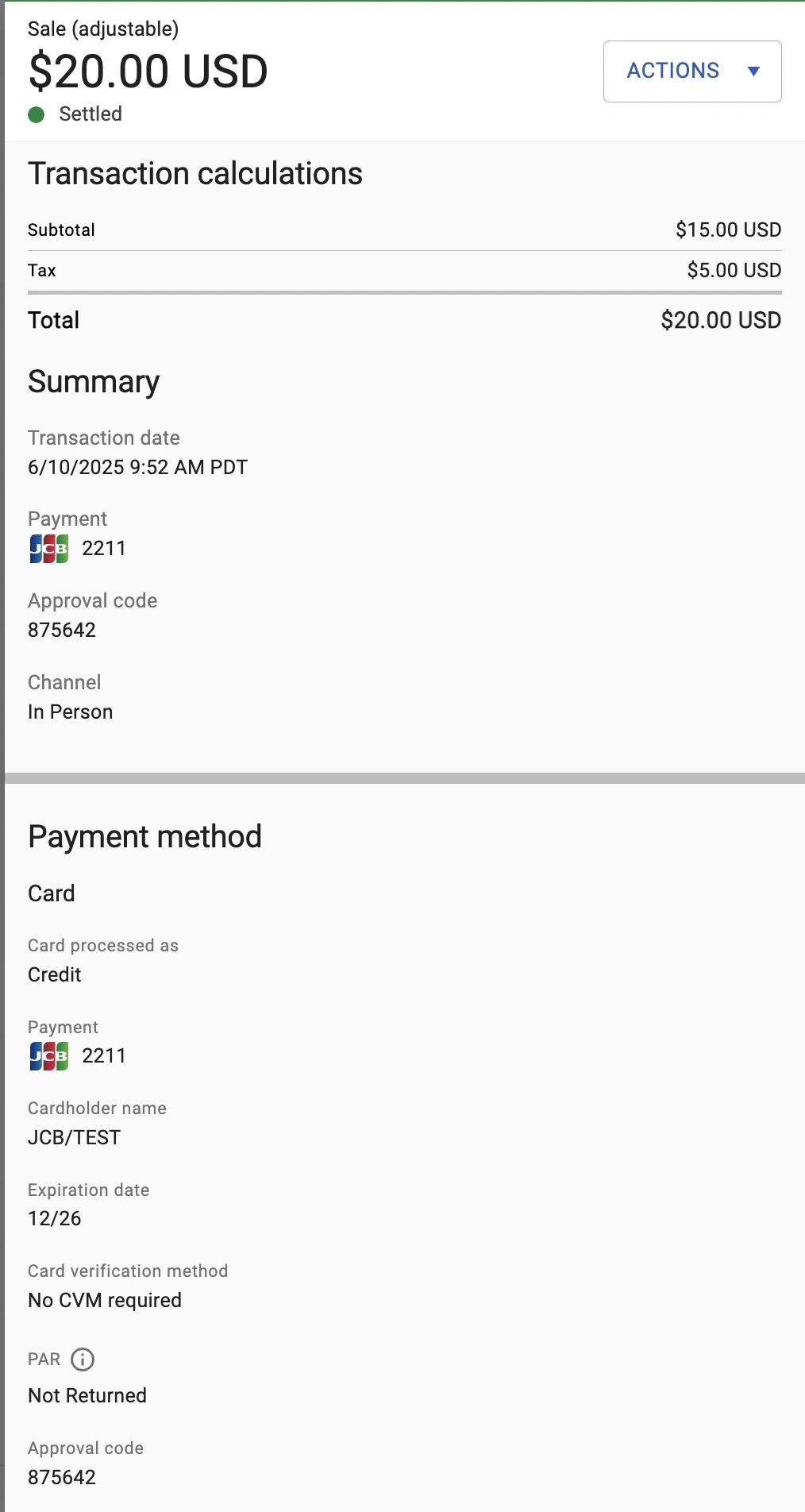

Click on a transaction in the transactions list to display additional details:

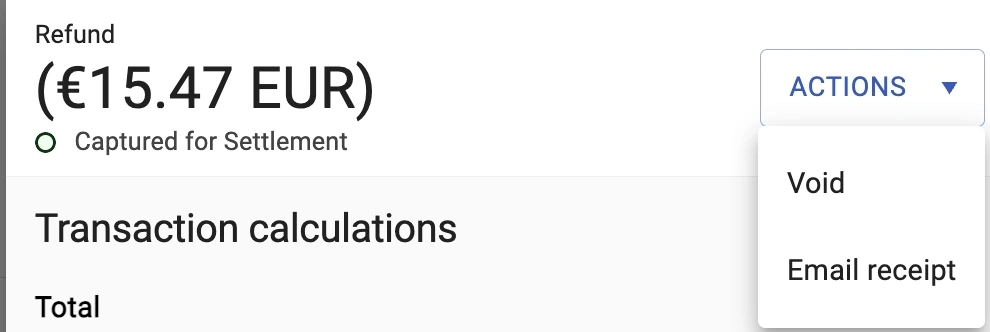

You can cancel a transaction, known as a void, if it is in an ‘Authorised’ or ‘Captured for Settlement’ status and has not yet been settled. To cancel a transaction:

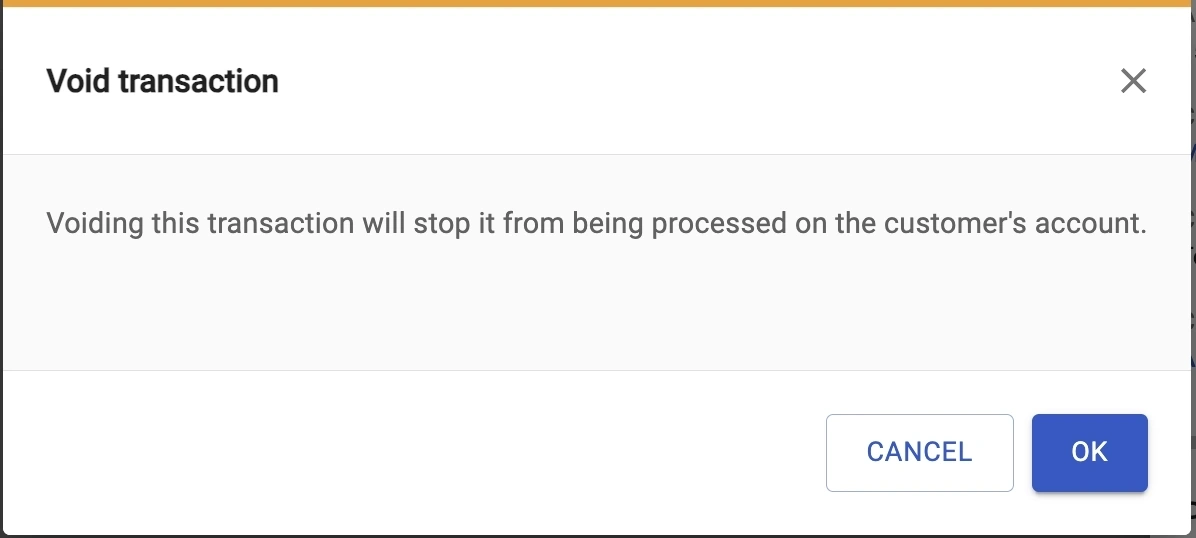

Confirm that you wish to void the transaction by clicking ‘OK’:
The status in the Transactions list will change to Voided.

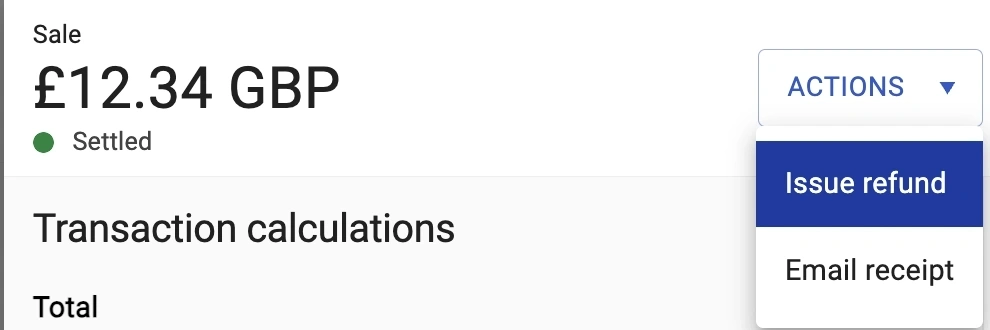

You can fully or partially refund a transaction if it is in a ‘Settled’ status. To refund a transaction:

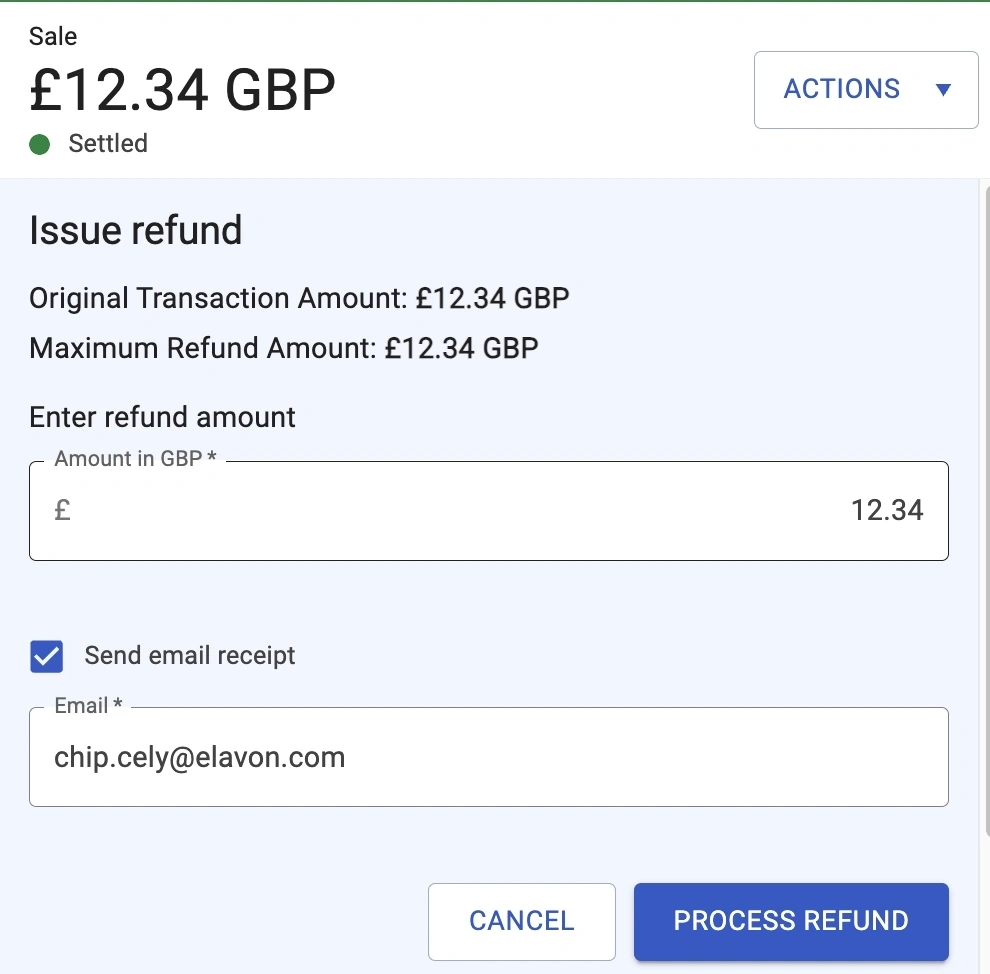

Click ‘Process Refund’ to refund the full value of the transaction.
If you only wish to refund a partial amount of the total transaction value, click into the ‘Amount’ box and type the amount you wish to return to the customer.
At this stage you can also choose to email a refund receipt to the customer:
A new transaction will appear in the Transactions table to show the refund with the status Captured for Settlement until the refund has been successfully settled.
It is easy to download transaction data to a CSV file, which you can then import into your reporting tool or spreadsheet to perform reconciliation or further analysis.

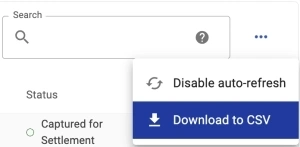

Click the three vertical dots at the top right on the transactions table and select ‘Download to CSV’ to download the Transactions list (or a subset of transactions if you have already filtered the list):
The maximum number of transactions that you can download is 1000 – if you do not apply a filter, the download will contain your 1000 most recent transactions.

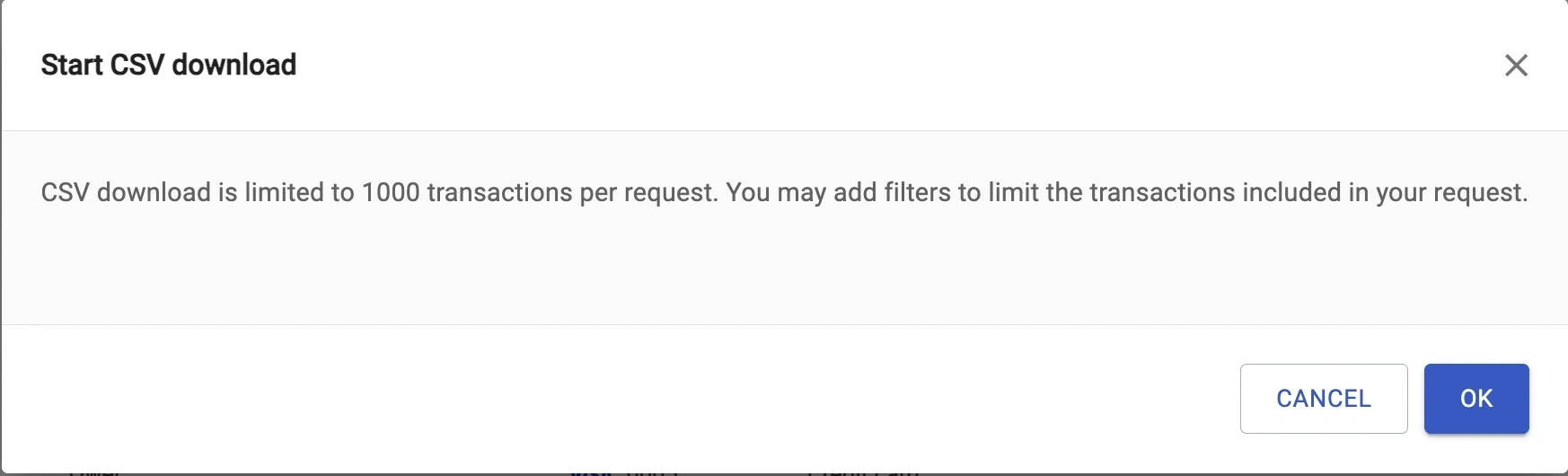

Click ‘OK’ to start the file download:

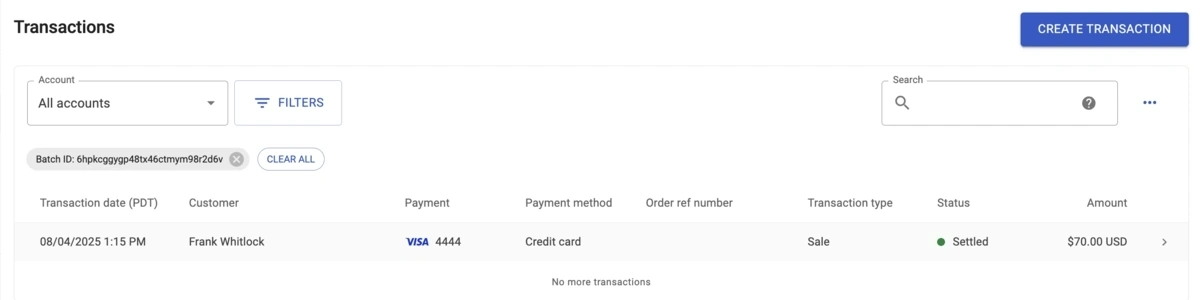

You may then view the individual transactions in a batch, filter the transaction list, and download those transactions in a CSV file for reporting, as previously detailed in the Managing Payments section.
You can process MOTO (Mail Order/Telephone Order) transactions directly in the back office using the Virtual Terminal. All MOTO transactions will appear in the transactions list and can be managed in the same way as your ecommerce transactions.

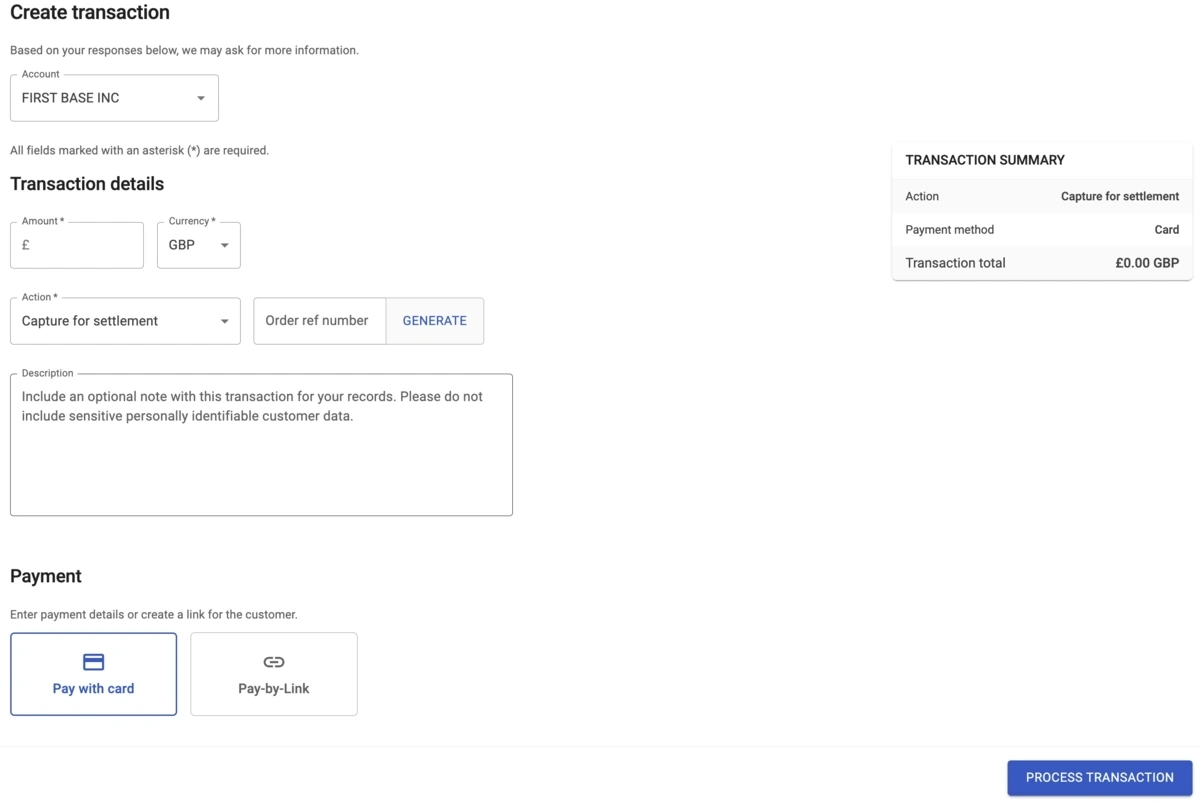

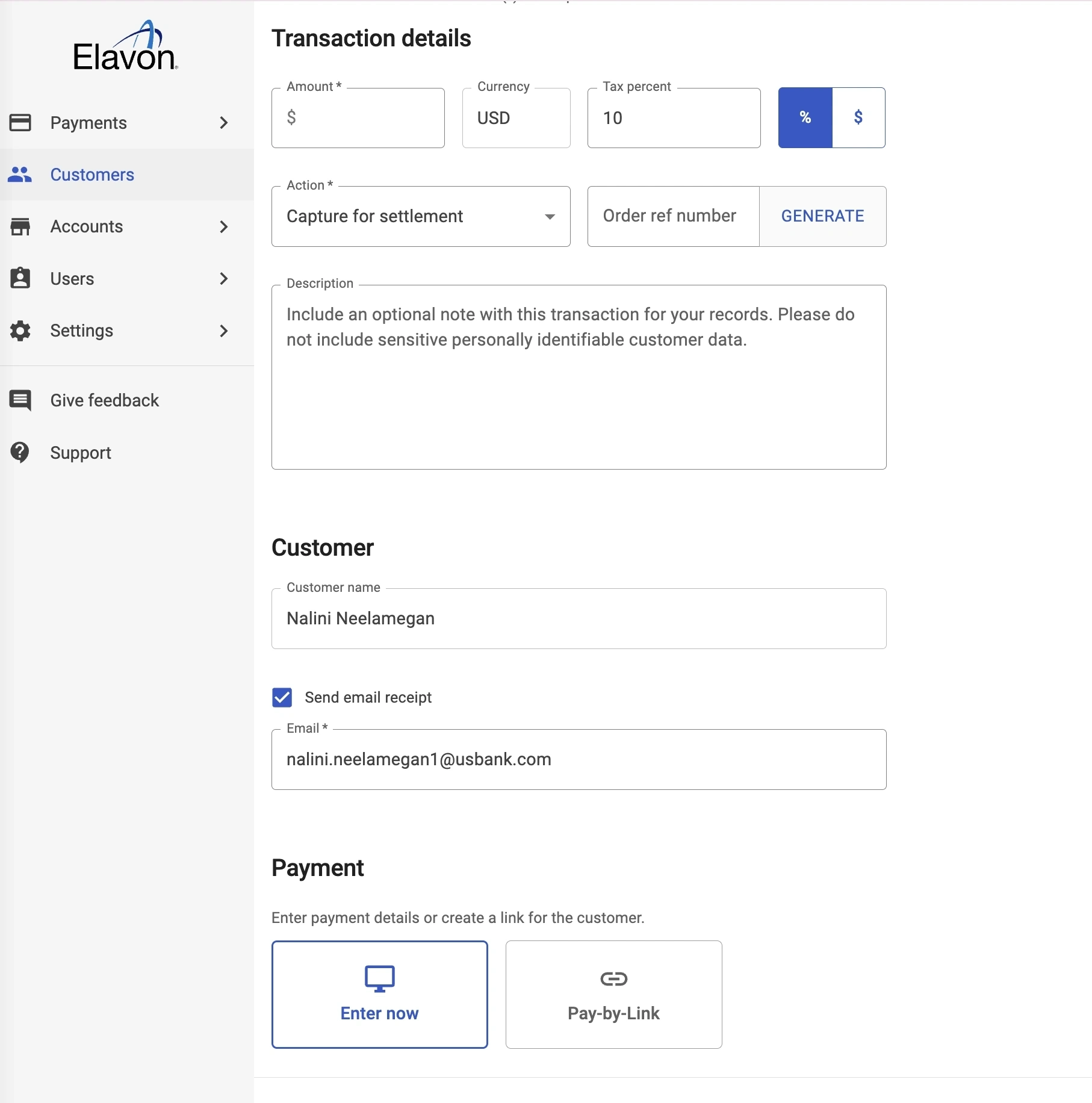

Click the ‘Create Transaction’ button in the top right-hand corner of the ‘Transactions’ screen to display the new transaction window:
Enter the transaction details into the required fields:
The details entered are copied into the summary screen on the right-hand side to enable you to confirm the transaction details with the customer before you process the transaction. Click ‘Process Transaction’ to confirm. You will then see confirmation of the transaction result, either transaction successful or transaction declined:

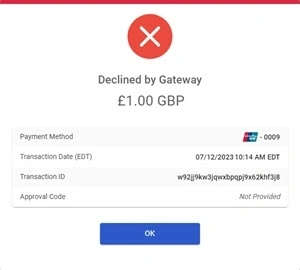

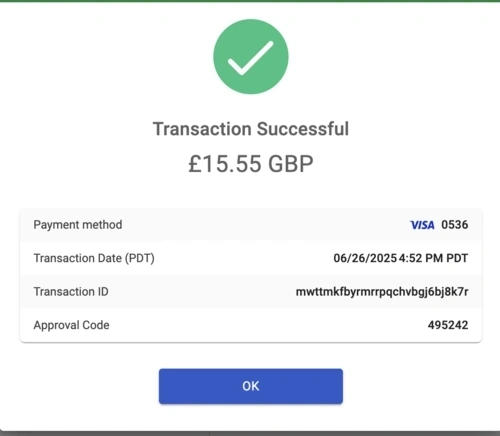

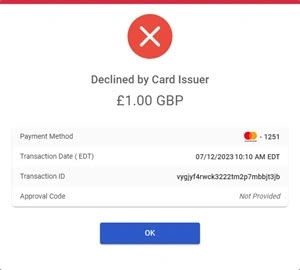

The transaction can be declined by the gateway (for example blocked by one of your fraud rules) or declined by the card issuer.
Click ‘Done’ to return to the Transactions list where you will now see the new transaction.

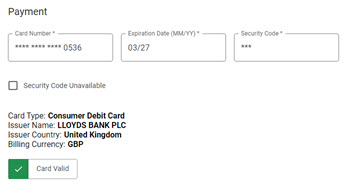

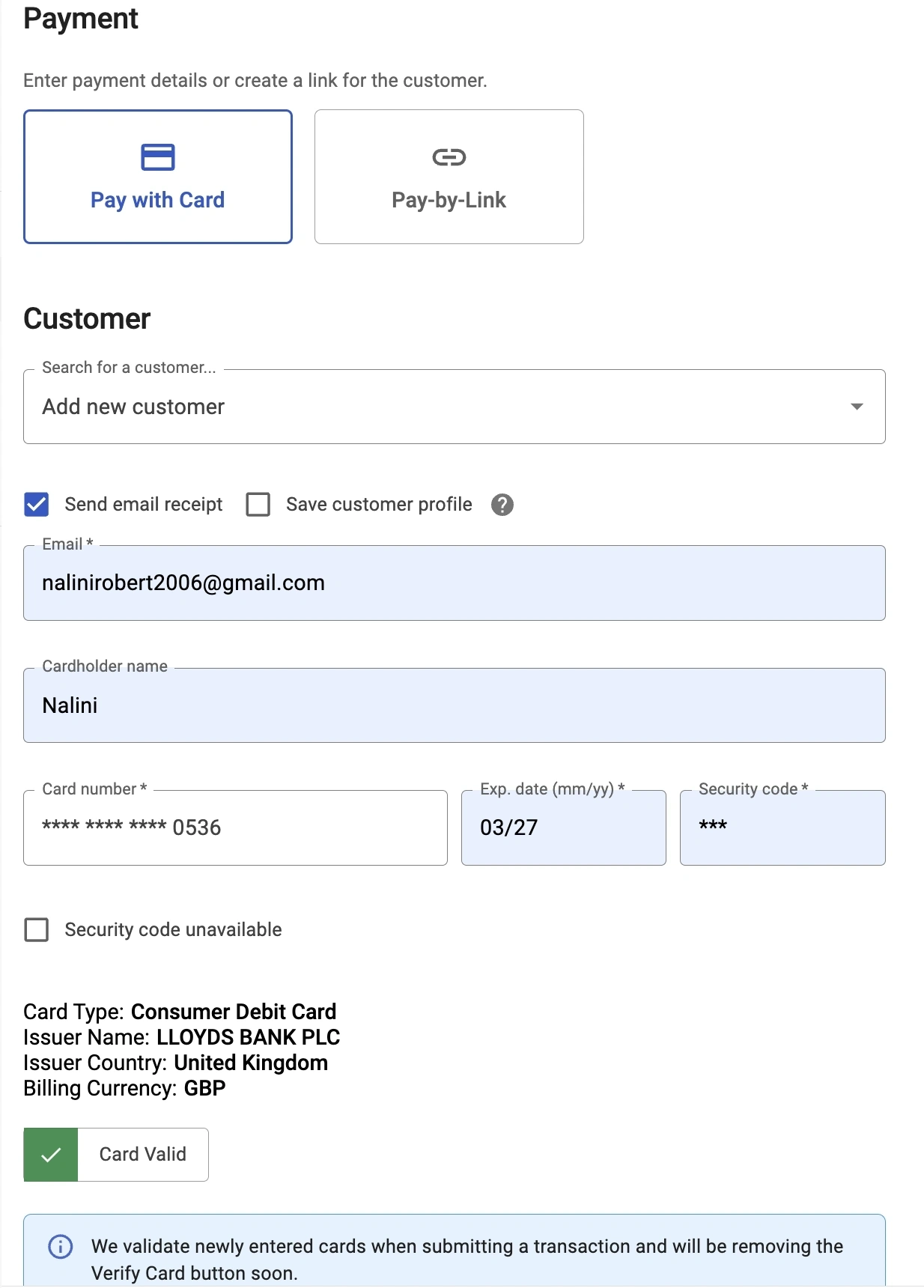

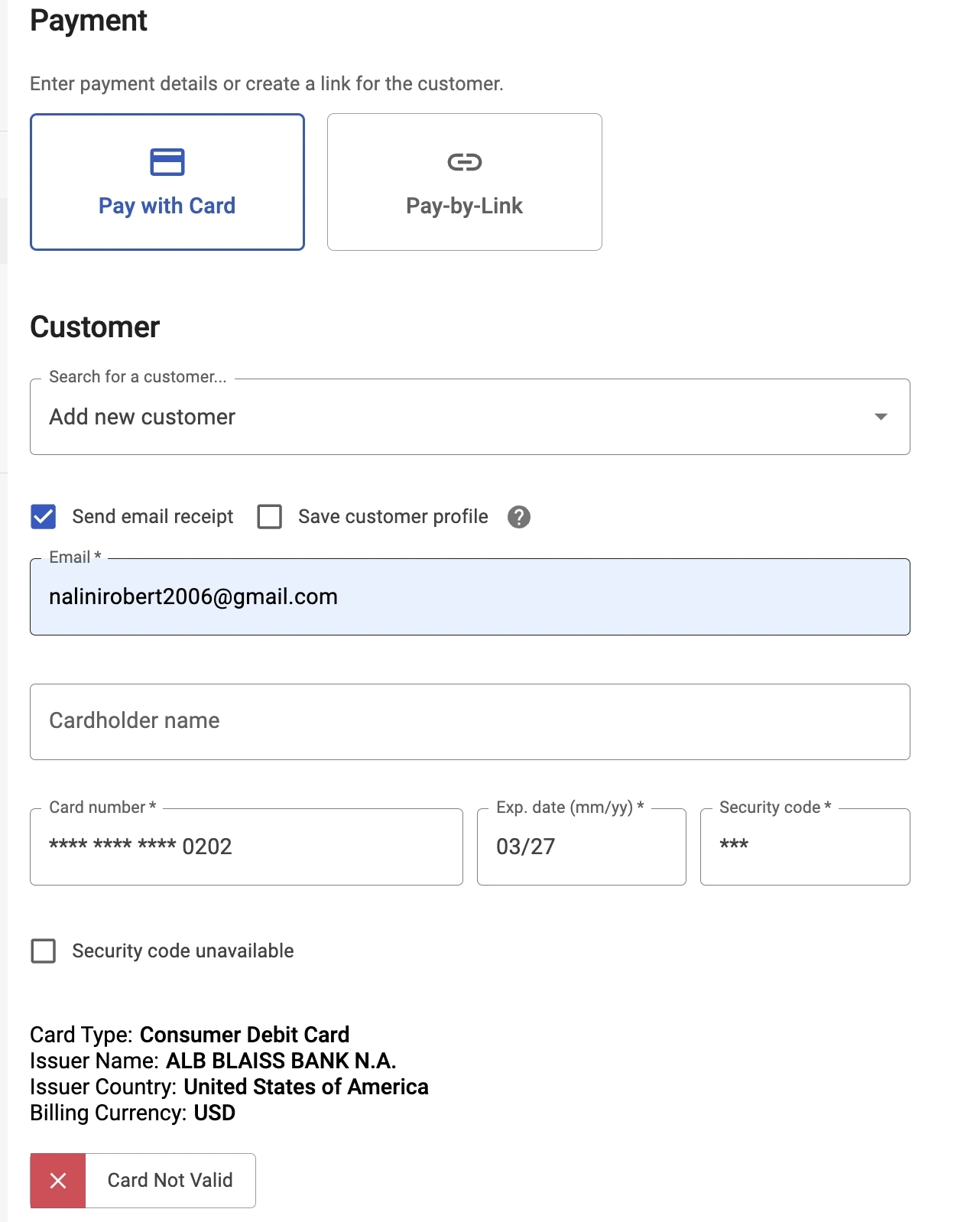

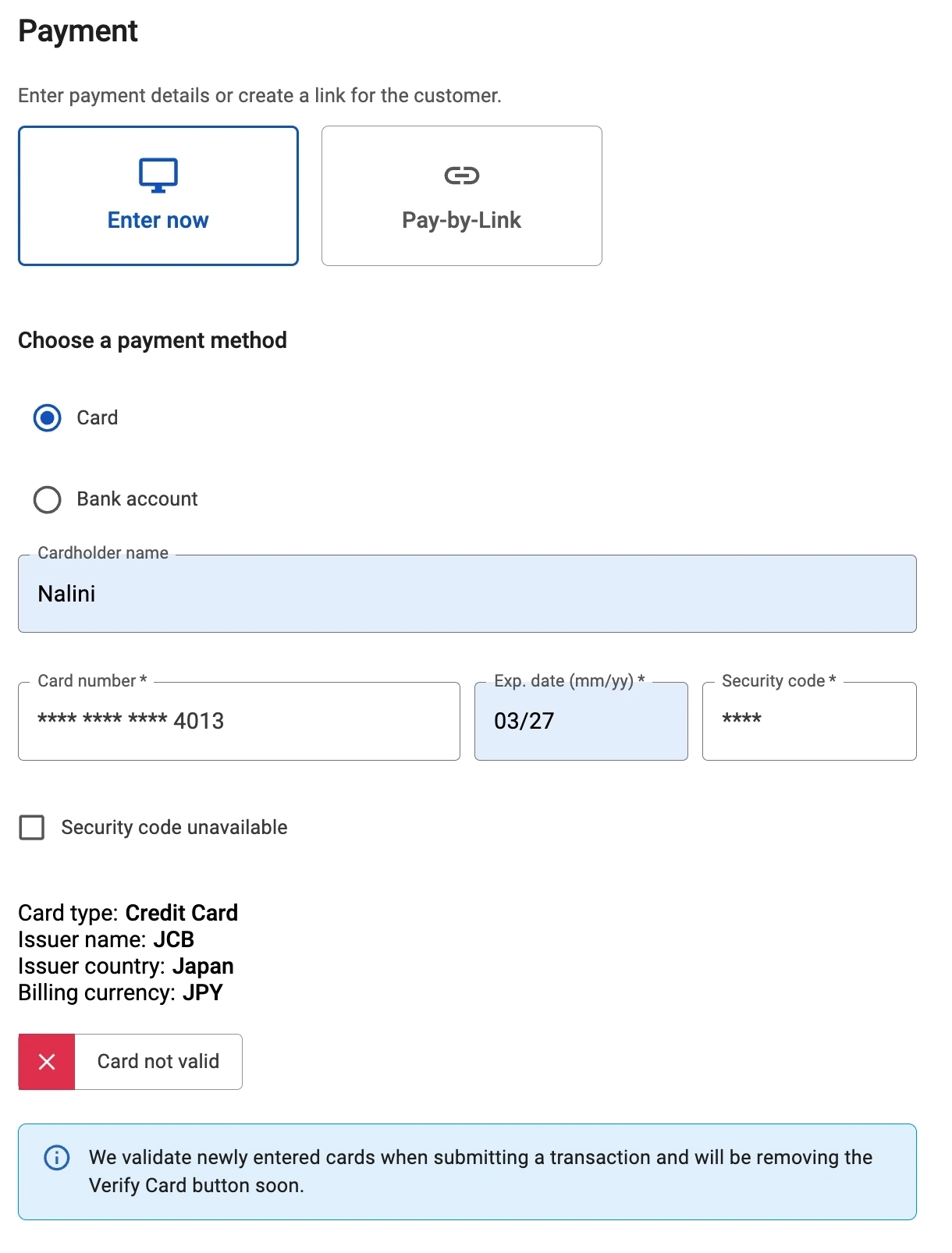

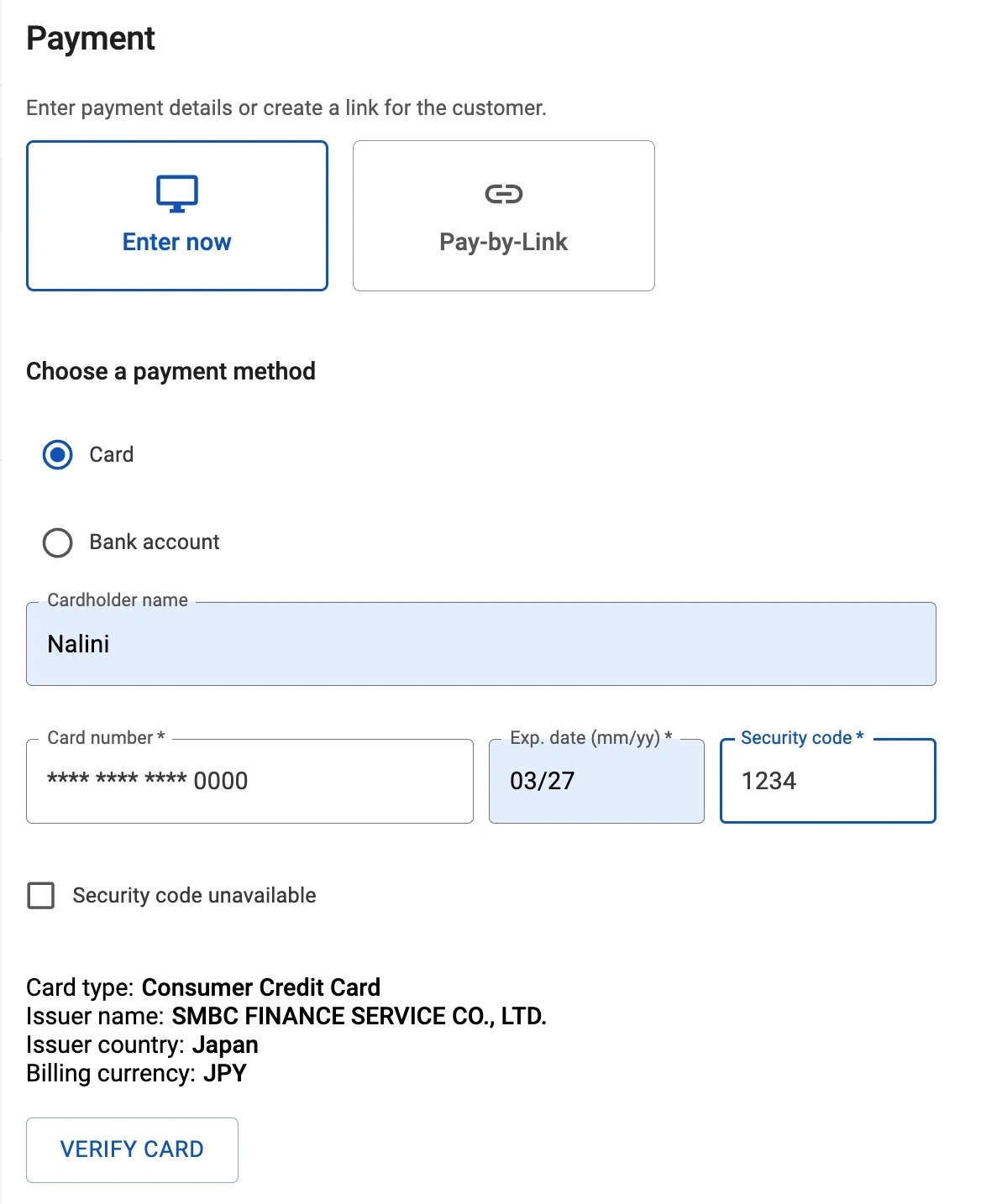

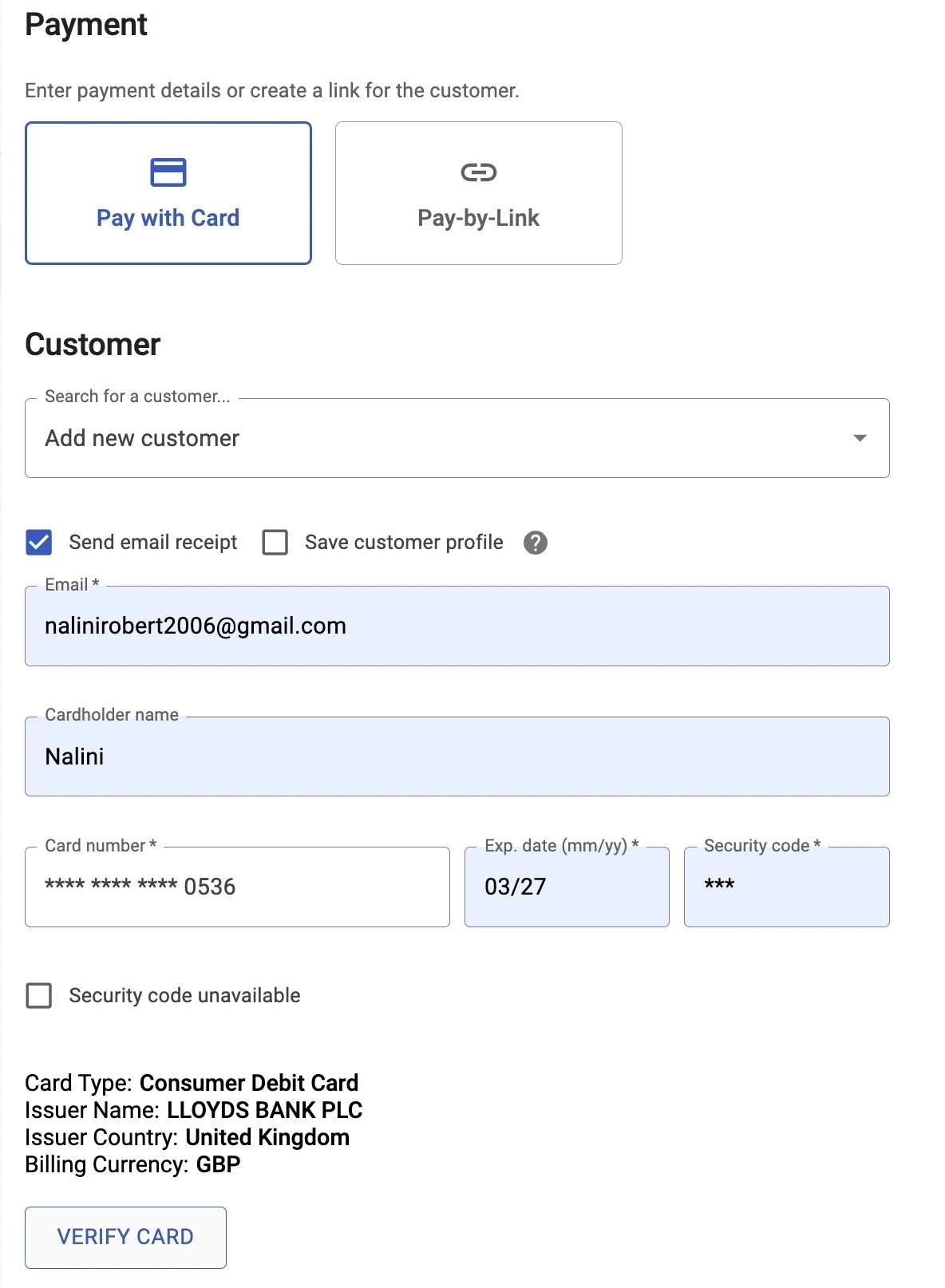

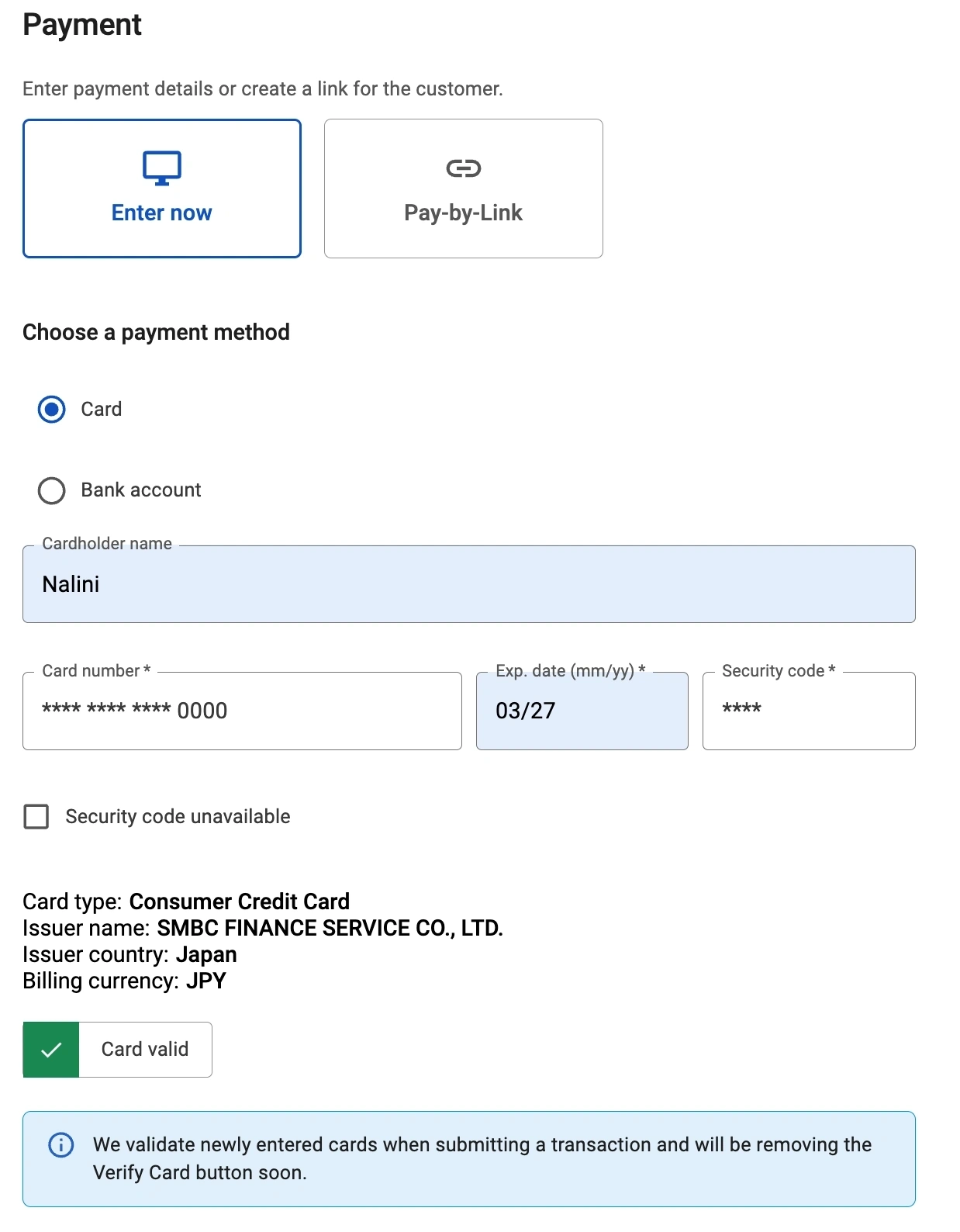

You can use the Verify Card option in the virtual terminal to confirm the validity of a credit or debit card by checking the card number, expiry date, security code and AVS data. The result of the authorisation request is returned in real-time, either confirming a successful transaction, i.e., confirmation that the card details are valid or declining the authorisation. There is no check on available funds or the credit limit of the card, so it does not validate that funds are present or guarantee any future payments.
If you have DCC enabled on your account you can offer your customers a choice of currencies to pay in, either the preferred currency of your business or, where it is different, the currency enabled by default on the customer’s card (typically the customer’s domestic and preferred currency).

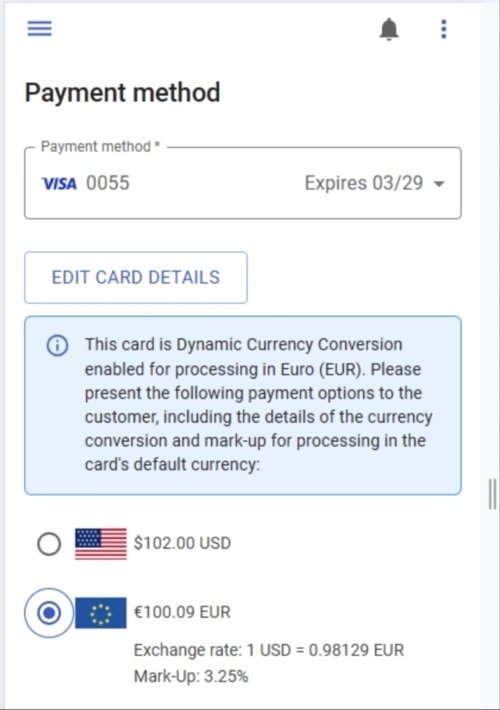

Begin the MOTO payment as described in the previous section of this guide. When the card number is entered, a message will appear to let you know if the card if enabled for DCC and, if so, the currency selection available. In this instance United States Dollar (USD) has been presented, the currency of the shopper’s card, as an alternative currency option.
You must ask the shopper which currency they wish to pay in to complete the payment.

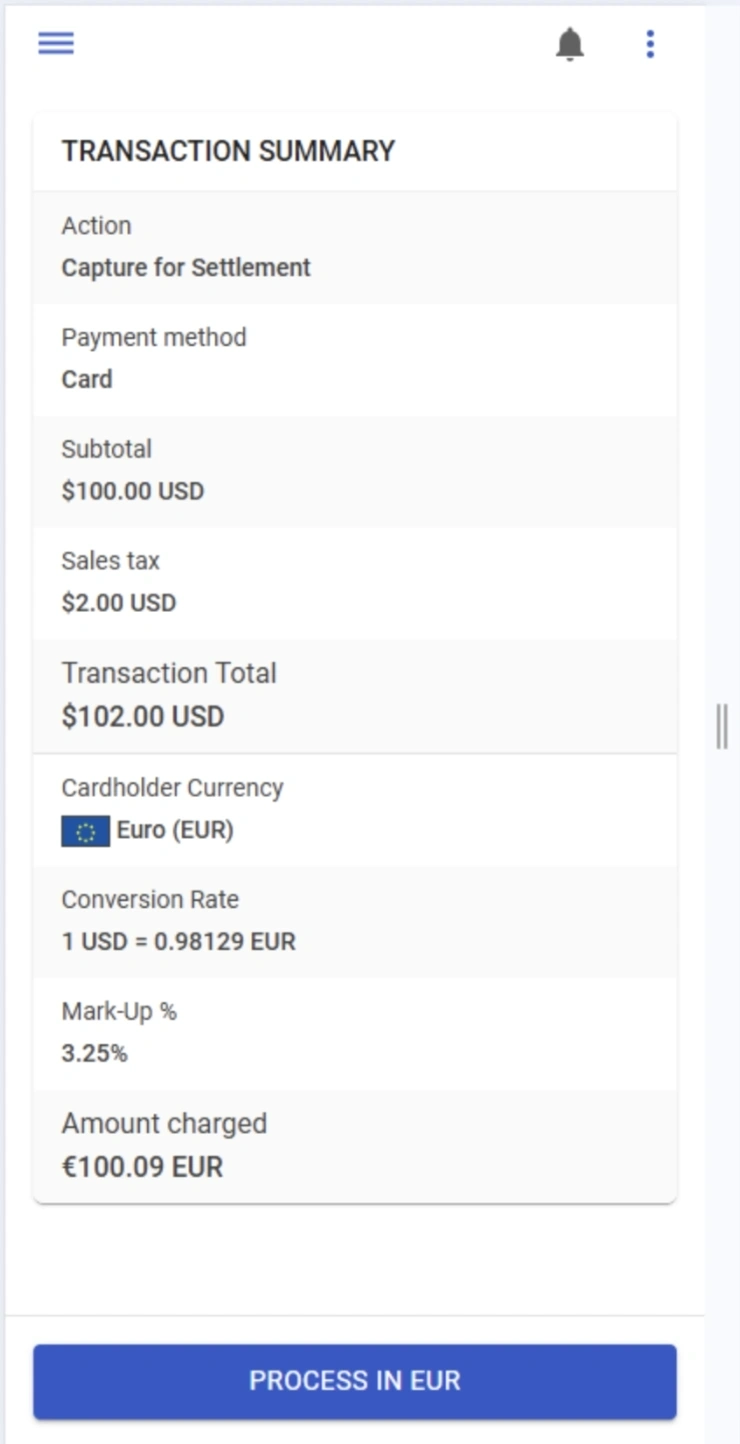

Once a currency has been selected, the blue button will update with the chosen currency – for example ‘Process in USD’.

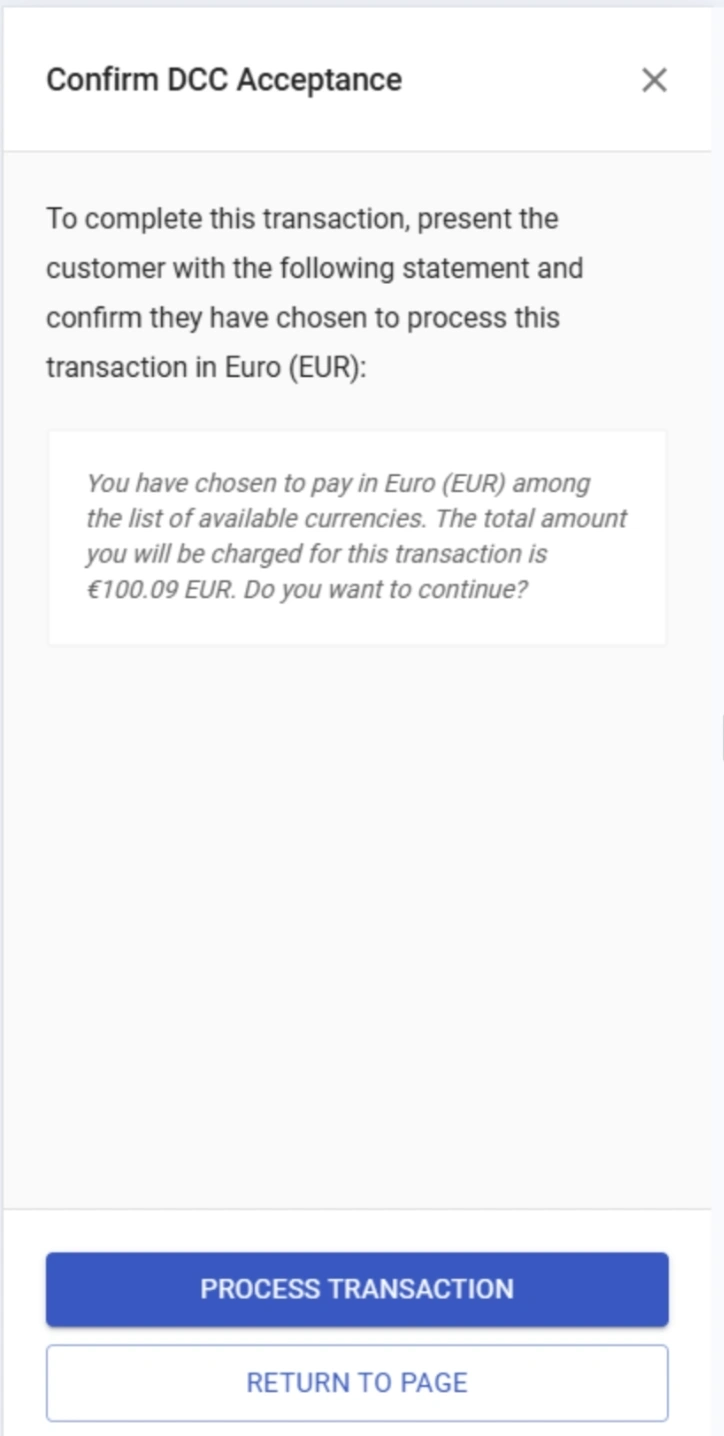

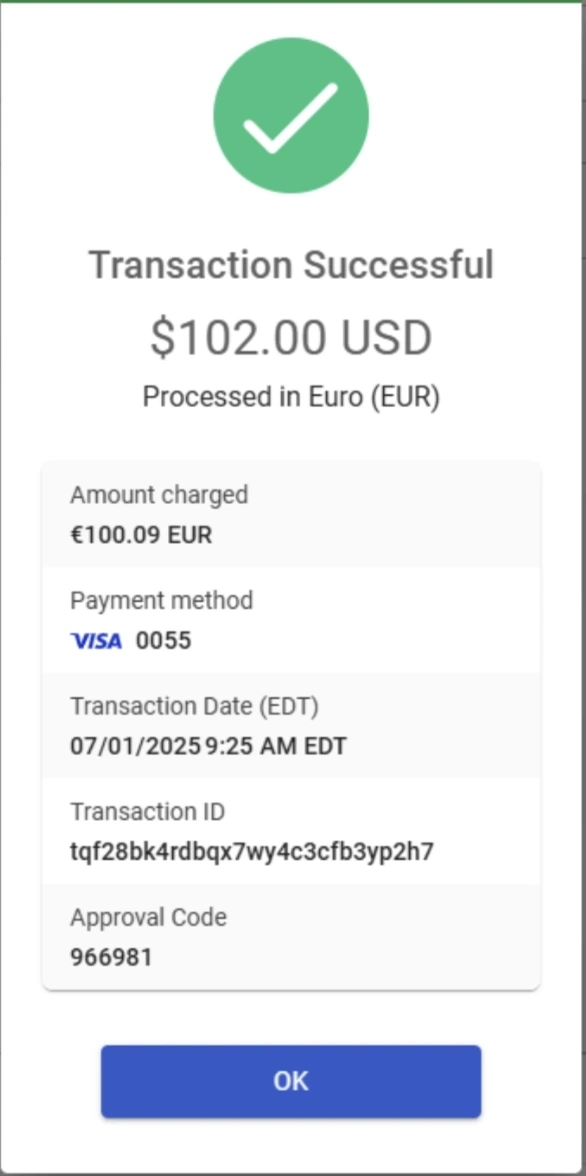

Read the DCC Acceptance statement out loud to the shopper before clicking ‘Process Transaction’

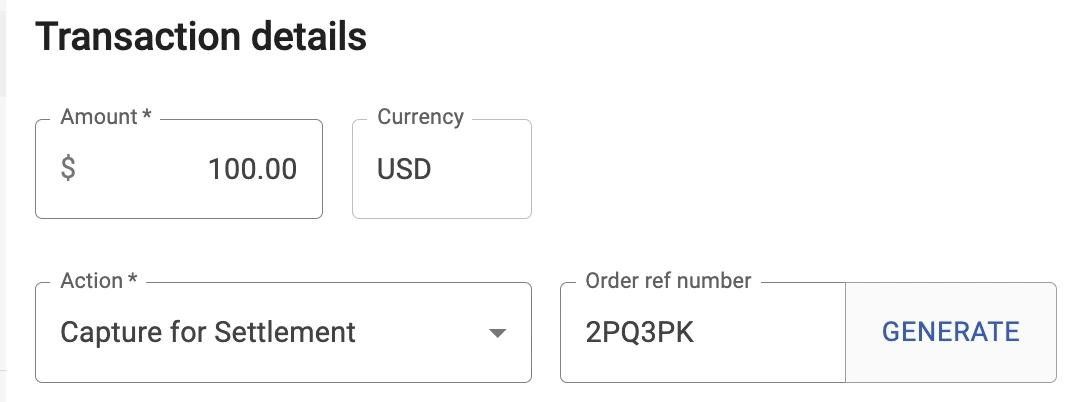

If you wish to auto-generate a unique order number, simply click the ‘Generate’ button to the right of the field and a unique reference will populate:
You can send a payment link to your shoppers to avoid asking them to share sensitive card information over the phone. The link can be sent via email, or you may copy and paste it into an email, direct social media message, SMS, or similar. The shopper will click on the link to complete a secure transaction directly on the hosted payment page.

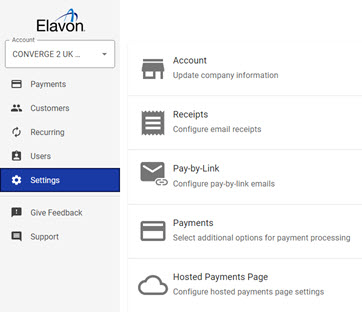

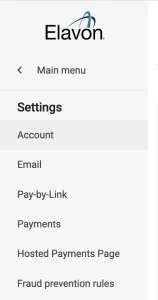

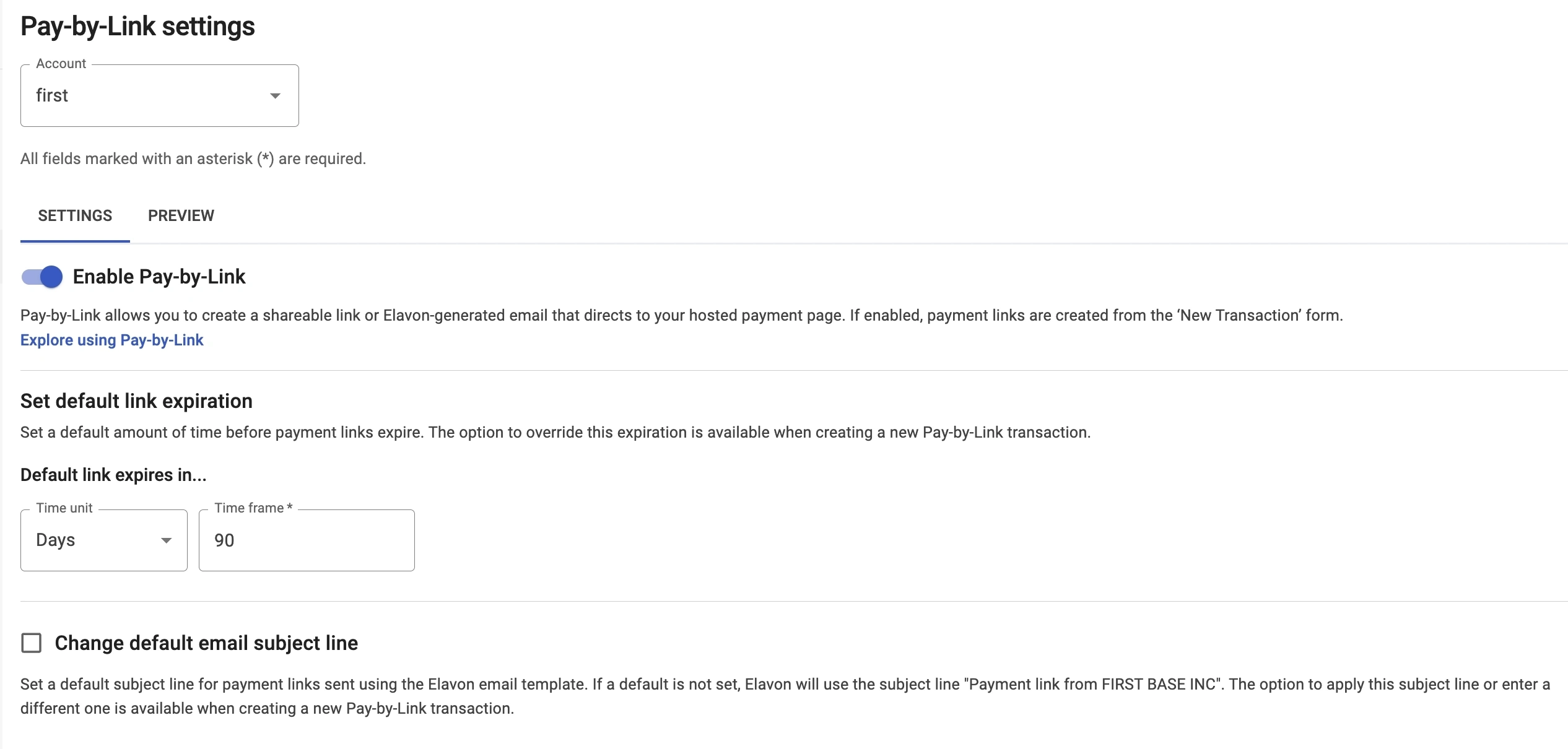

Select the ‘Settings’ option from the main menu

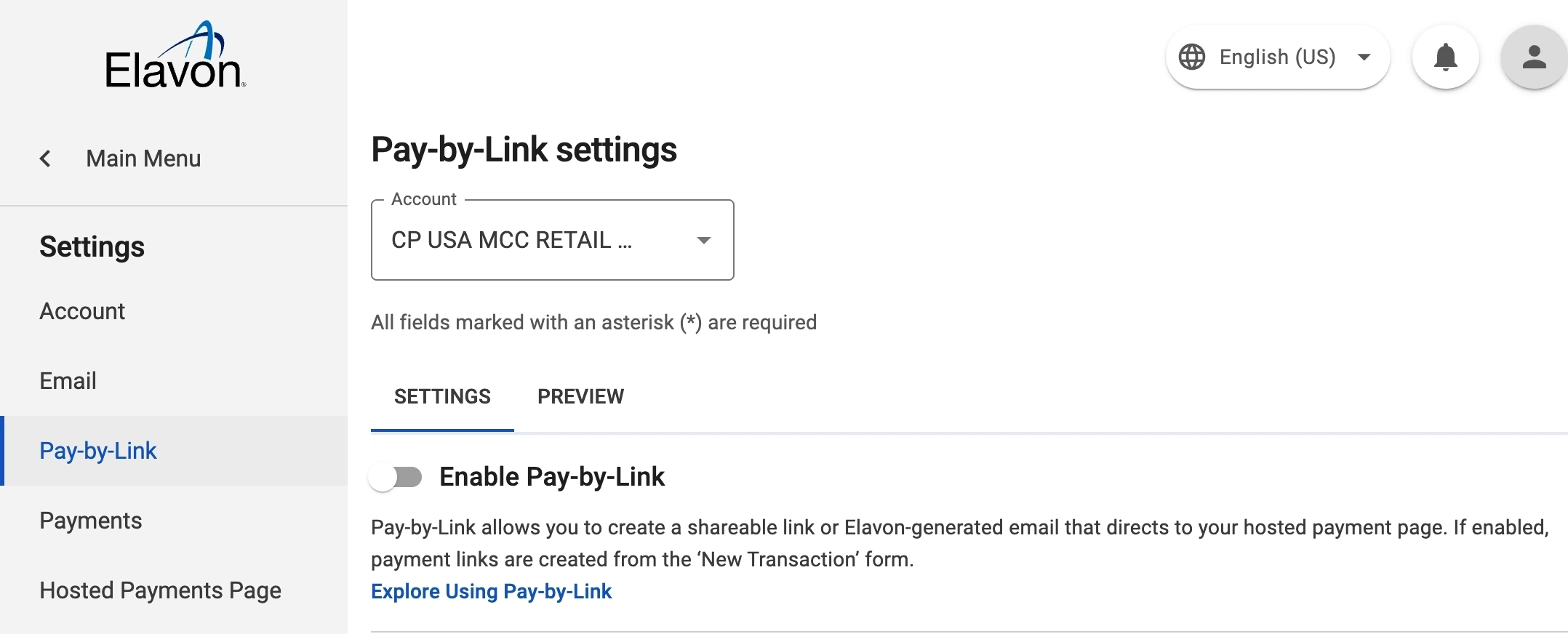

Go to ‘Pay-by-Link’

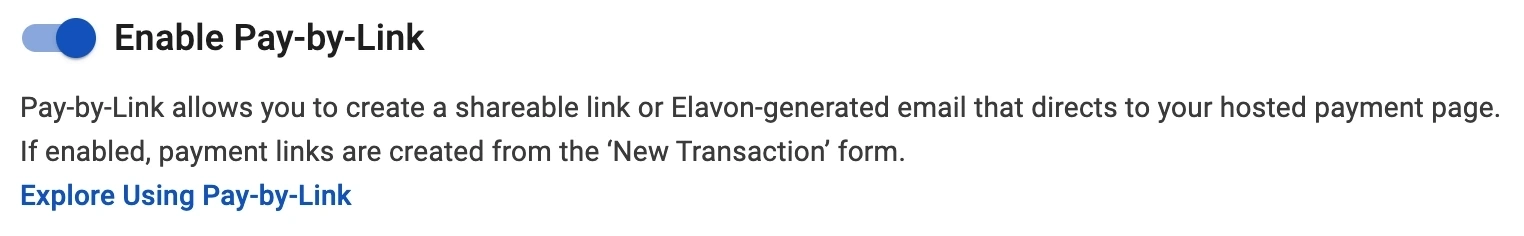

Set the Enable Pay-by-Link toggle to ‘Enabled’.
When disabled, the option to create payment links from the new transaction form is removed. Any outstanding and active payment links will remain active.

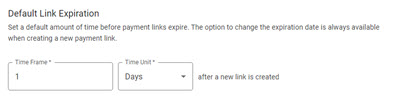

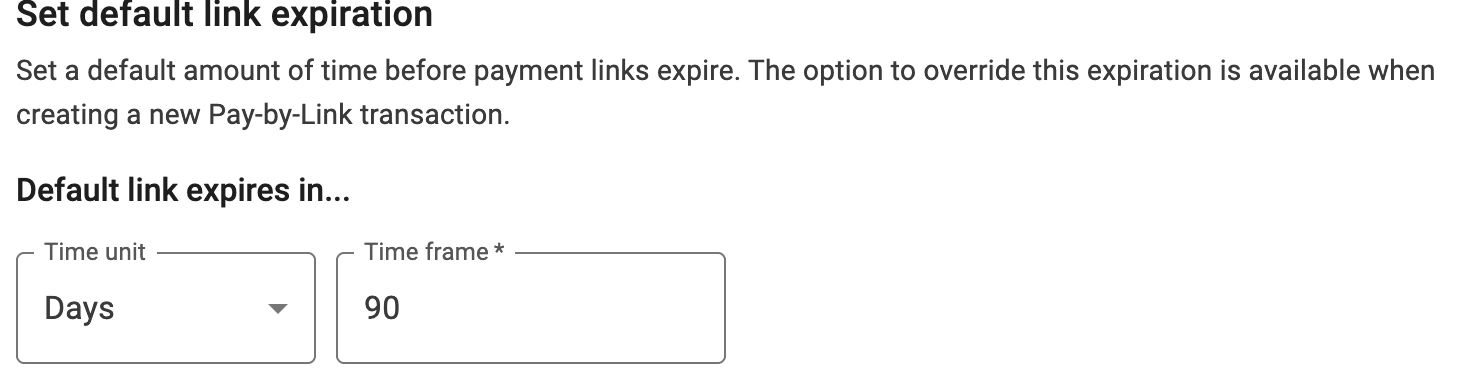

Optional: set a default link expiration if you want your payment link to expire within a specific timeframe – the default is 90 days.

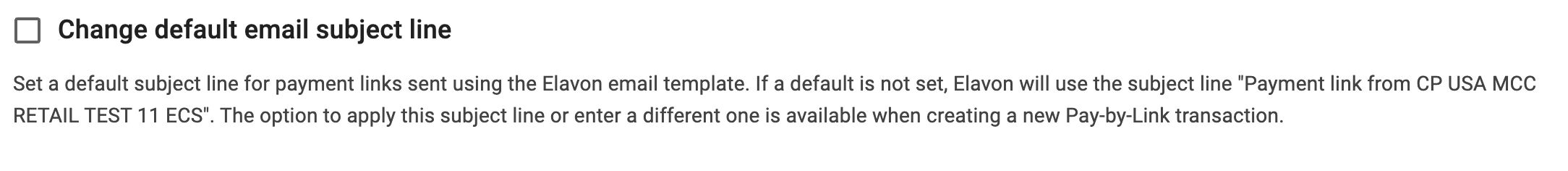

Optional: set a default email subject line if you want all your pay-by-link emails to have the same email subject line. You are able to edit or replace the default subject line each time you generate a new pay-by-link email.

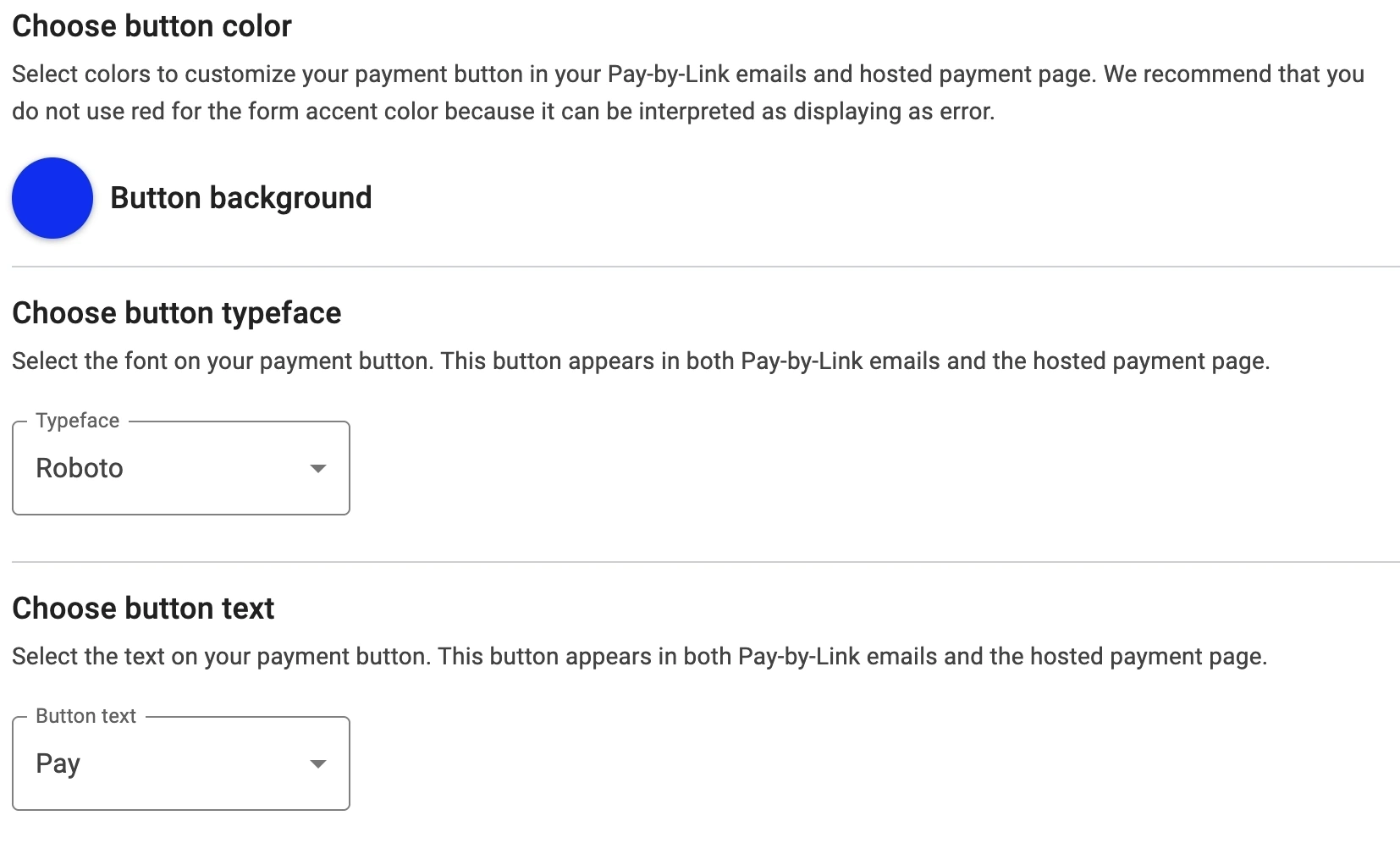

You can also customise the look and feel of the Pay-by-Link Email Template.

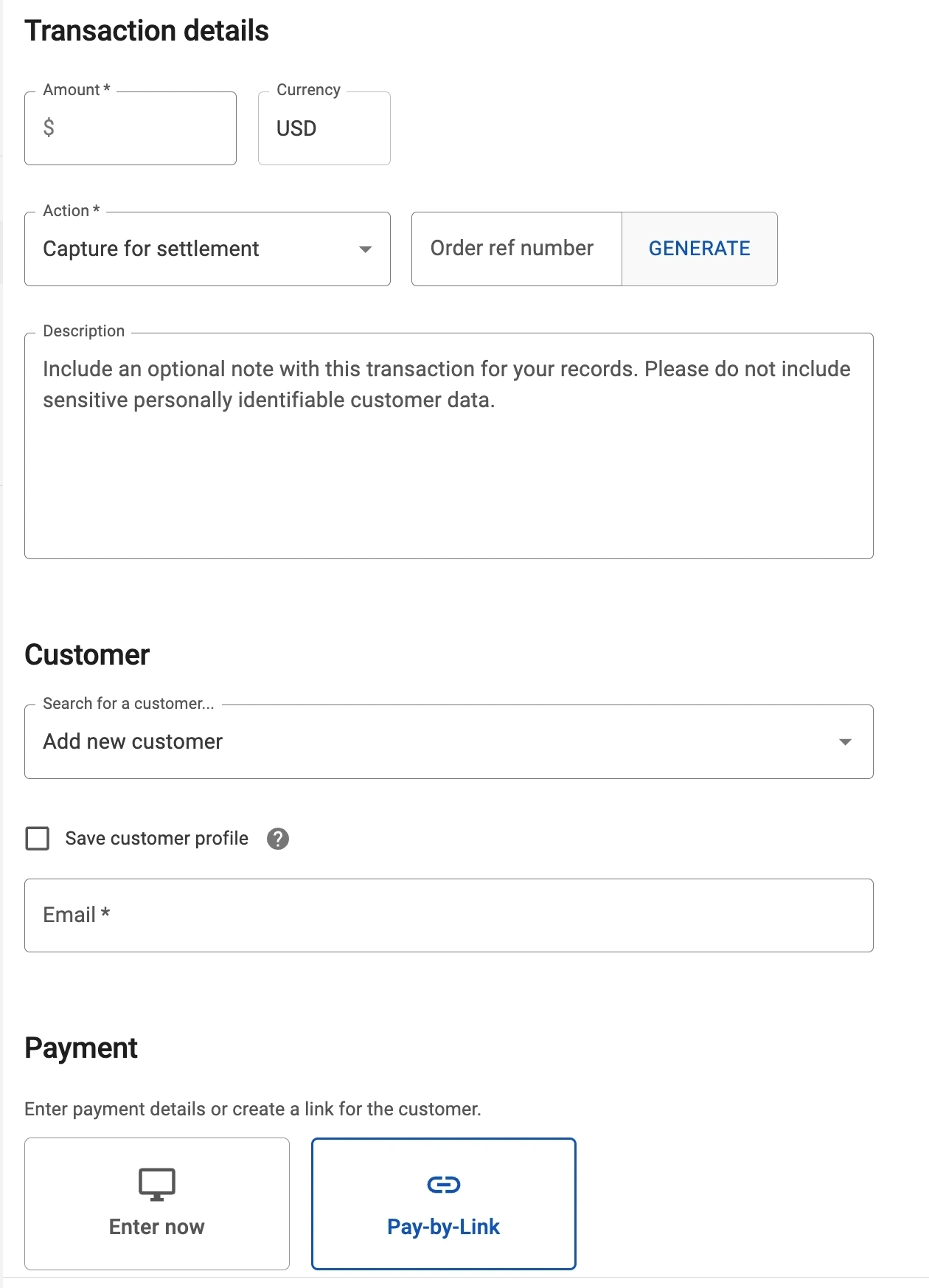

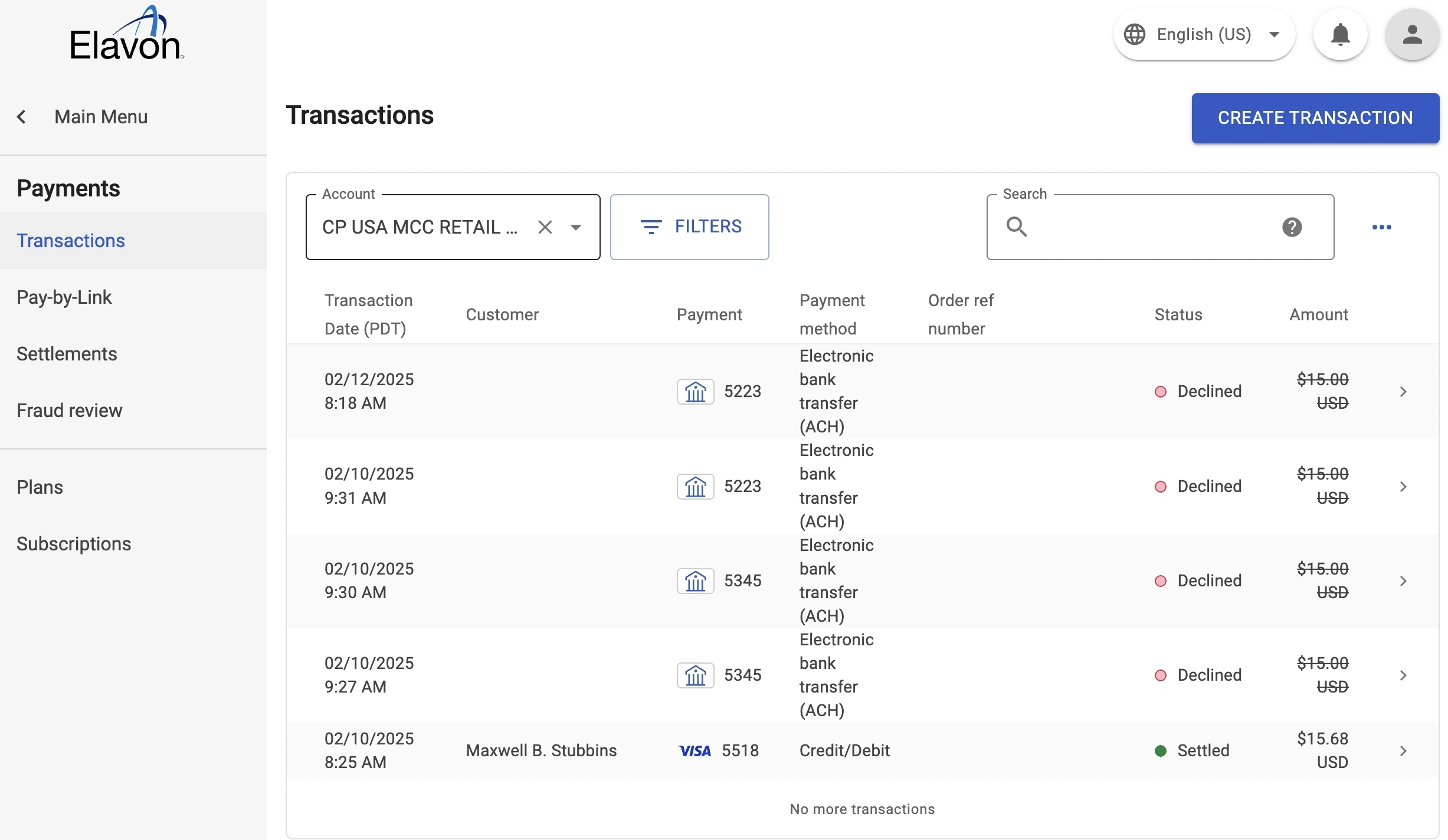

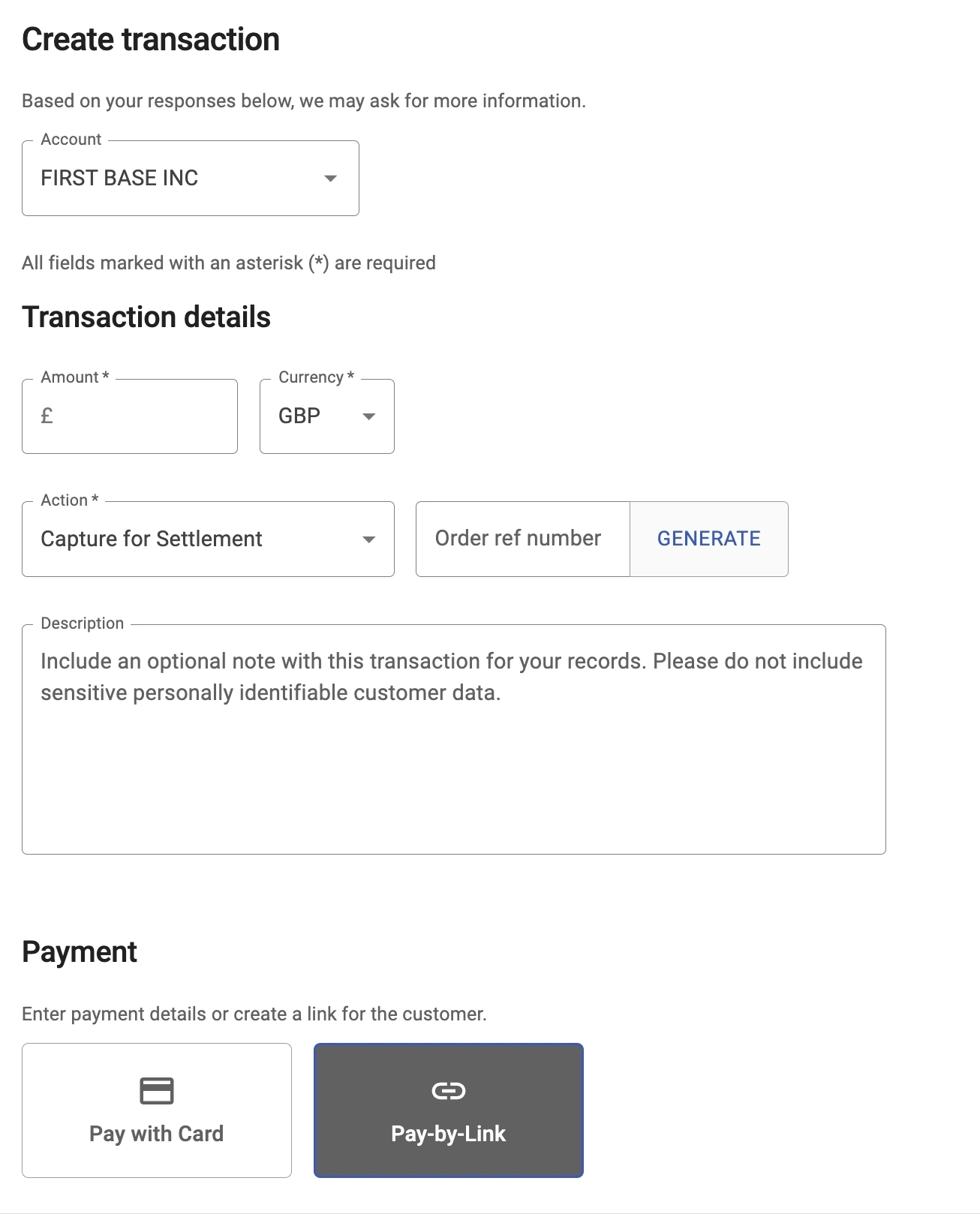

Click the ‘Create Transaction’ button in the top right-hand corner of the ‘Transactions’ screen to display the new transaction window:

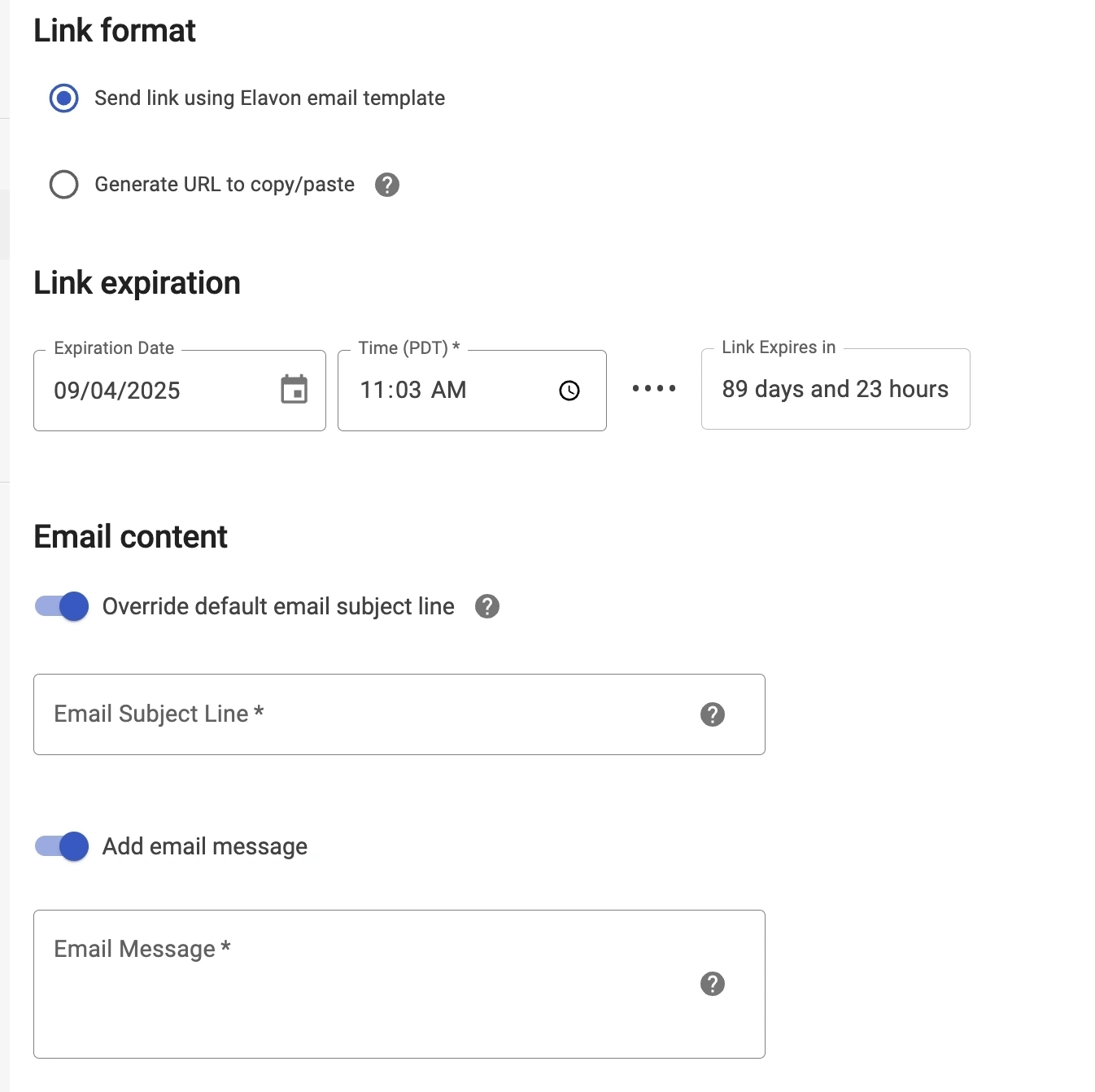

Select ‘Using the Elavon email template’ to send payment links via email directly from Elavon. Your default link expiry and email subject line settings will automatically be applied.
Click 'Send Email'

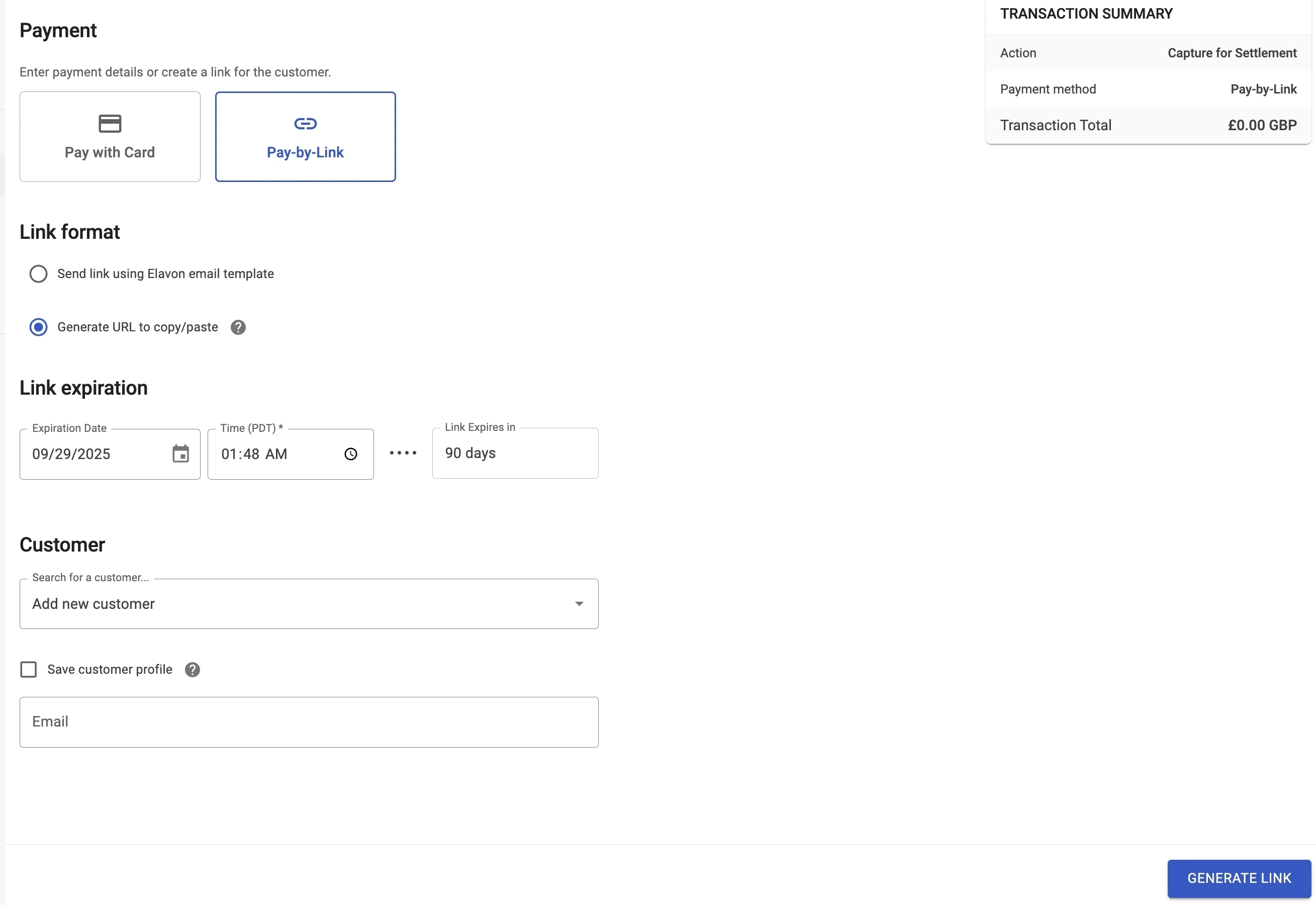

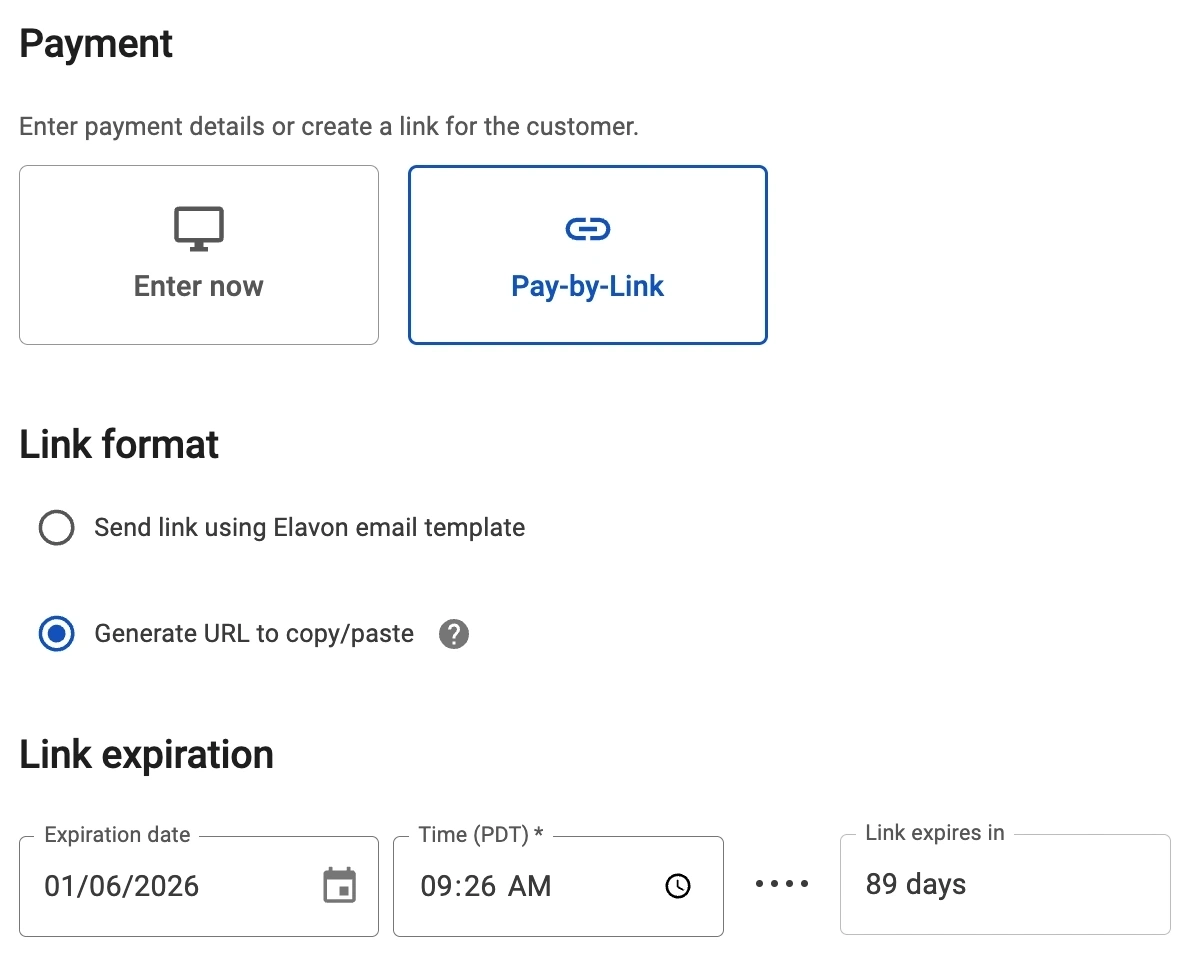

You can also generate a payment link URL which you can then paste into an SMS, add to social media, or paste into an invoice.

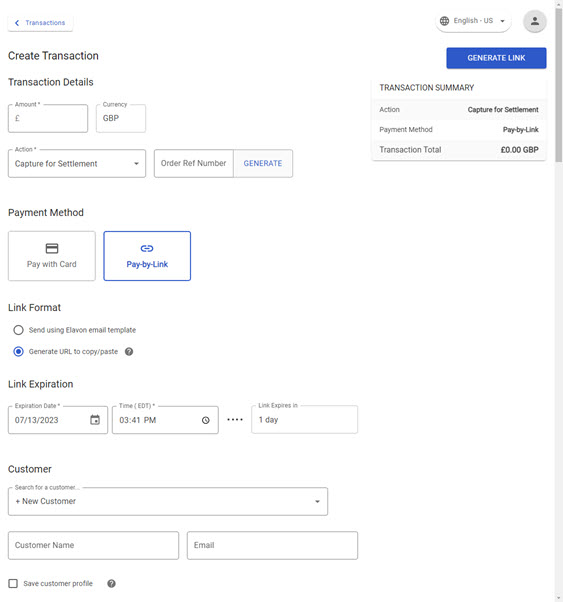

Enter the transaction details and select ‘Generate URL to Copy/Paste’.
A confirmation box will appear, select ‘Copy Link’ to copy the link to your clipboard.

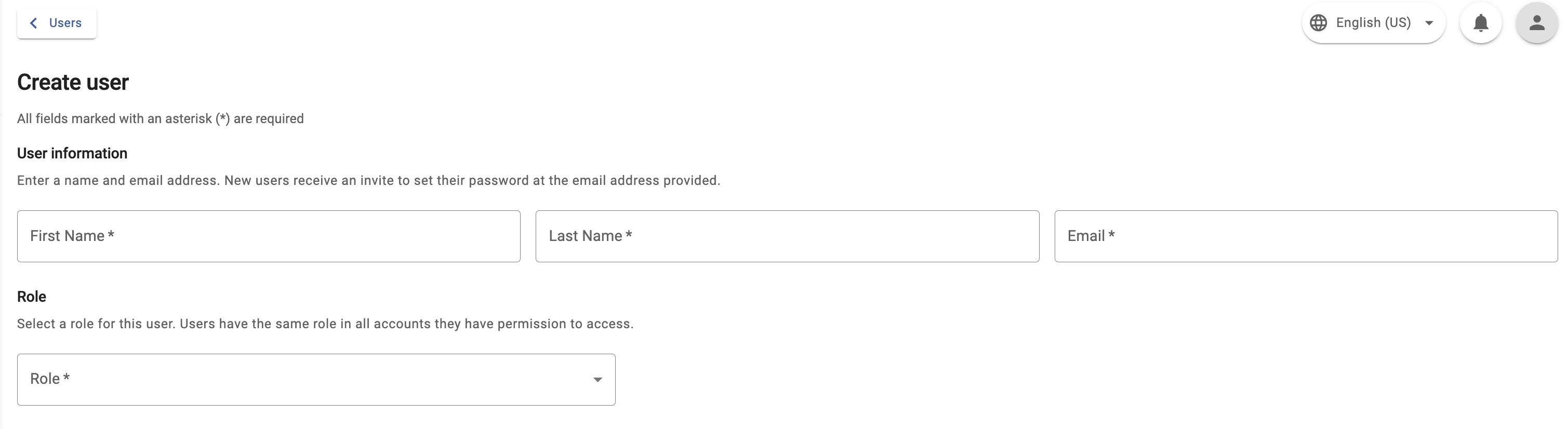

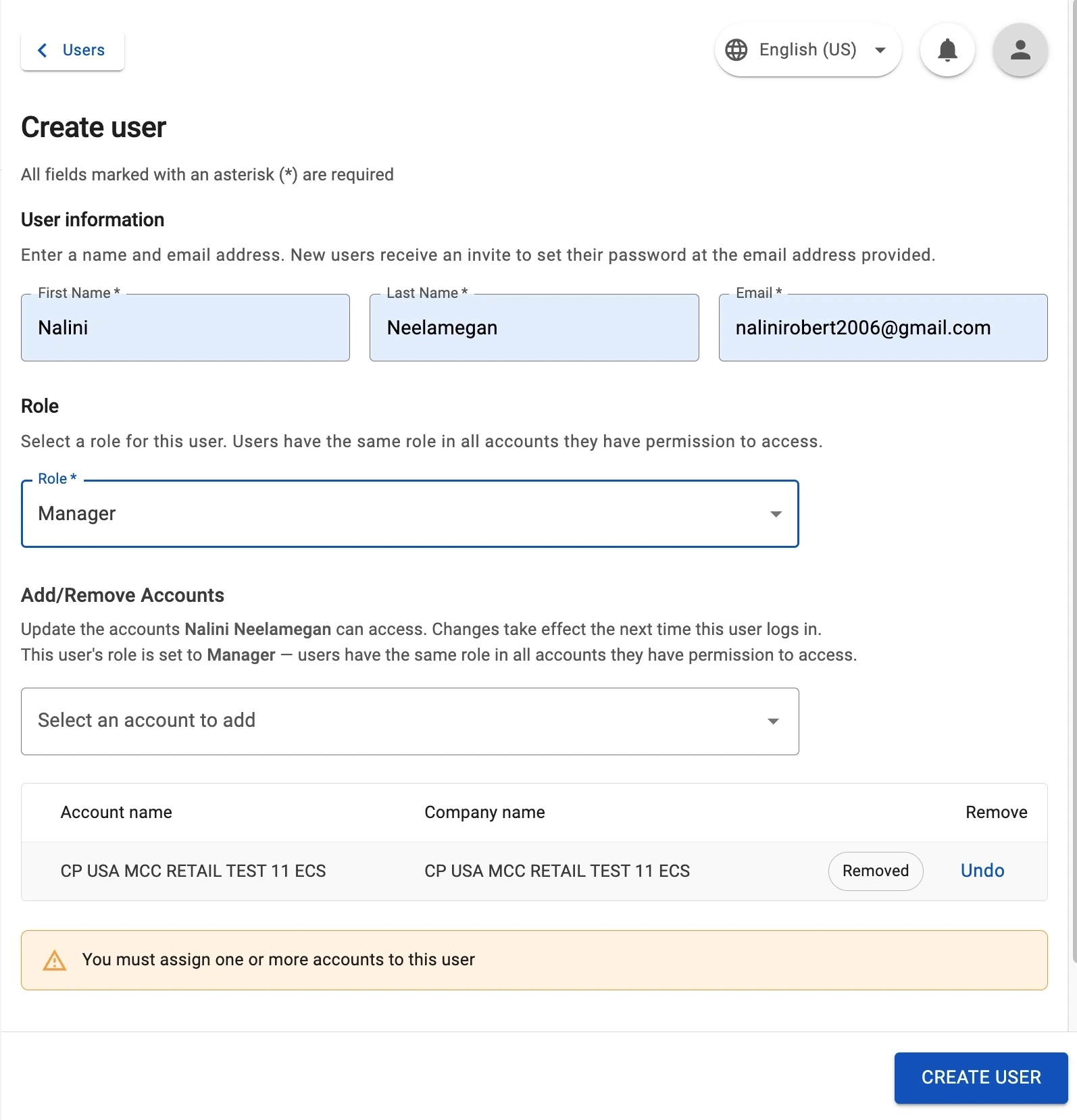

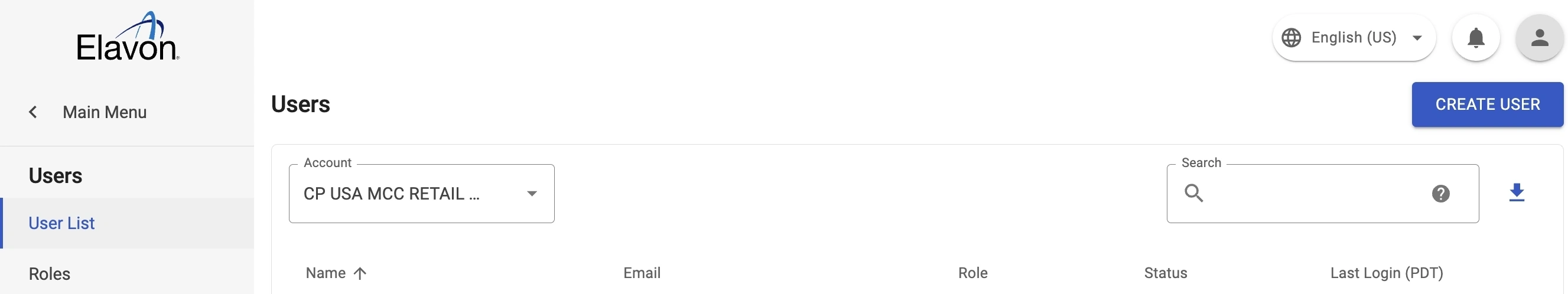

Enter the new user credentials – the email address will need to be verified by the new user and will become their user name to log in:
Select the required Role from the roles available:
Click ‘Create User’ again
The user will receive an email with a link to login for the first time

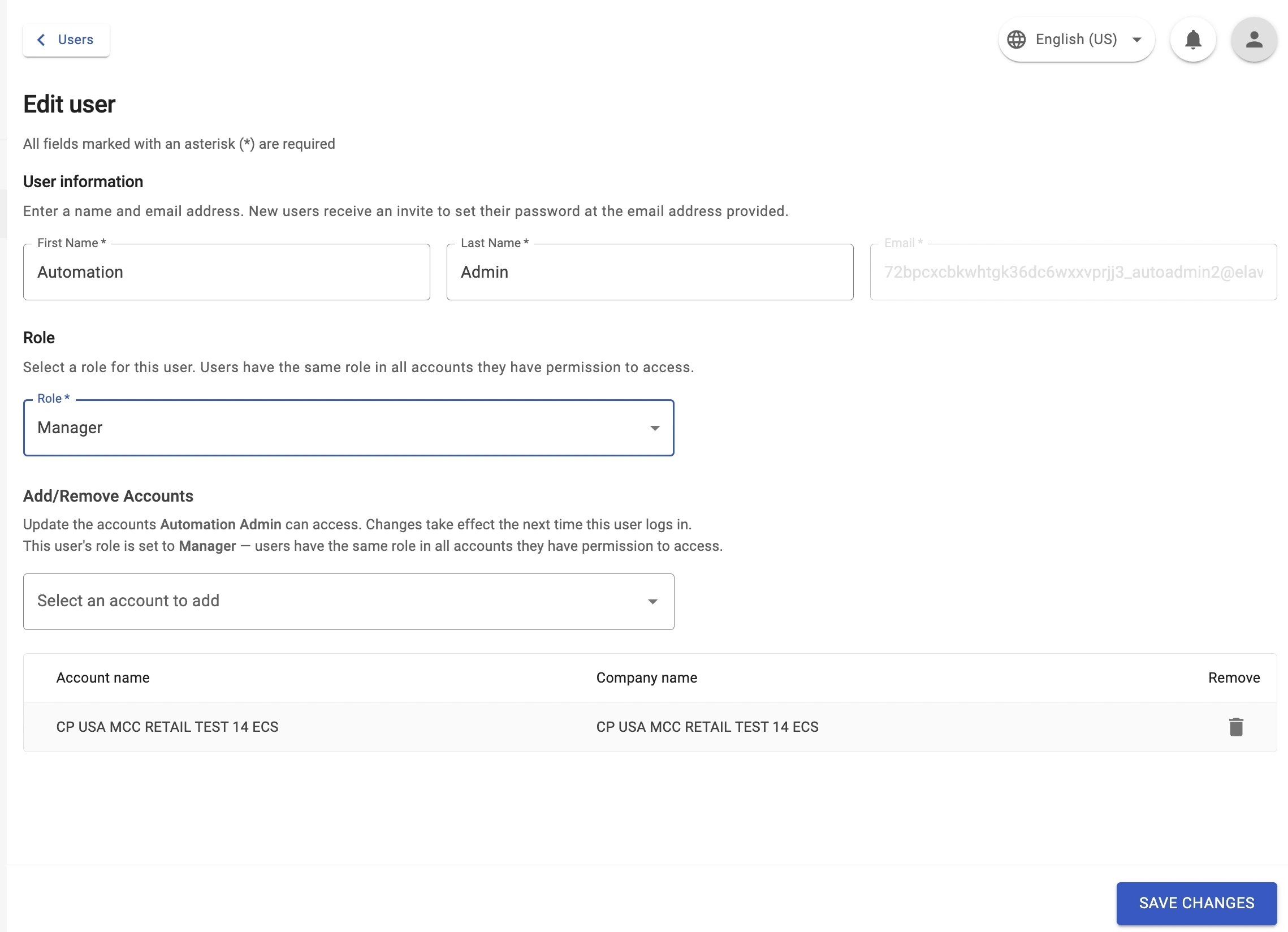

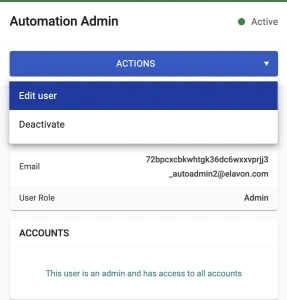

When you have finished making changes, click ‘Save Changes’ to confirm:
If a user no longer requires access to the back office, you can deactivate their login.

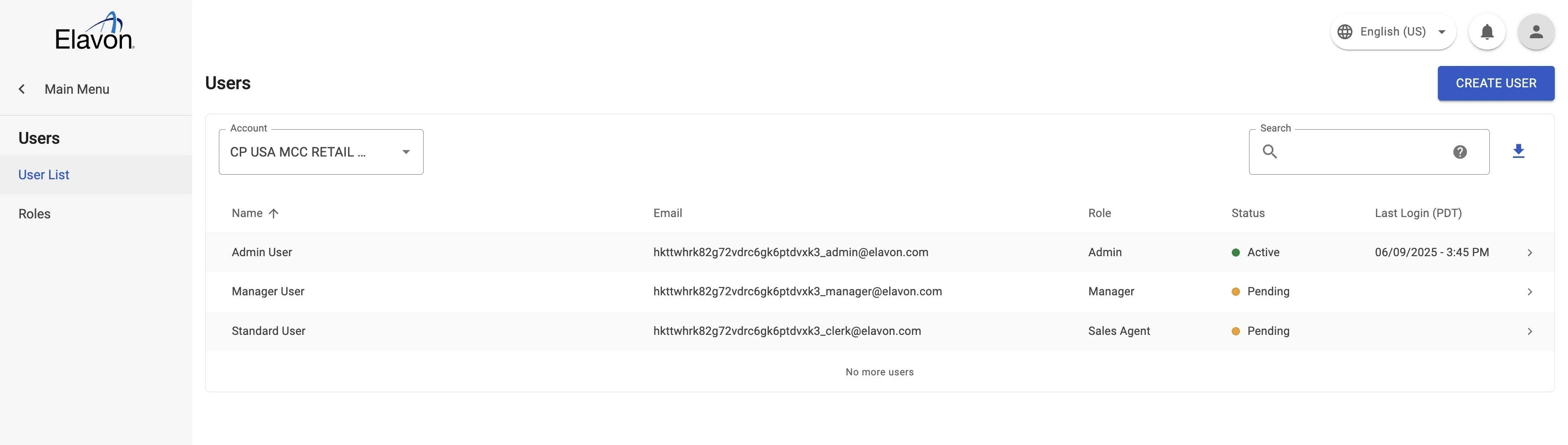

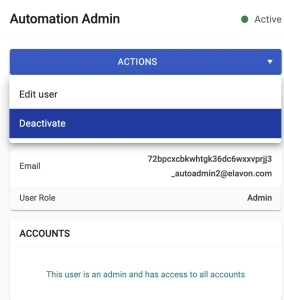

From the list of users, select the user, click ‘Actions’ and select ‘Deactivate’:

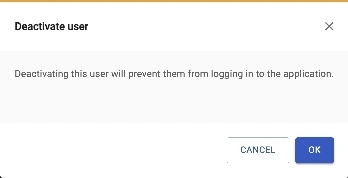

Confirm that you wish to deactivate the user by clicking ‘OK’:

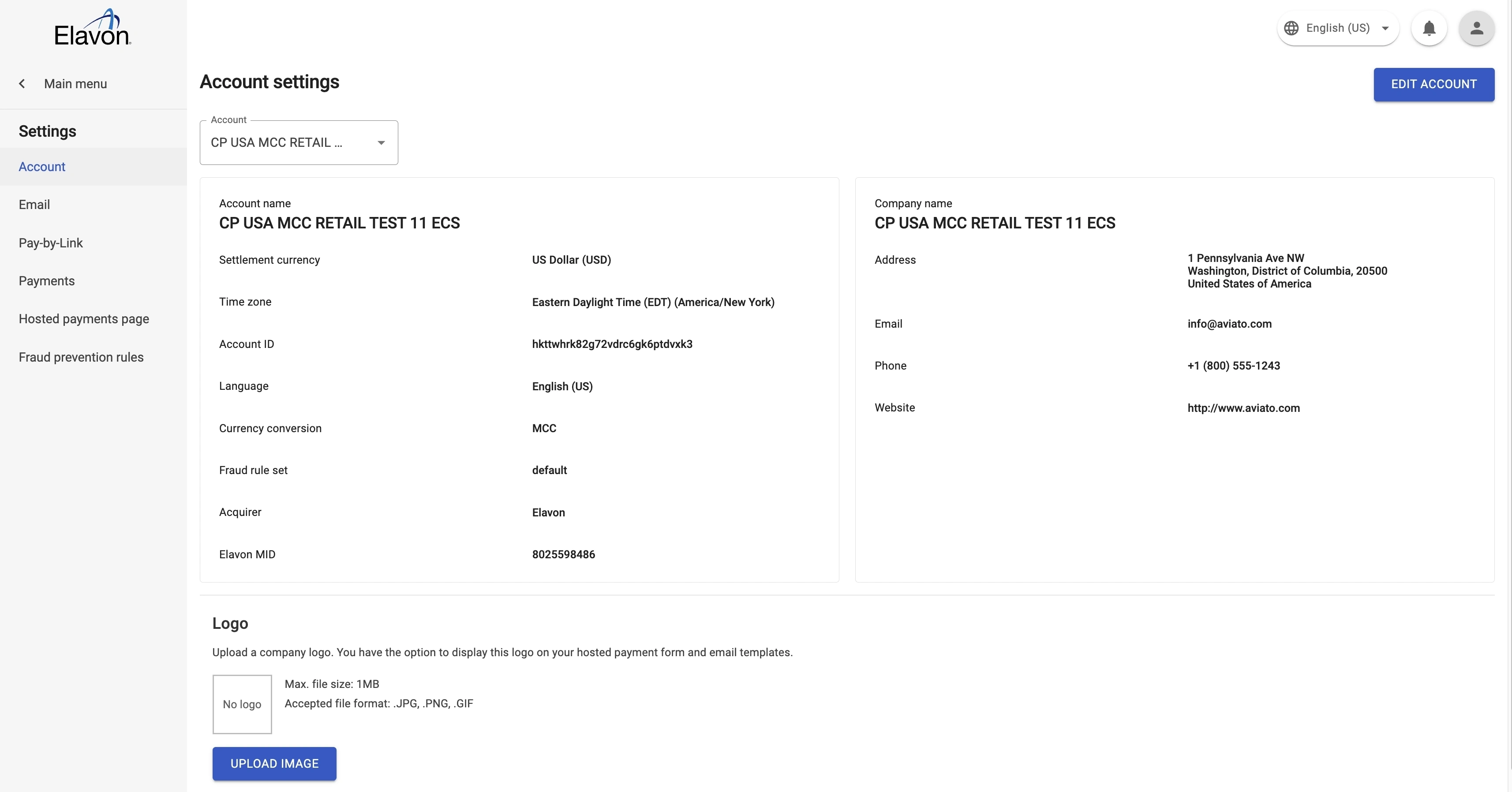

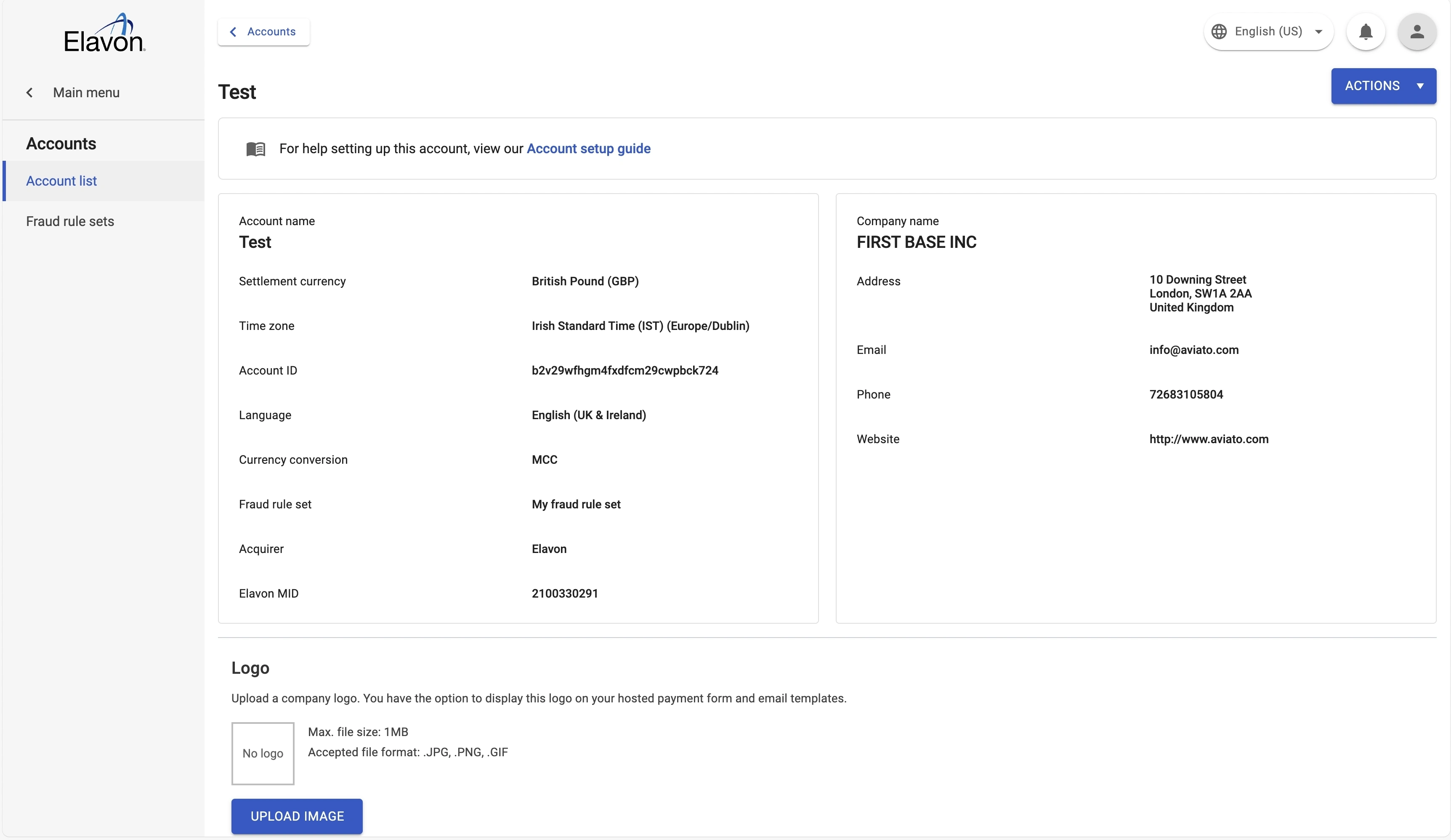

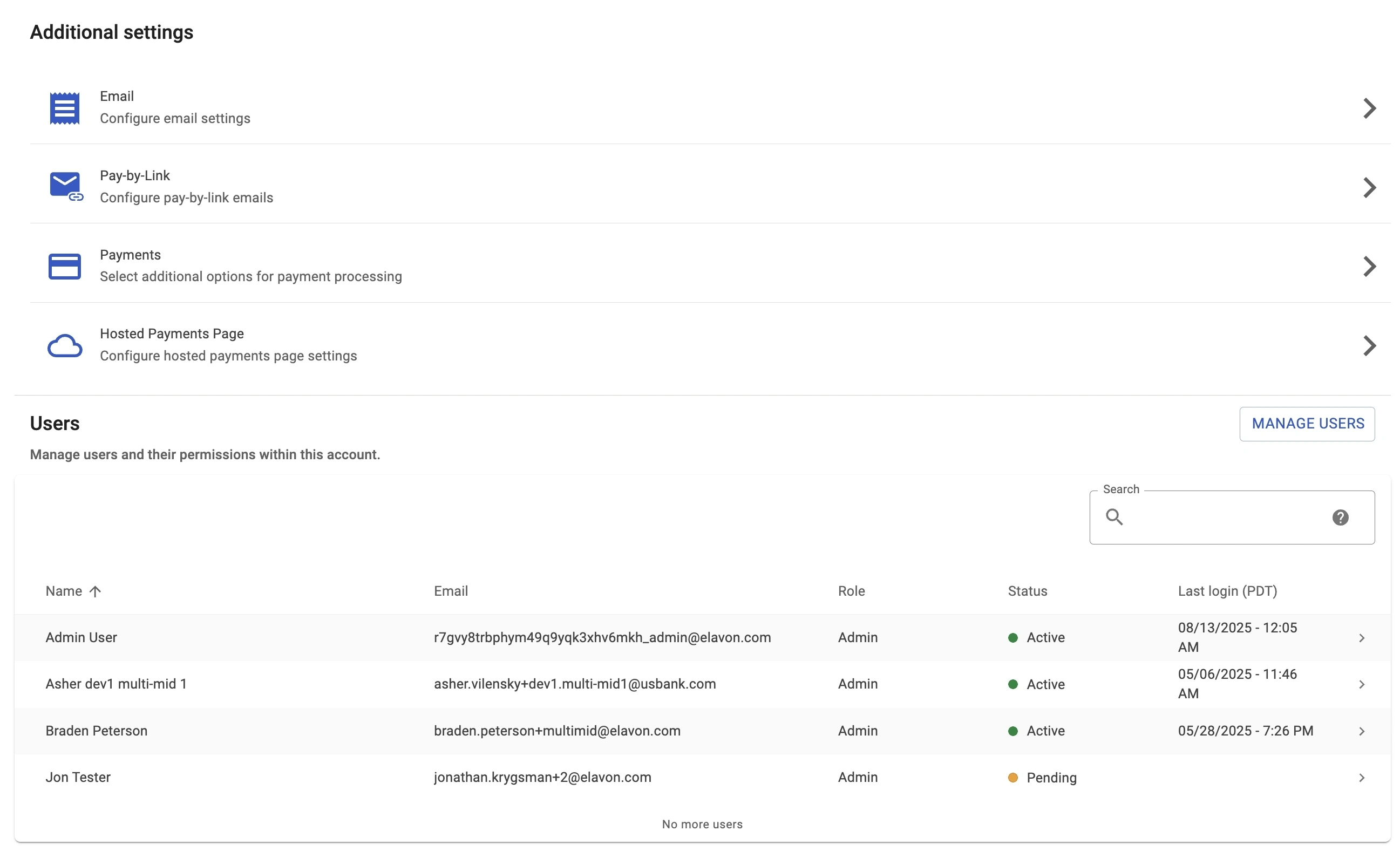

Click ‘Account’ to view your current Account Settings:
The company information is captured at the time of account setup and is not editable. If you need to make any changes to this, please contact your Elavon account manager and/or customer support.
You may wish to upload your company logo to display it on your hosted payment page
Click ‘Upload Image’:
Select and open the image file you’d like to use.
Your logo will now be displayed:

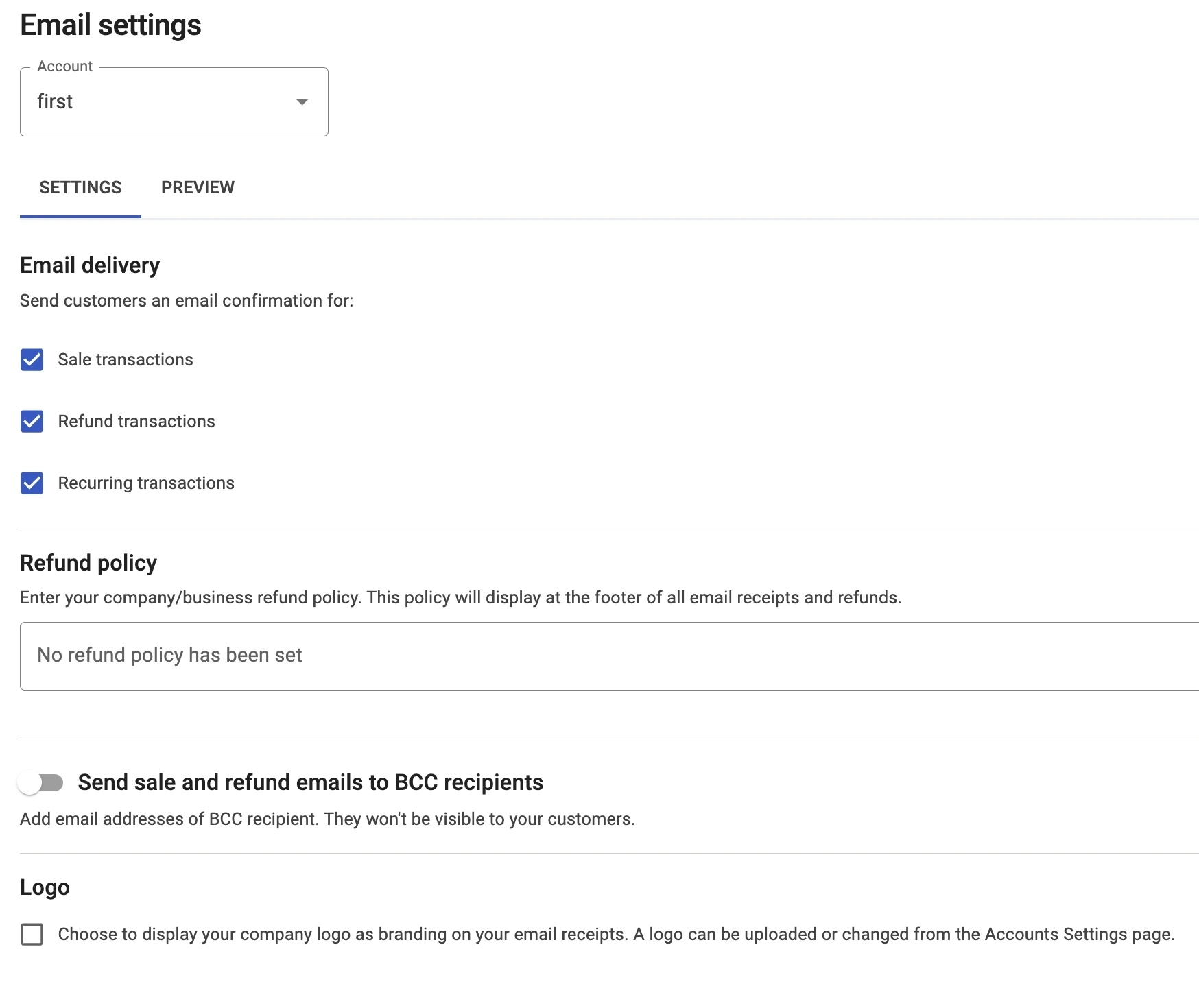

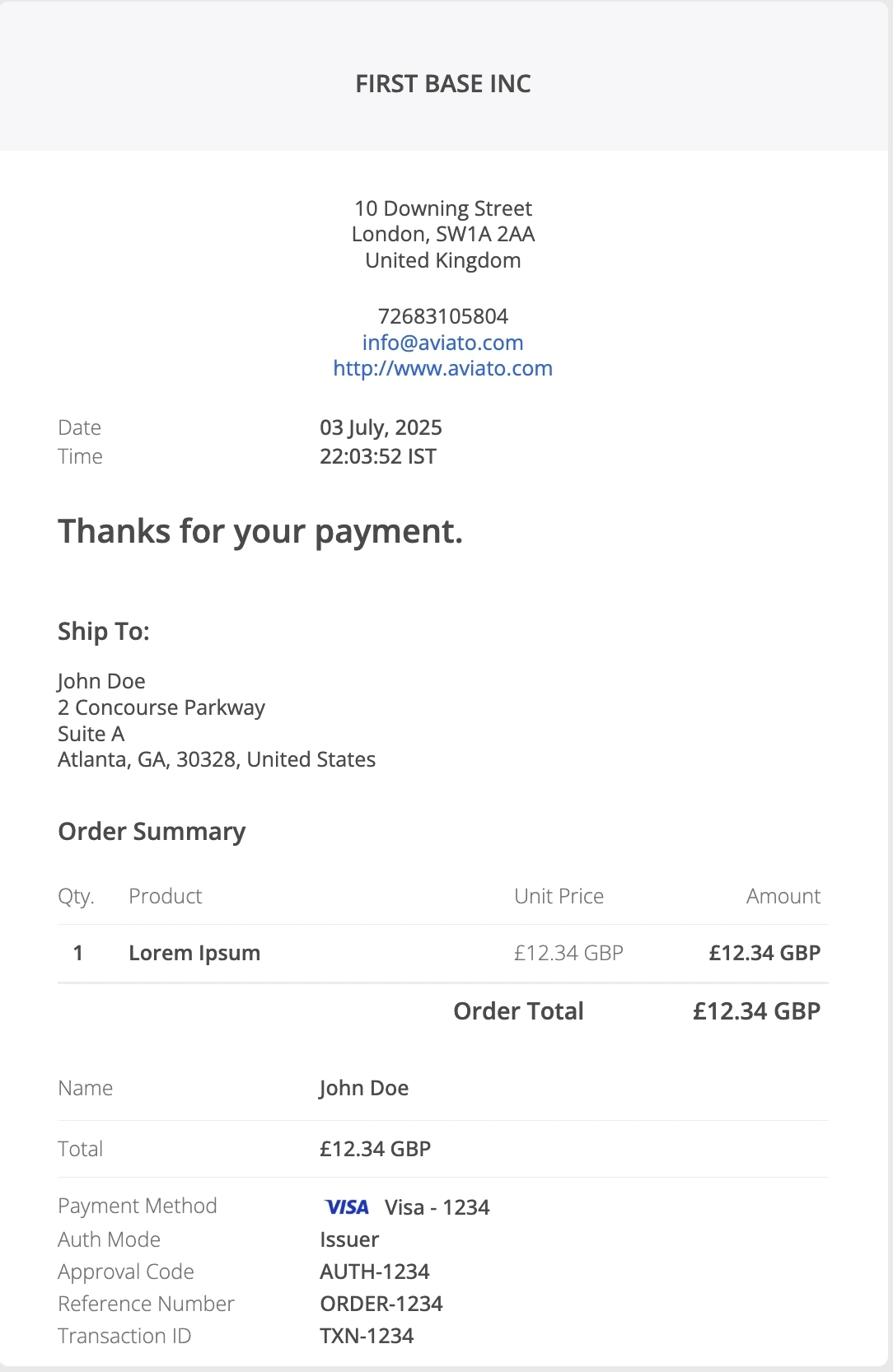

Click ‘Receipts’ to view your receipt settings and preview your receipt.

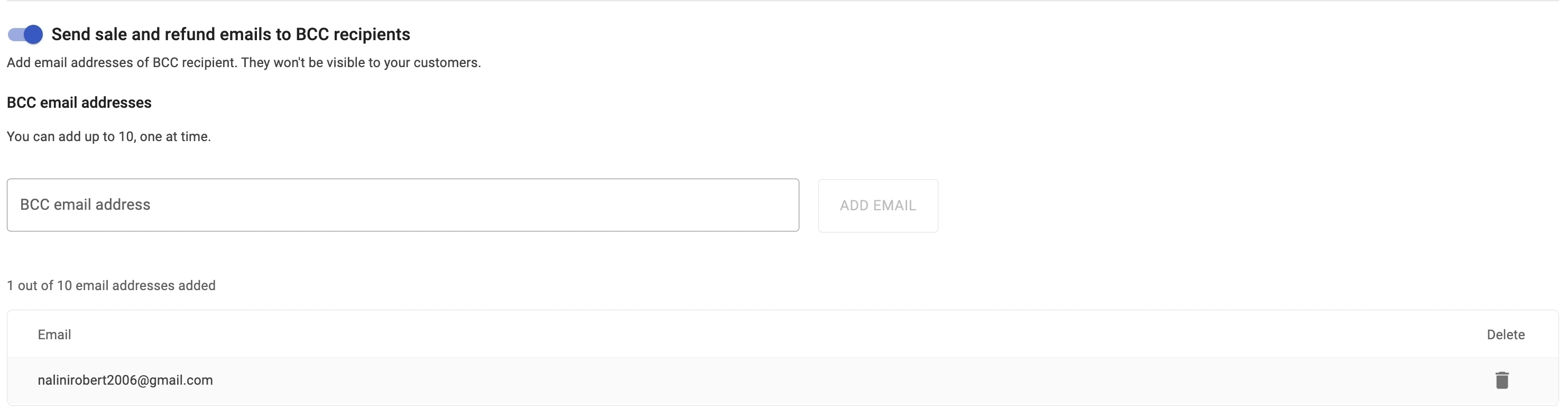

You can configure the ‘Receipt Delivery’ settings to select when you want to automatically send a receipt to your customers:
You can enter your own Refund Policy as per the example below, which will dynamically update in the Receipt Preview on the left:

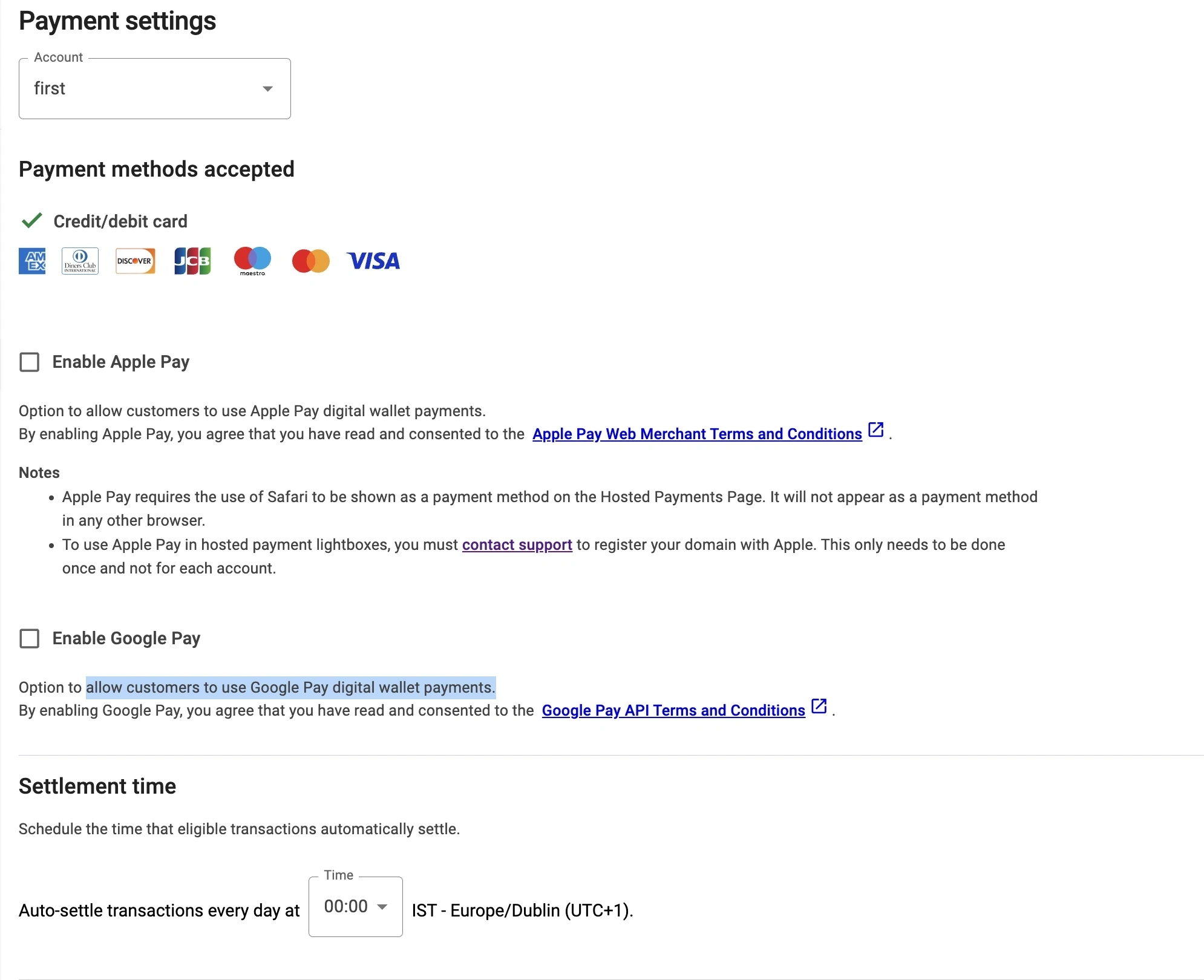

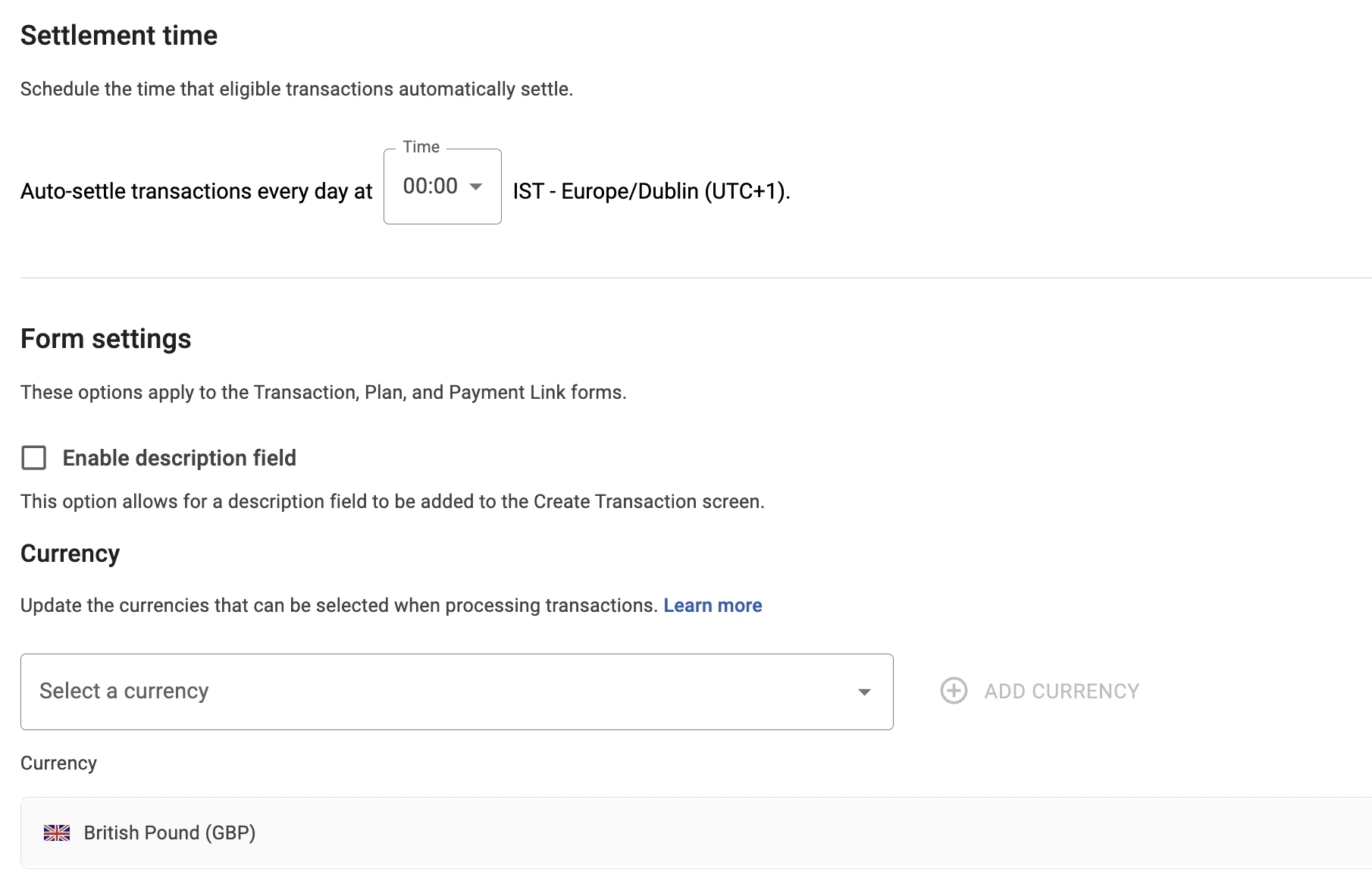

Select ‘Payments’ to configure the daily settlement time and set up currencies for MOTO transactions:
You can change the time to auto-settle your captured transactions by selecting a new value from the drop-down list:
You can add currencies that can be accepted for MOTO transactions in the virtual terminal, based on the set-up of your account with Elavon:

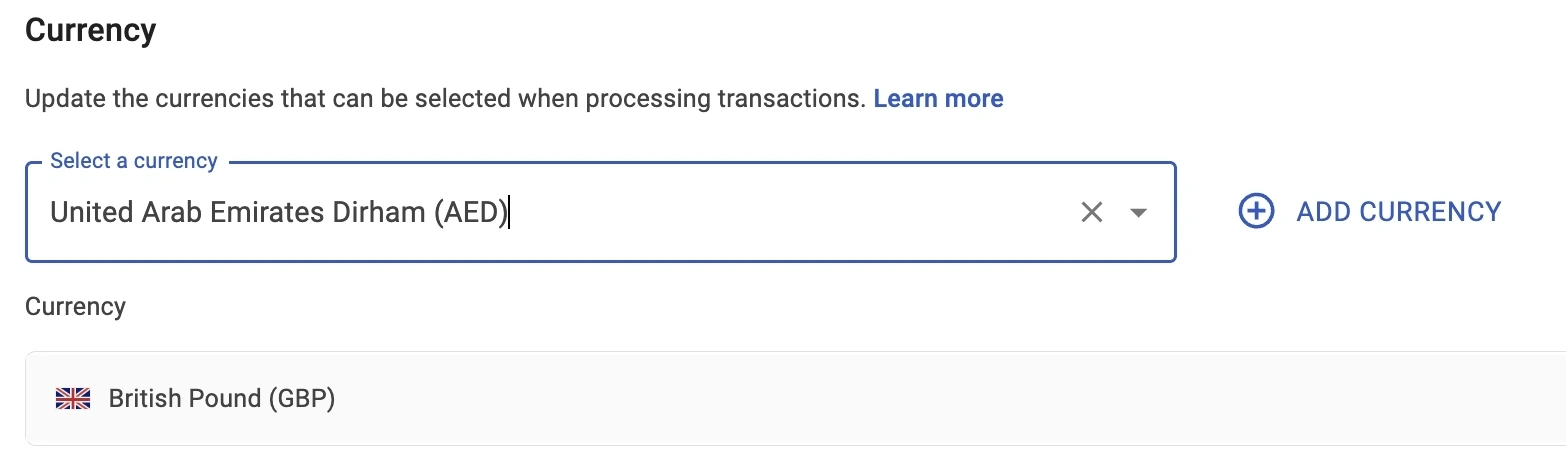

To add a currency, select a currency from the drop-down list and click ‘Add Currency’. Repeat for each currency you wish to add.

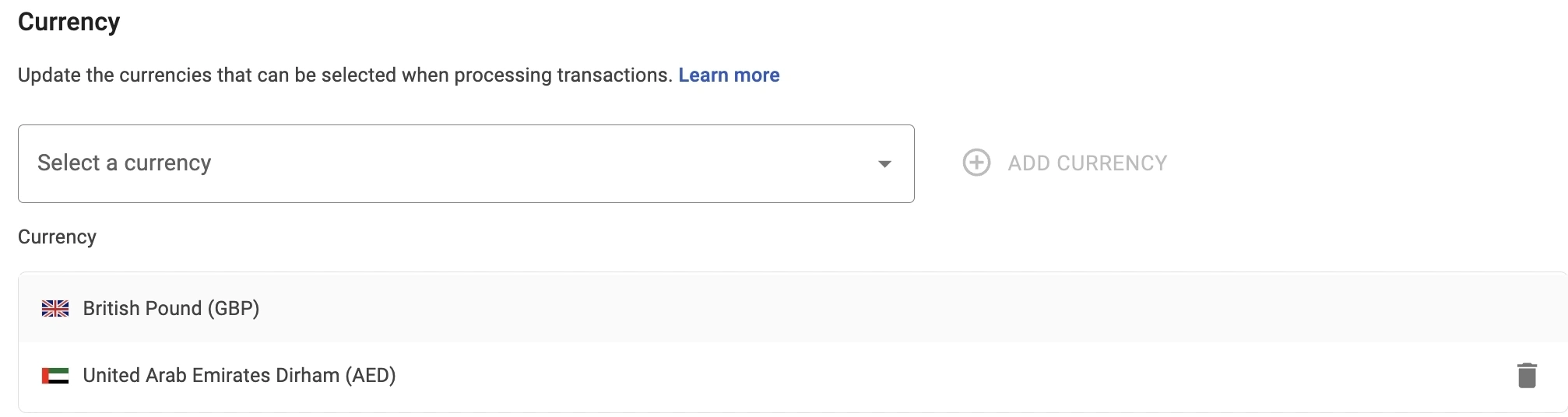

To remove a currency, click the delete icon corresponding to the currency and confirm your selection.
If you make any changes to your payment settings on this screen, make sure you select ‘Save’ before moving on to another screen.
You will need to contact the Converge support team if you wish to make changes to the ‘Cards Accepted’ list.

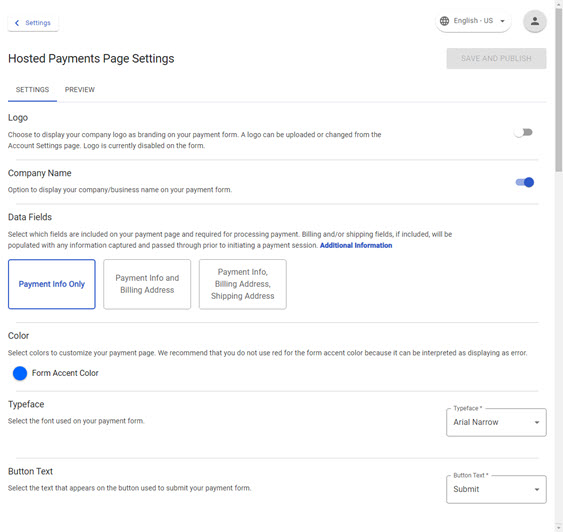

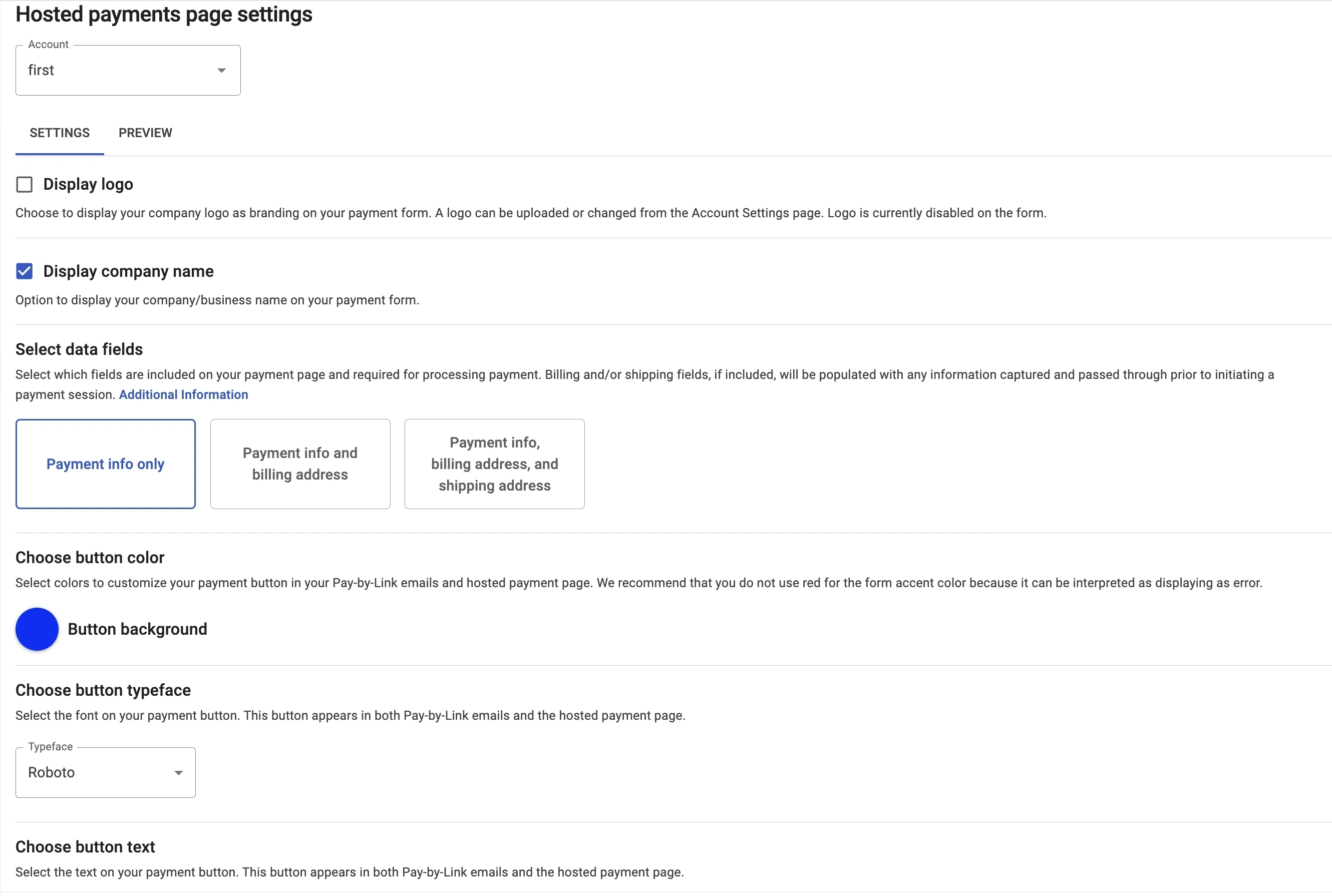

Click ‘Hosted Payment Page’ to make changes to elements of the hosted payment page:
Make sure you click 'Save and Publish' to save your changes.
The built-in fraud prevention tools allow you to define block lists and configure rules to help mitigate the risk of fraud.
Please be aware that if a fraud rule triggers on a transaction made using a non-card payment type, e.g., online banking, that the transaction will decline even if the rule result is set to Review. These transaction types cannot be held for review.

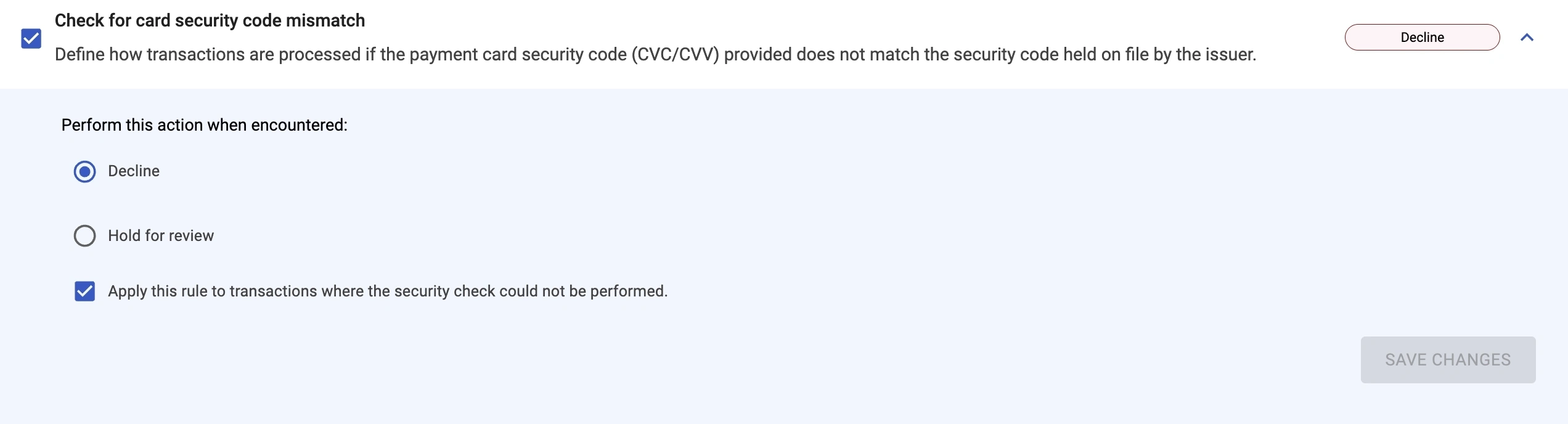

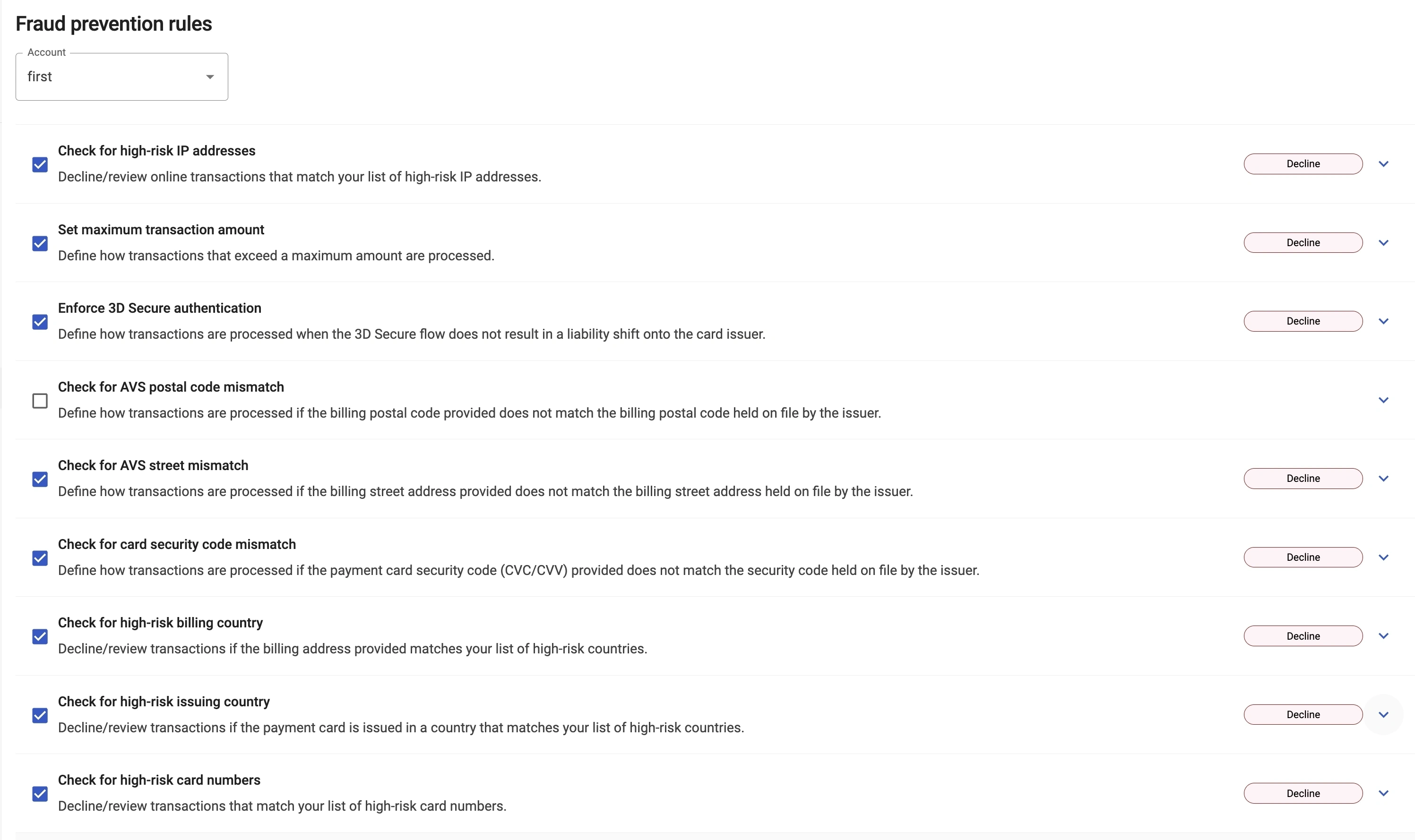

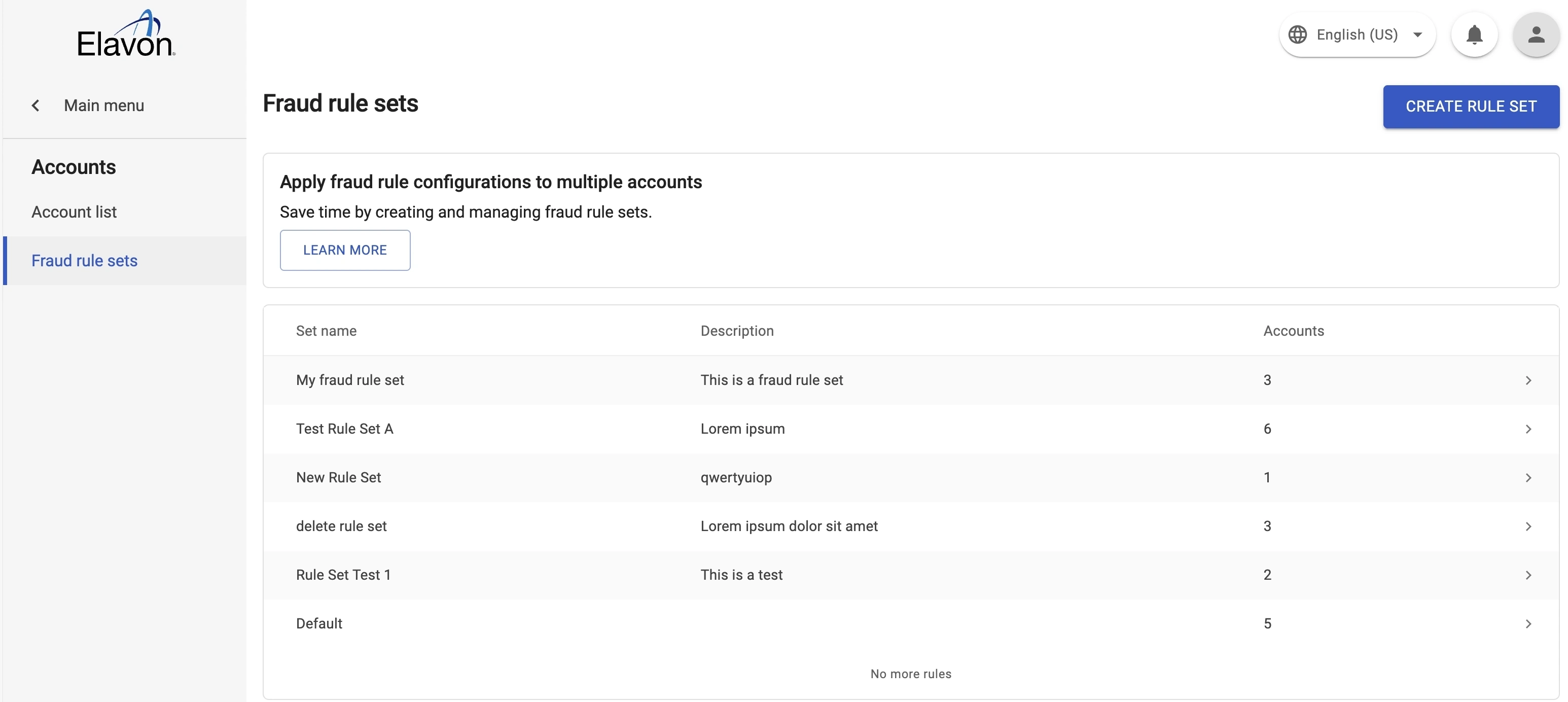

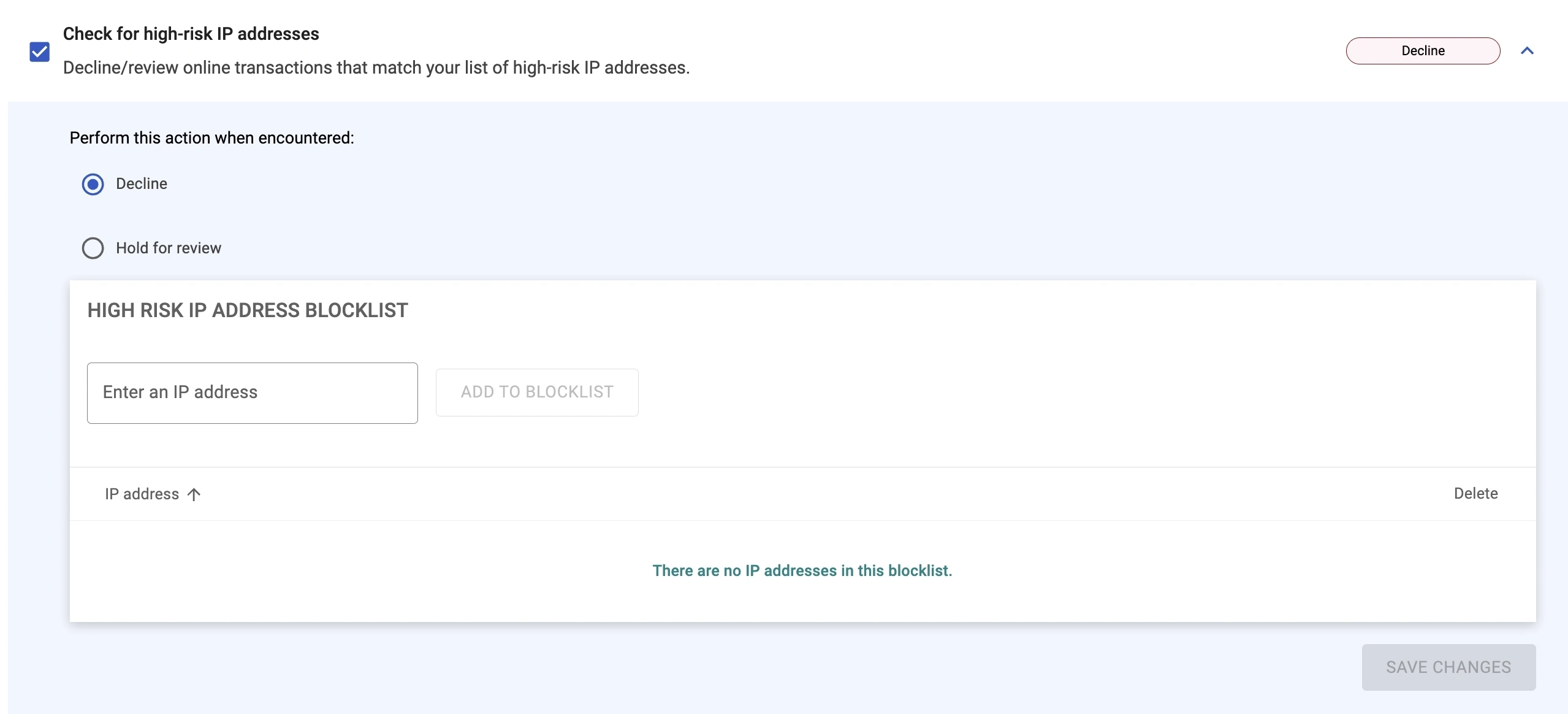

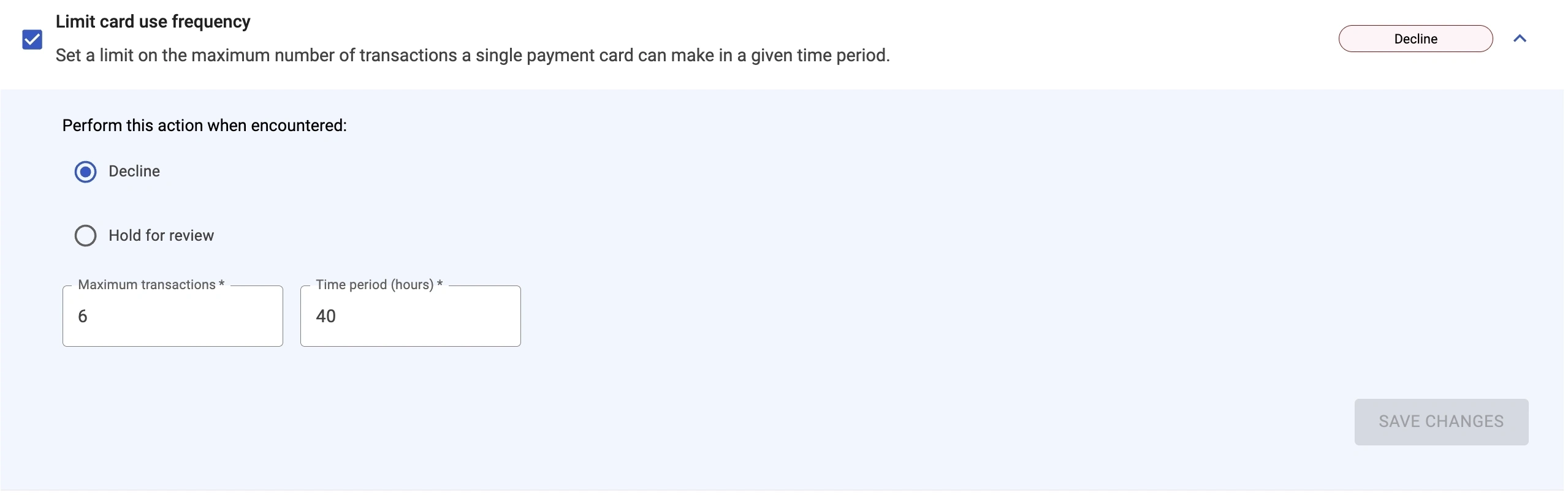

Click ‘Fraud Prevention Rules’ to access the Fraud Management rules – you will notice that some rules are active by default. You may choose which rules to use and configure according to your business requirements:

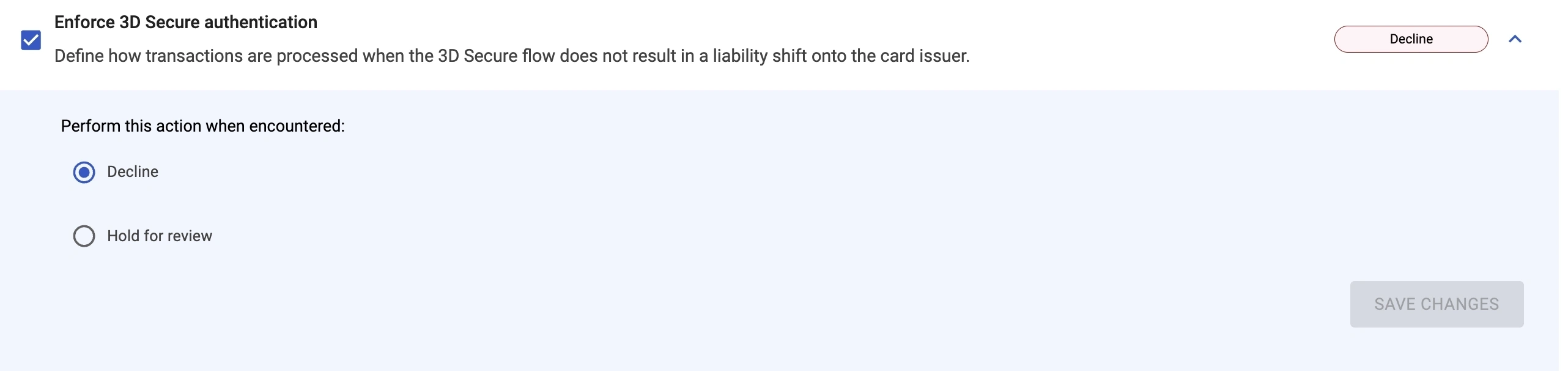

3-D Secure authentication – if you believe you have a business requirement to disable/set this rule to inactive, please be aware your business will be liable in the event of a chargeback. To turn off 3DS2, click on the rule to change the toggle switch to ‘Disable’.
Under the Second Payment Services Directive (PSD2) regulations, most ecommerce transactions throughout Europe will soon require Strong Customer Authentication (SCA). EMV 3DSecure is the industry standard method of providing SCA on card payments. By choosing to deactivate 3DS on your Converge account, you will be liable in the case of chargebacks raised by card issuers and at risk of having transactions declined by them. There may also be fines imposed by the card schemes (Visa and MasterCard) for excessive declined transactions.

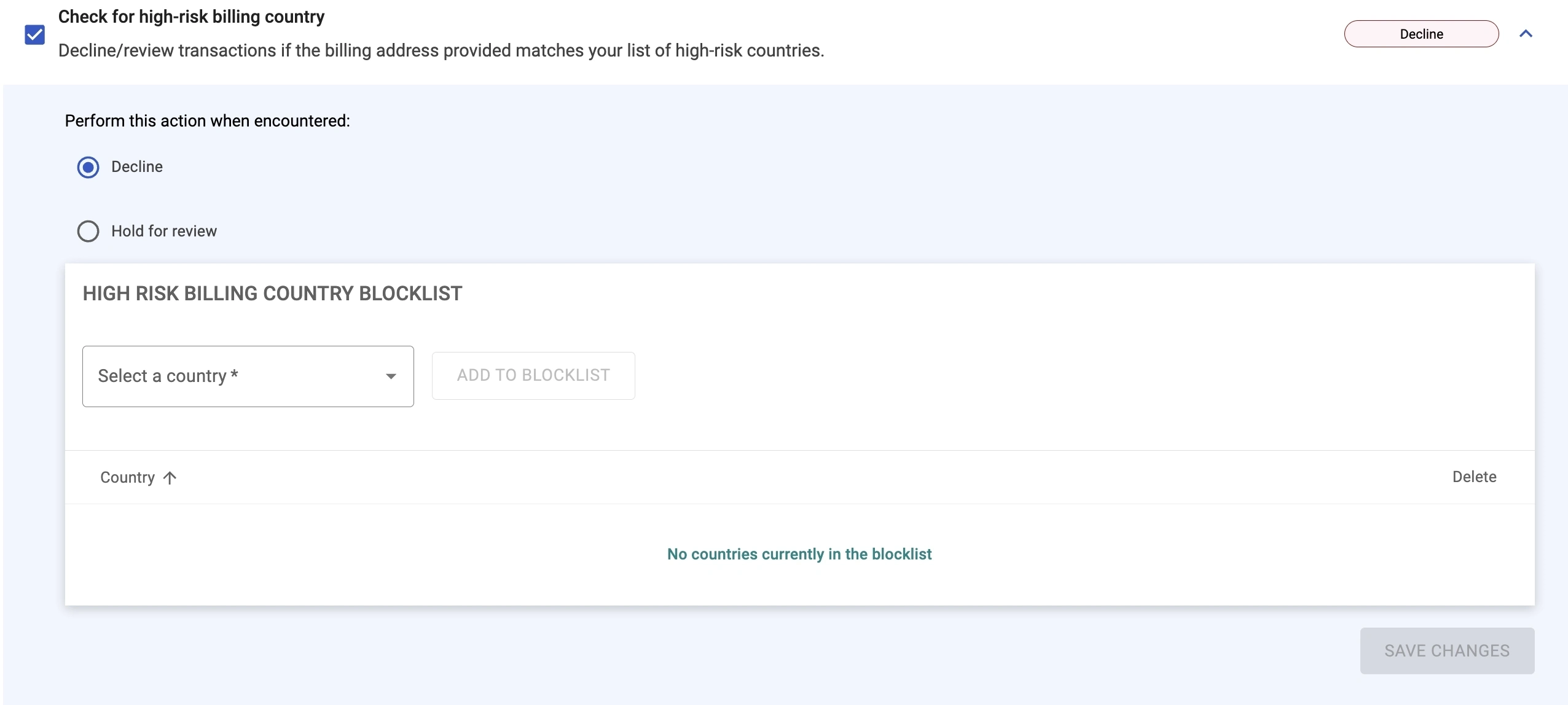

Select the country to block and click ‘Add’ – repeat for each country you wish to block then click ‘Apply’.

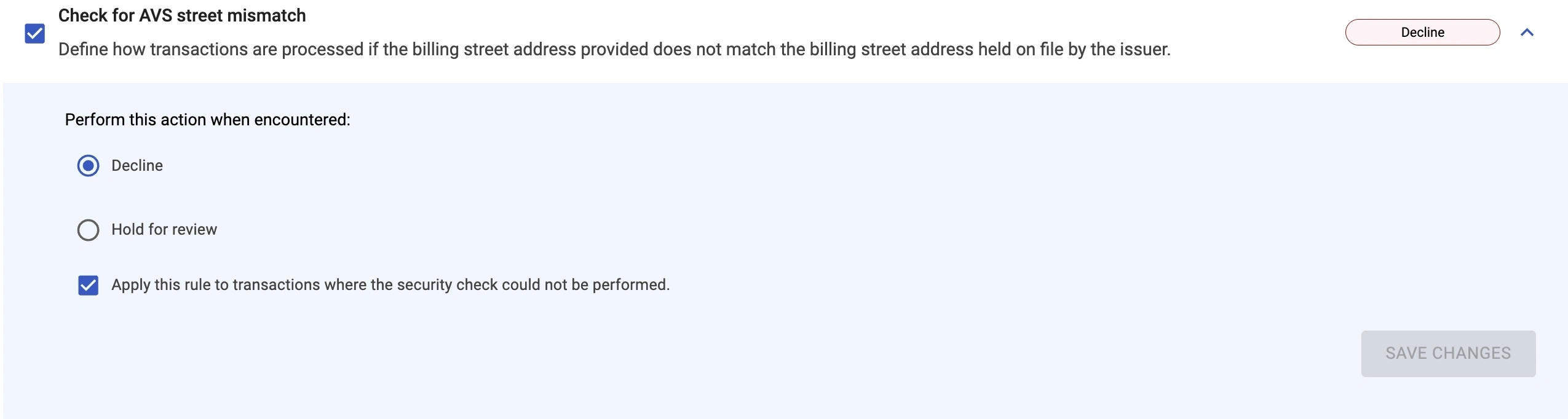

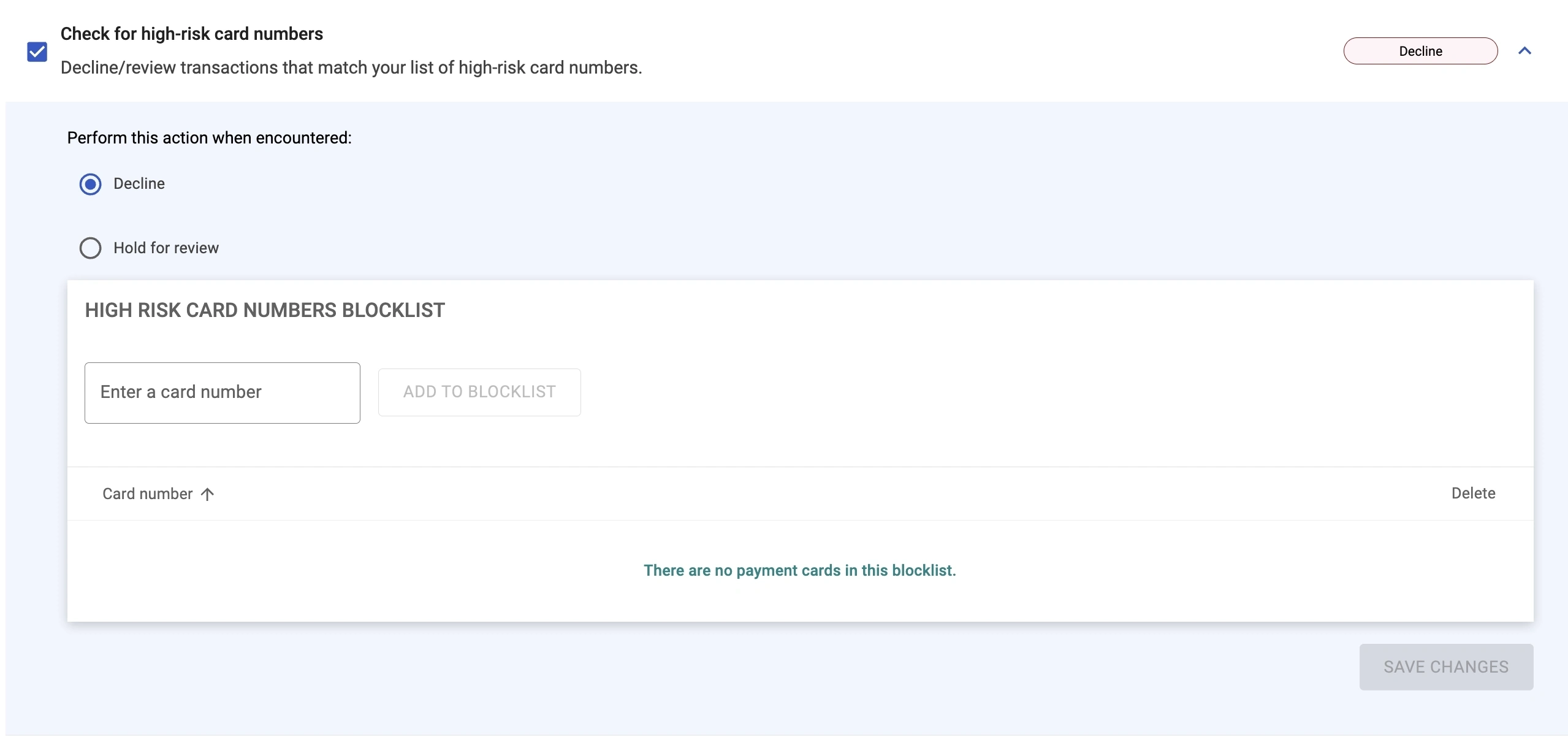

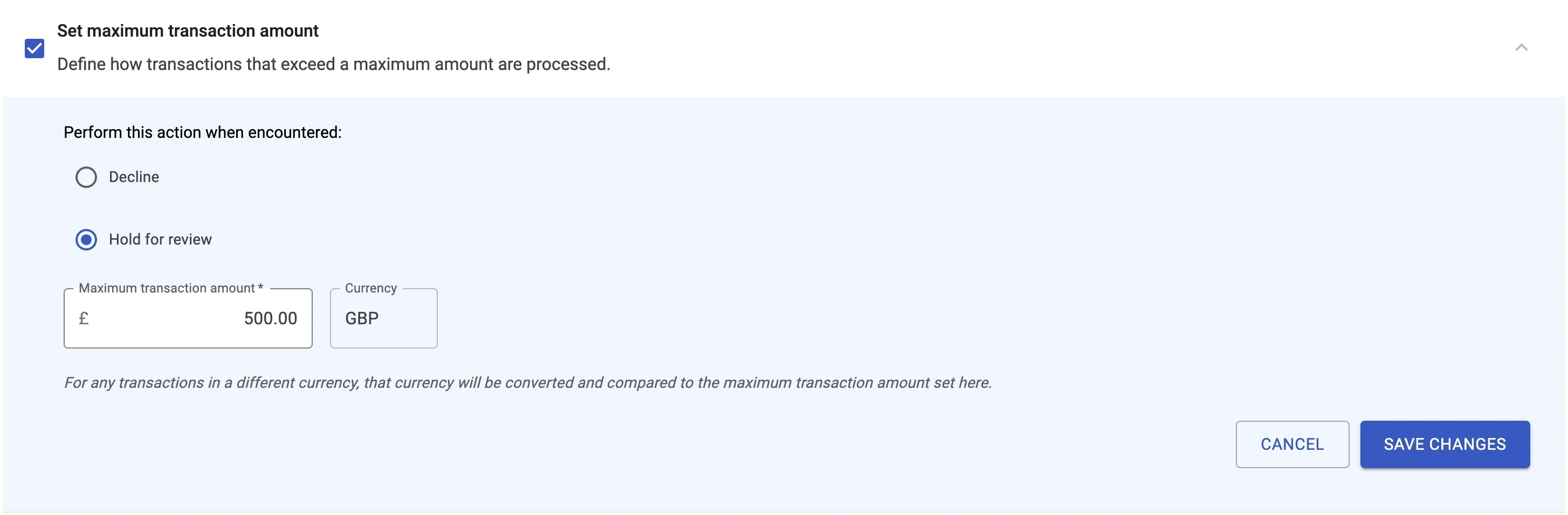

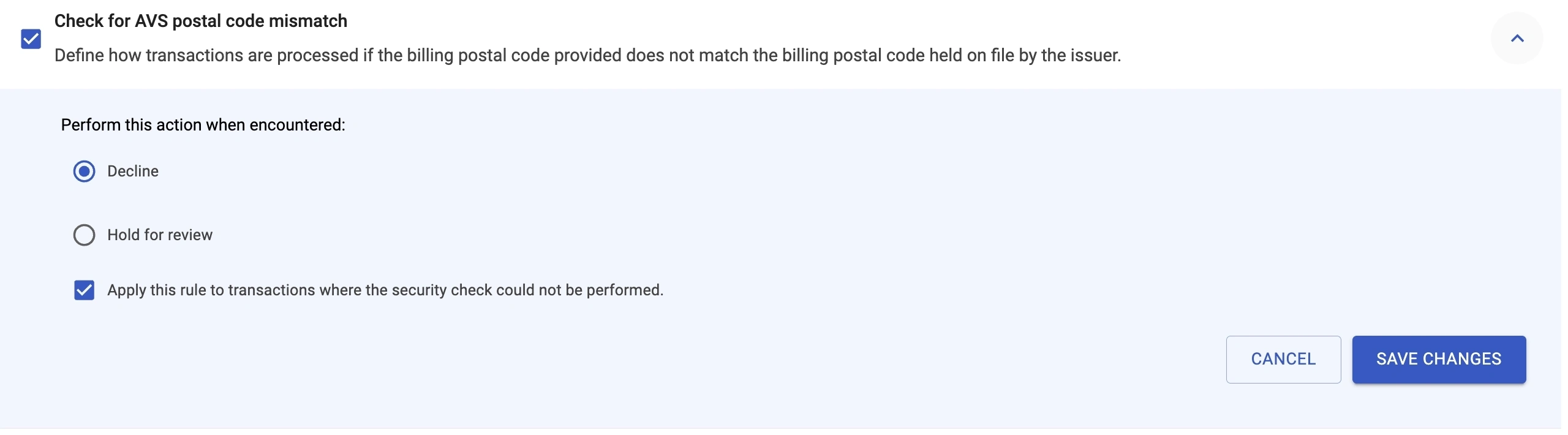

From the Rule Definition drop down, decide whether you wish to ‘Decline’ or ‘Review’ transactions where the Billing Country is in the Blocklist

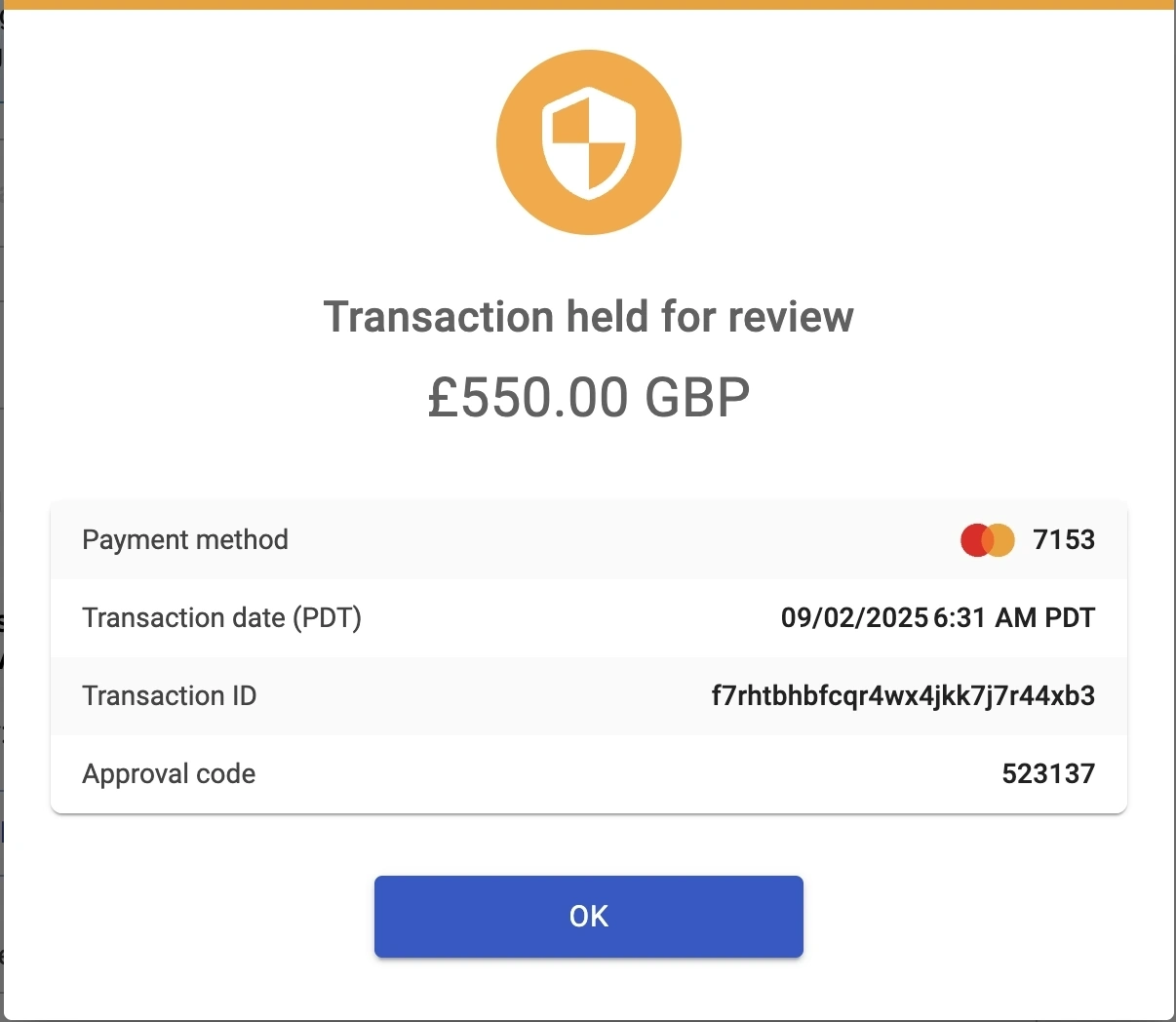

Where a transaction has failed a fraud rule, and that rule has been set to ‘Review’, the transaction will be authorised, but not automatically captured. Instead, in addition to appearing in the Transactions list, it will appear in the ‘Fraud Review’ list.
Please be aware that if a fraud rule triggers on a transaction made using a non-card payment type, such as BLIK or online banking, that the transaction will decline even if the rule result is set to Review. These transaction types cannot be held for review.
To view transactions for review:

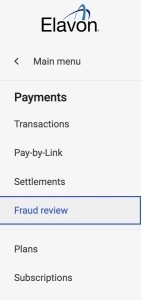

Select ‘Payments’ from the main menu
Select the ‘Fraud Review’ tab to display the list of transactions pending review.

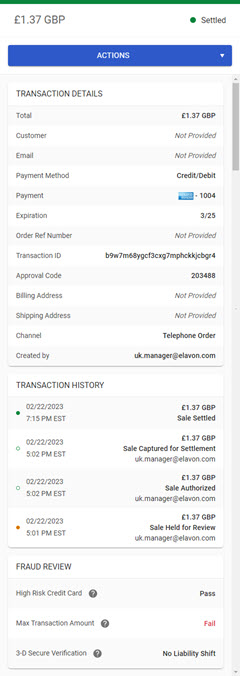

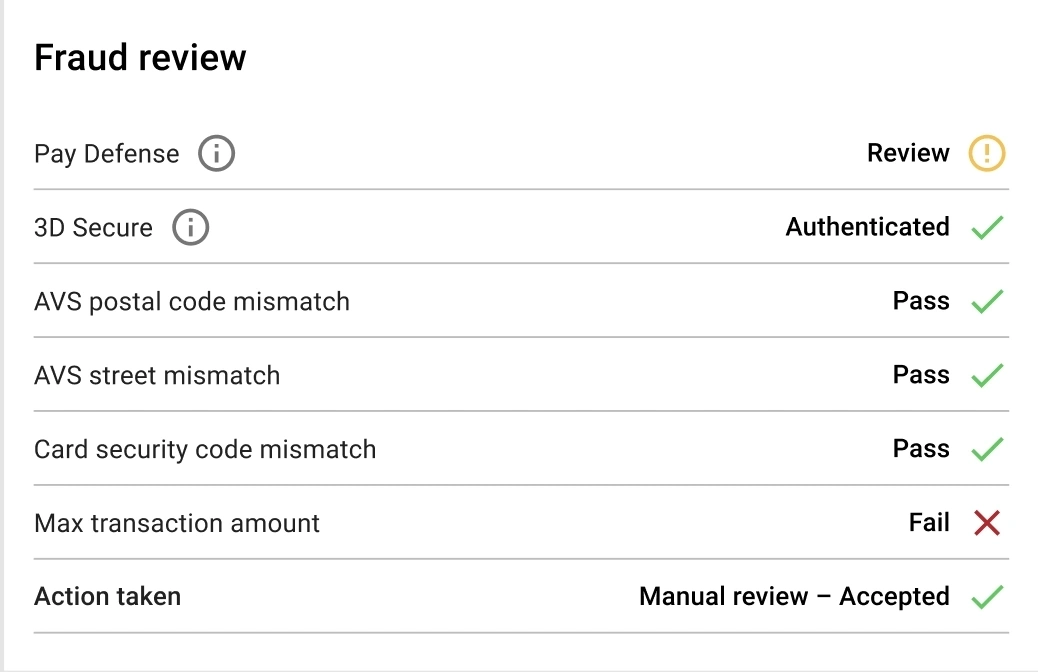

Click on the transaction in the Fraud Review list to display additional transaction details. At the bottom of the screen, you will see that in this example the transaction has failed the Max Transaction Amount fraud rule:

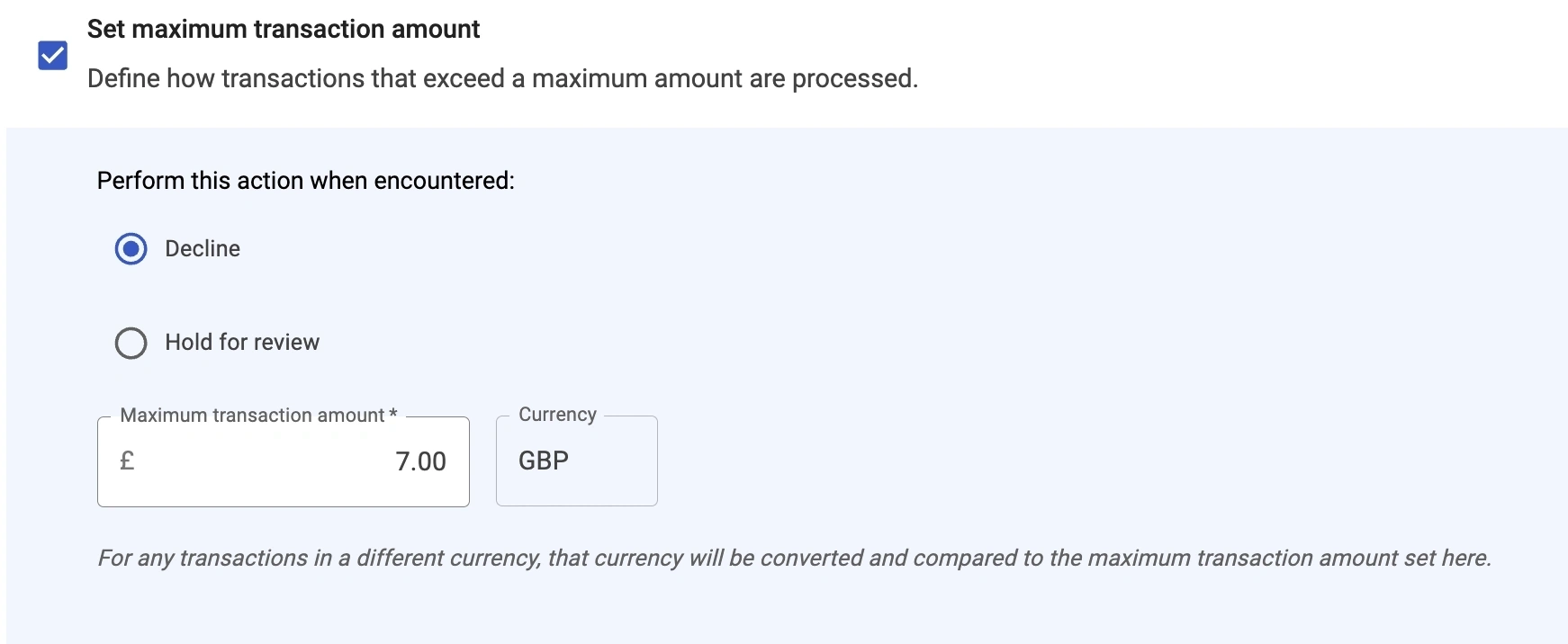

(The fraud rule was defined as below):
· You can now choose to ‘Approve’ or ‘Void’ the transaction:
If you approve the transaction, it will be released from the review list and captured for settlement in the next settlement batch.
If you void the transaction it will be cancelled.

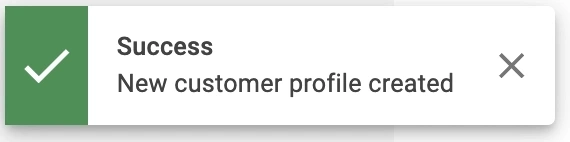

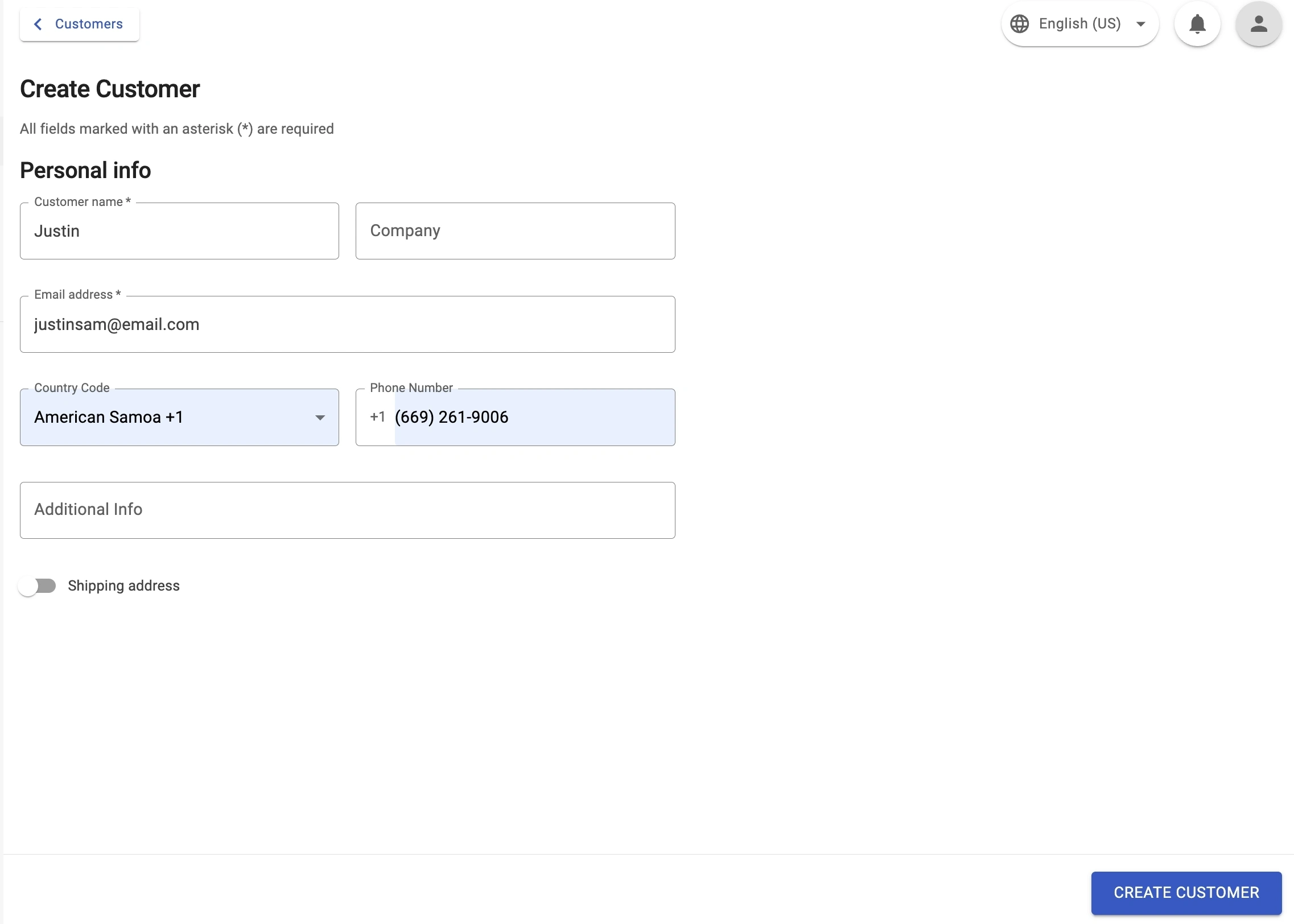

Click ‘Create Customer’

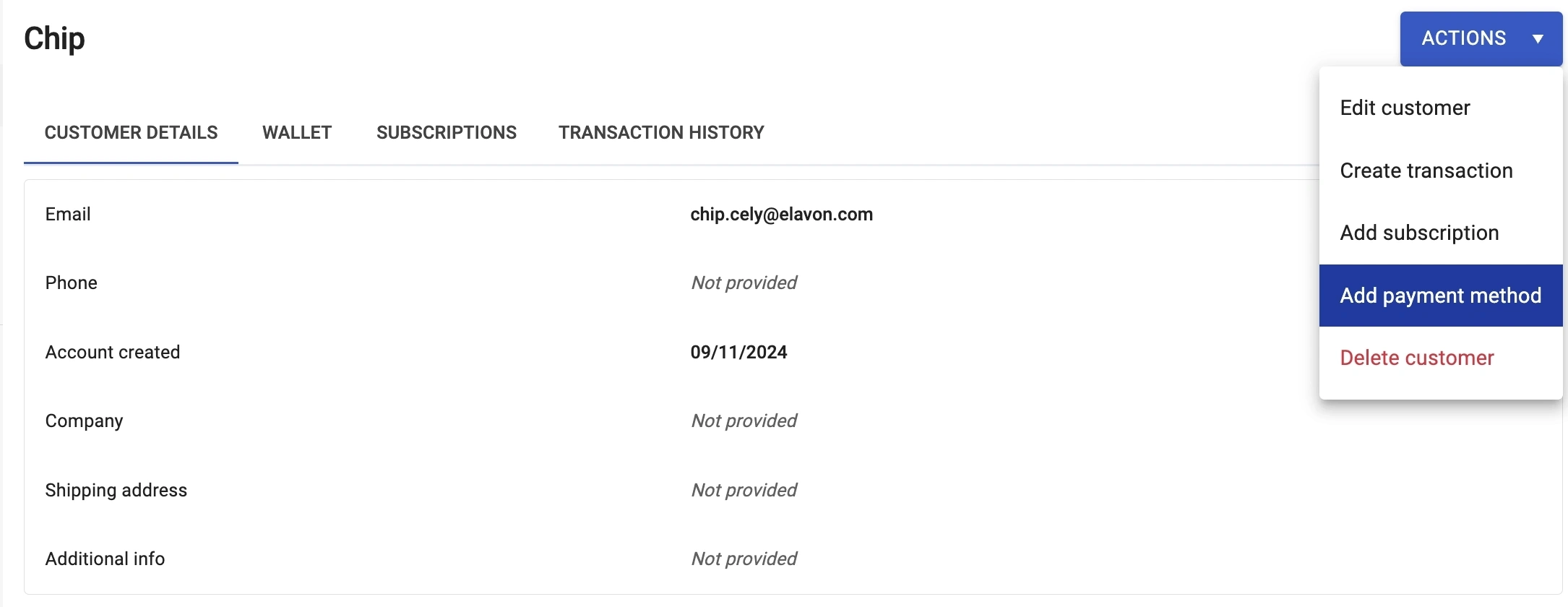

Select a customer profile, click ‘Actions’ and select ‘Add card’

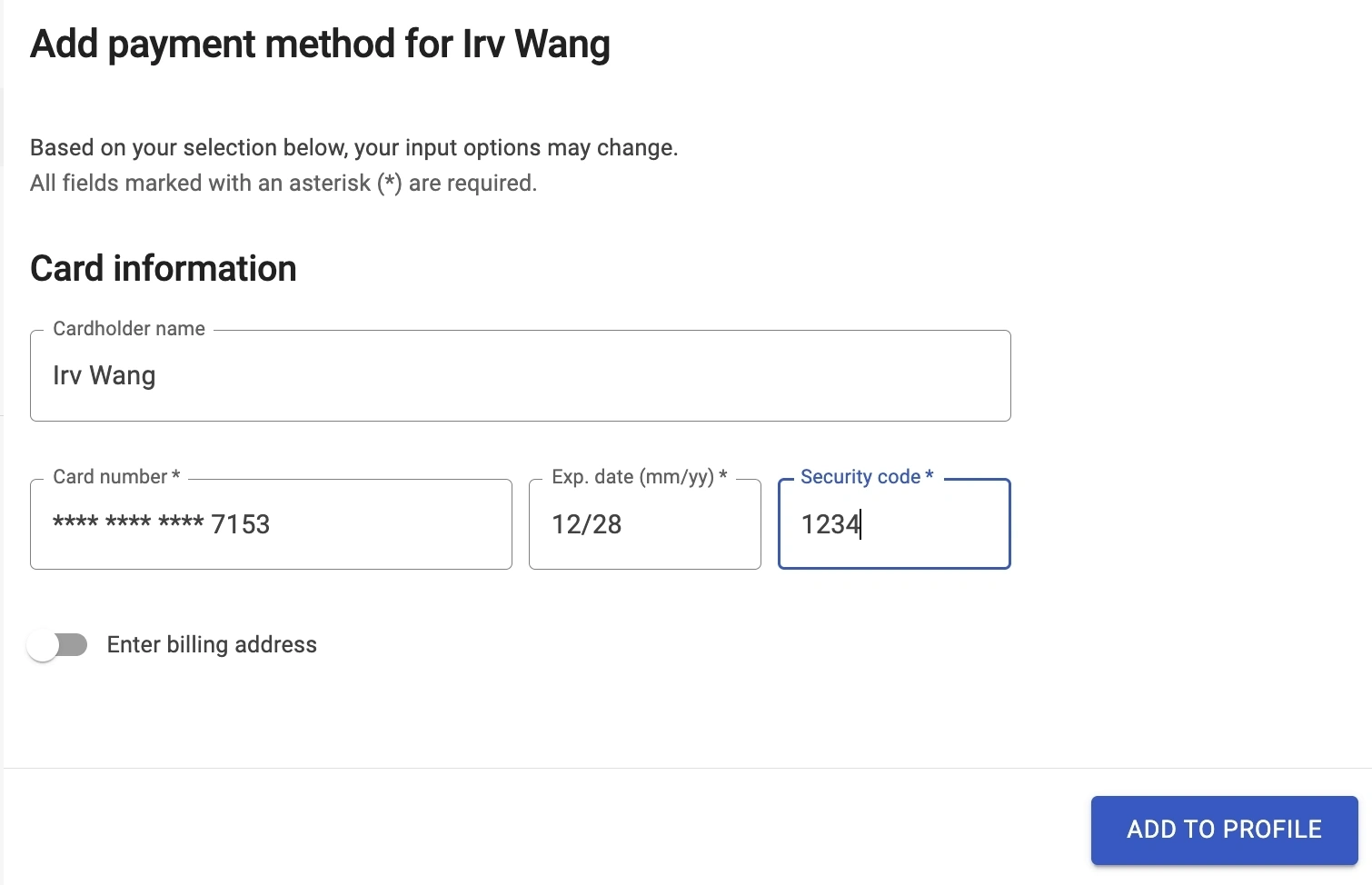

You can choose to capture the card details only, or the card details and the billing address:

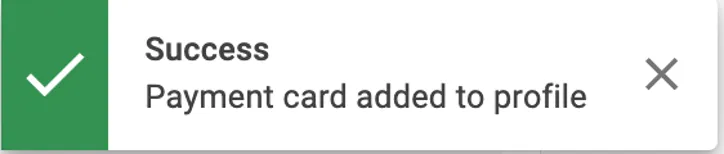

Click ‘Add to Profile’

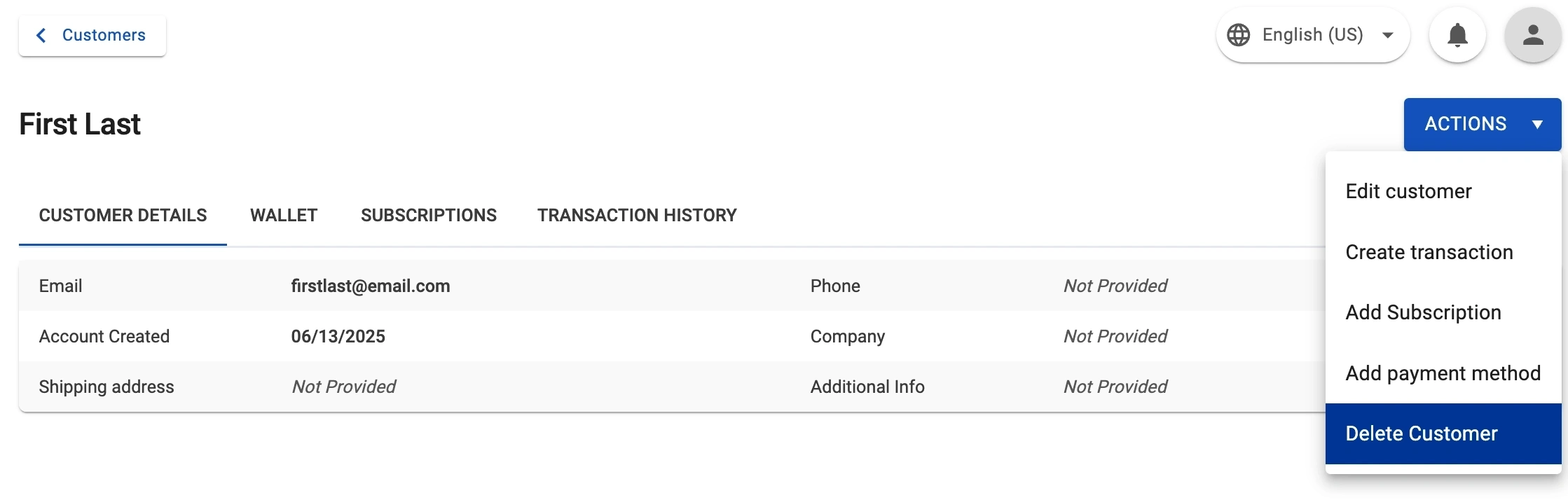

To delete a customer record, along with any stored cards, select a customer profile, click ‘Actions’ and select ‘Delete Customer’:
To confirm that you wish to delete the customer, click 'Yes':

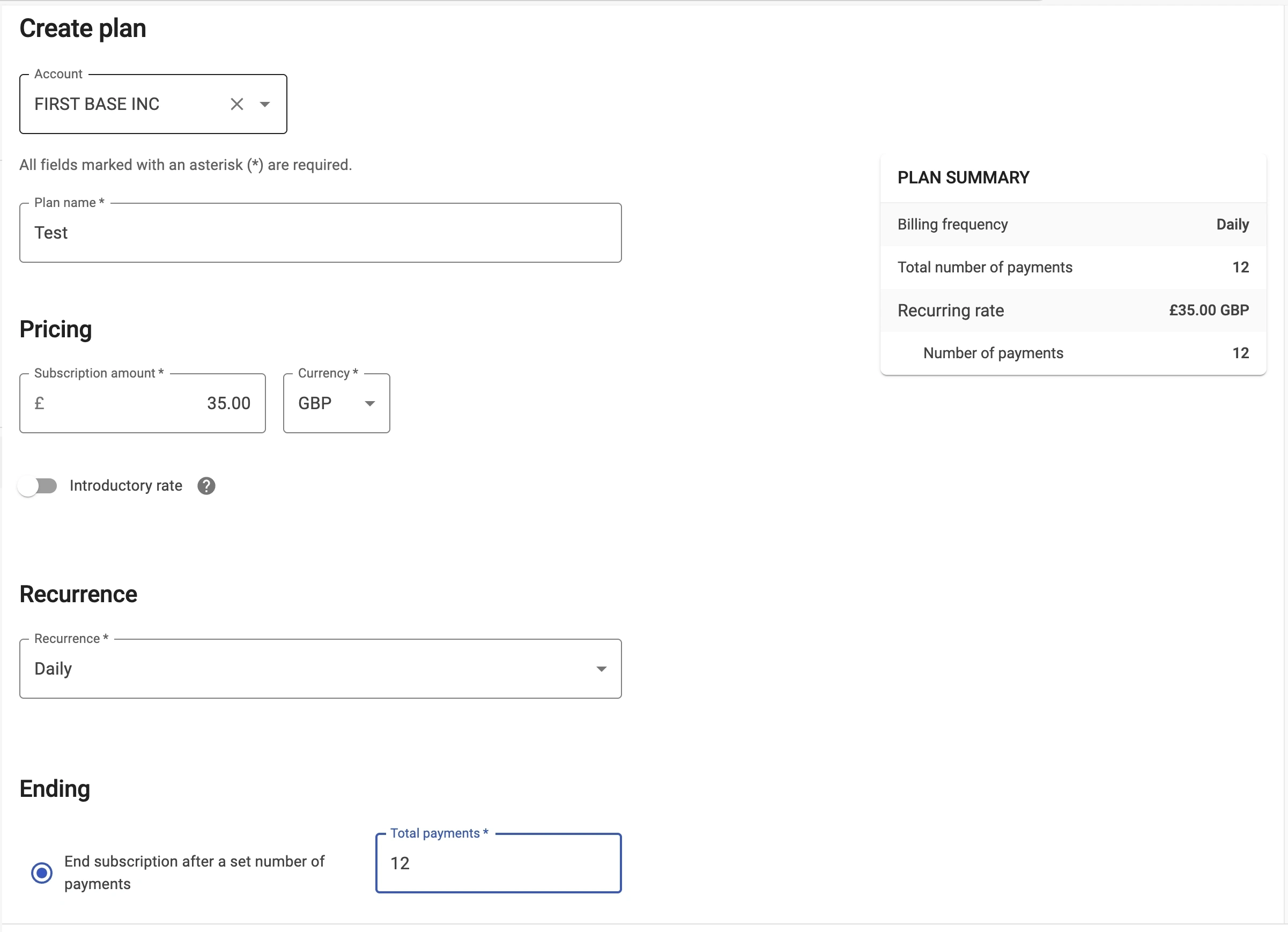

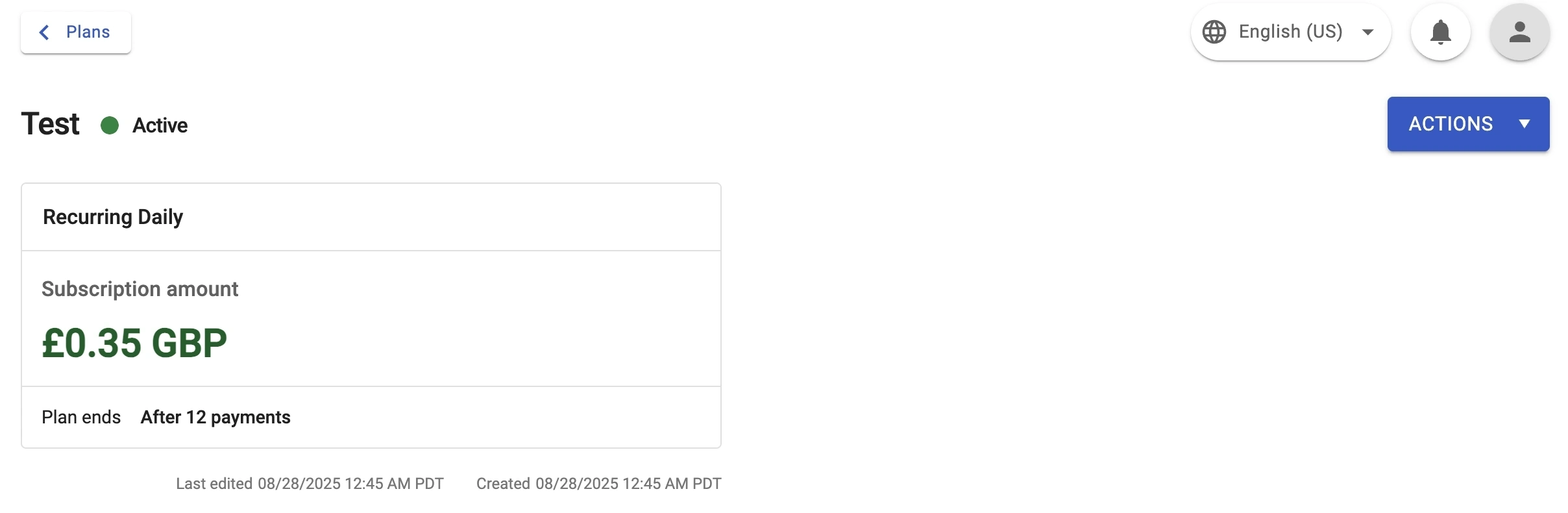

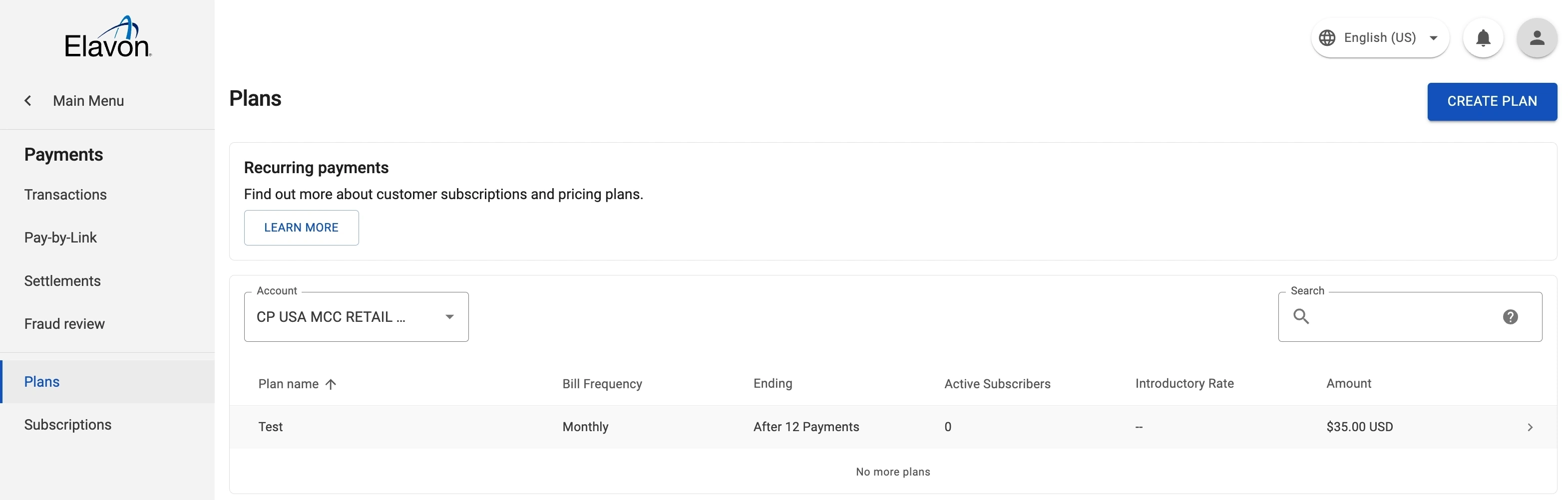

Click ‘Create Plan’ and you will see your plan marked as Active in the plan list:

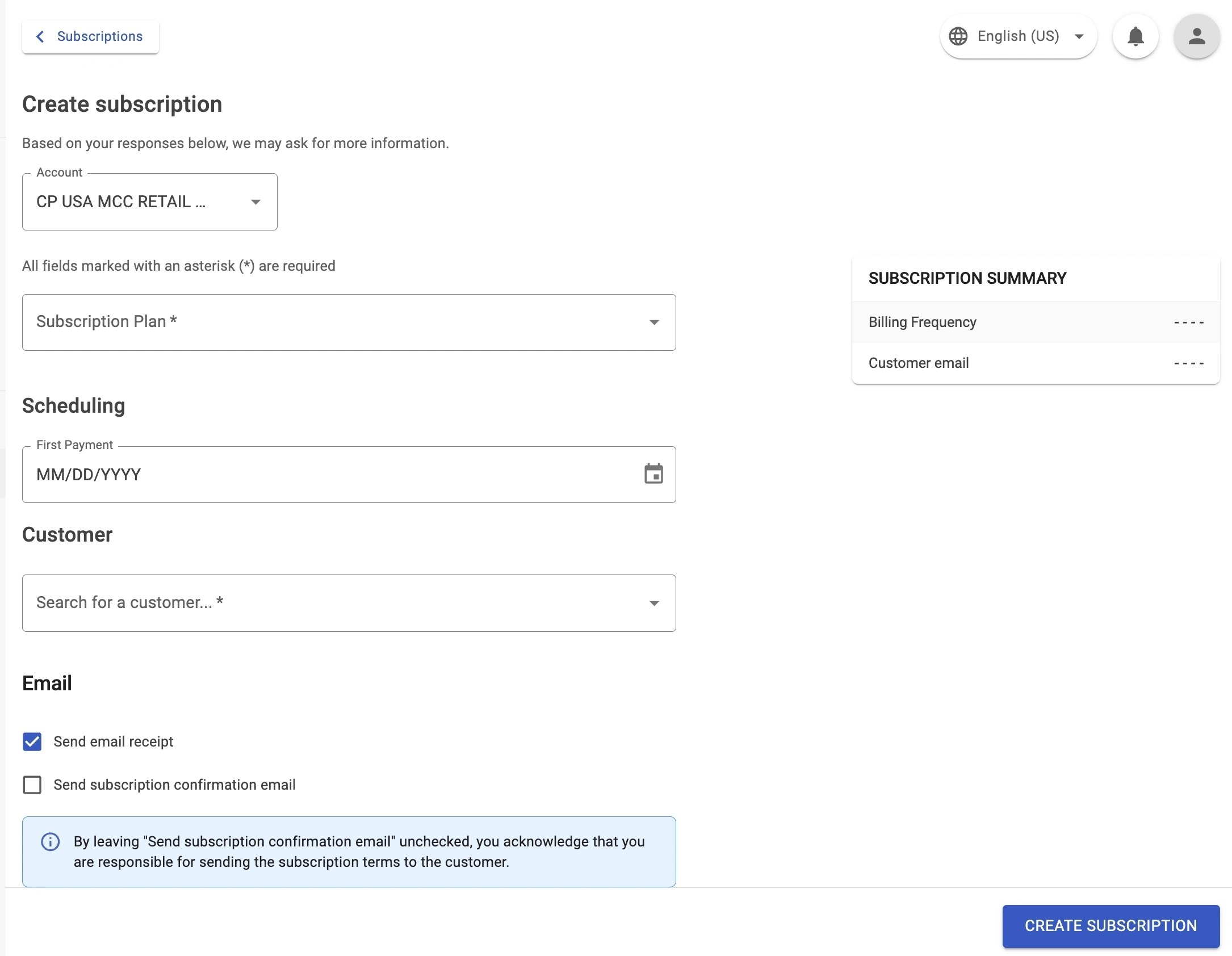

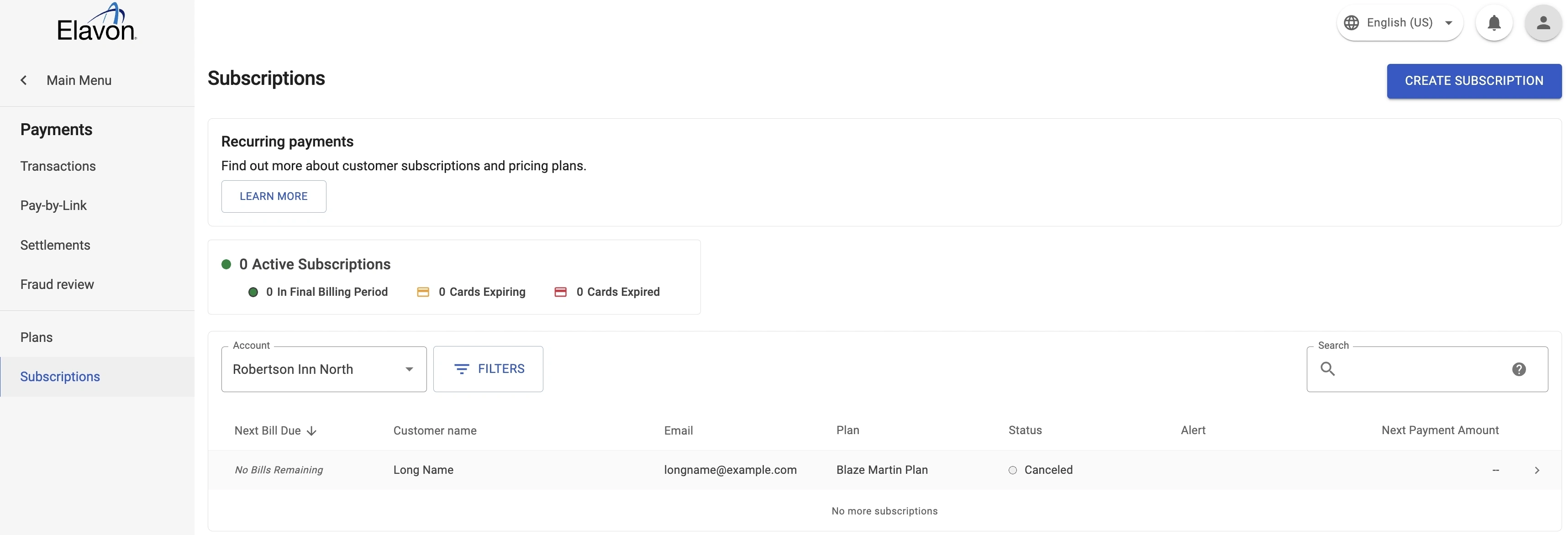

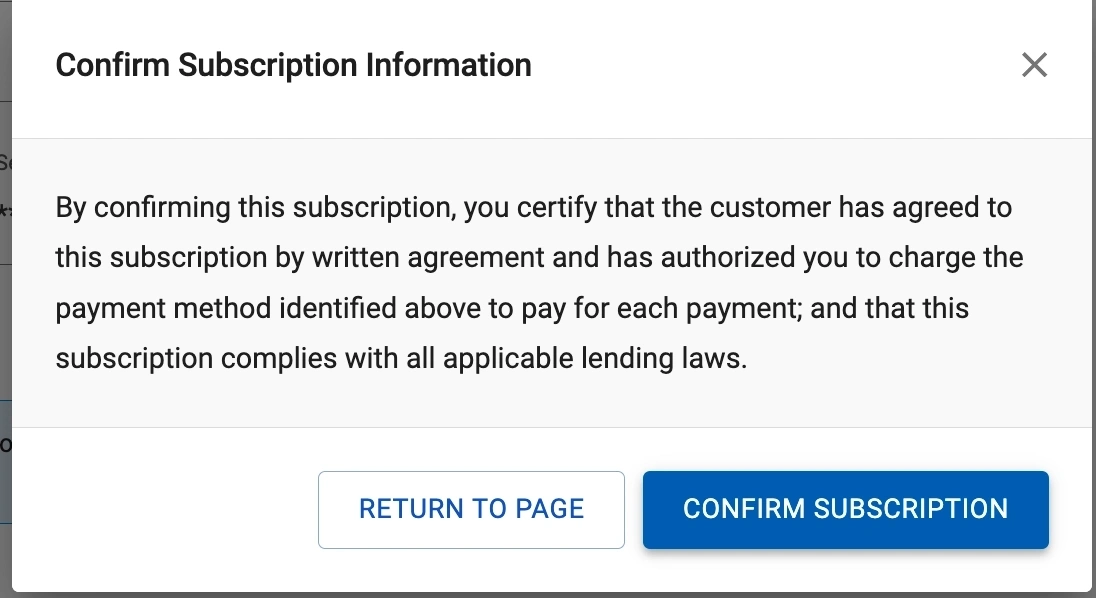

Click 'Create Subscription' and complete the details by assigning the relevant plan, the start date, and the customer it relates to:
Click 'Create Subscription'.

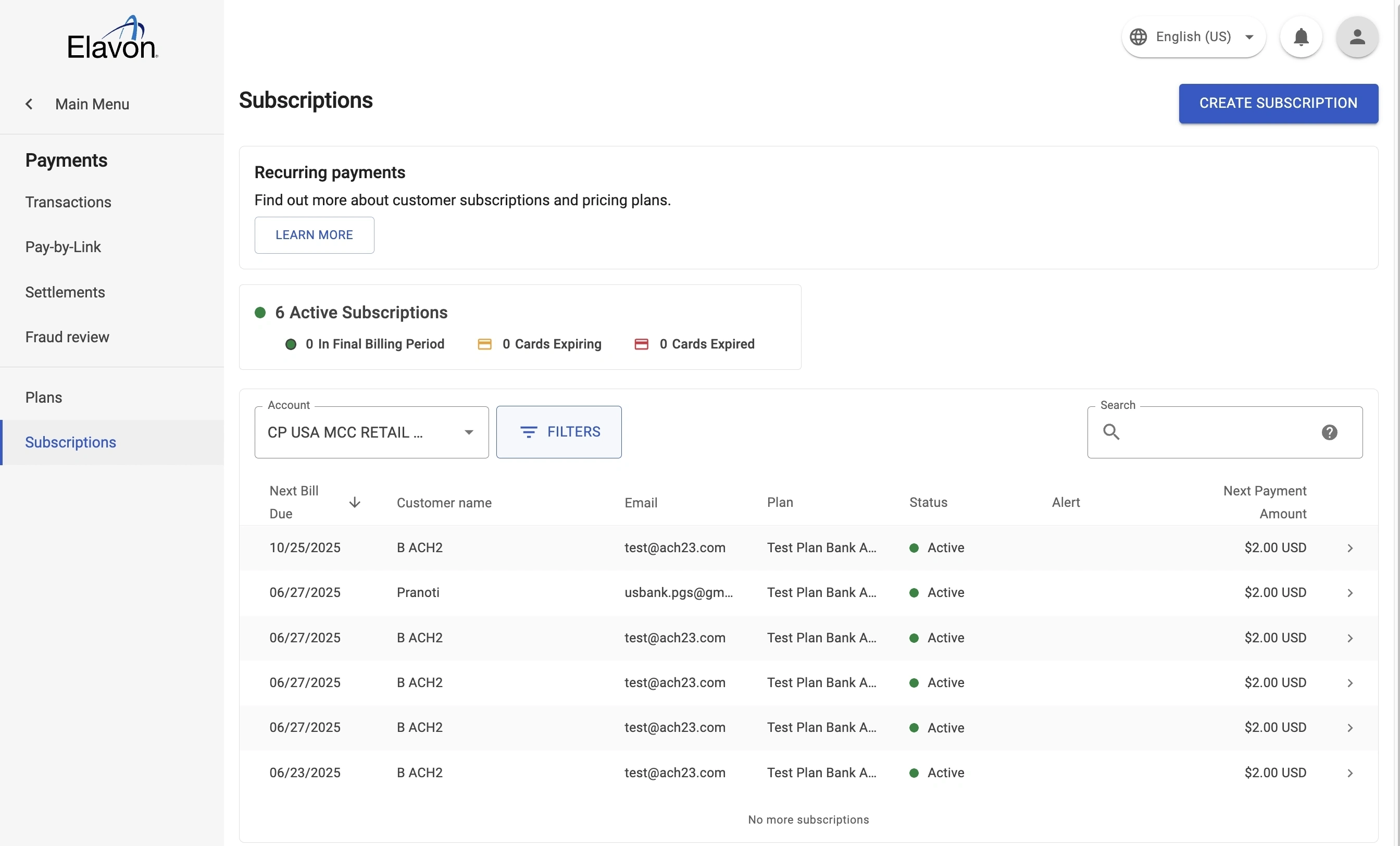

The new subscription will be displayed in the Subscription list, showing:

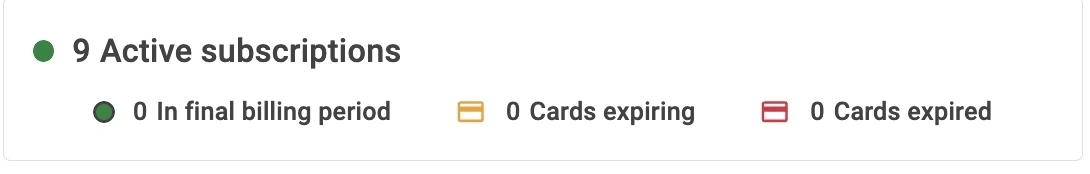

At the top of the screen, you’ll see a summary showing you whether a subscription is active, in a final billing period, and if a card is due to expire or has expired.
It is also possible to create a new subscription directly from the customer profile screen.
Select the Recurring option from the left-hand menu and locate the subscription you wish to cancel:

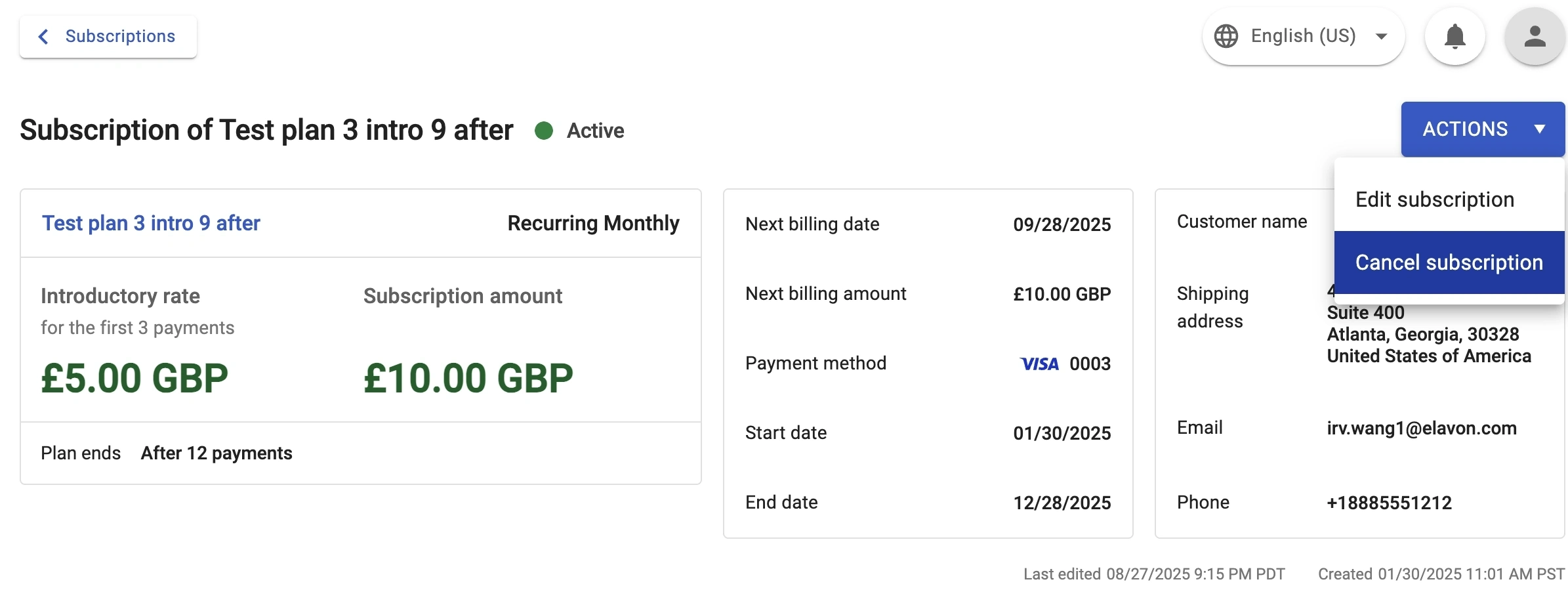

Select 'Cancel Subscription' from the 'Actions' menu:

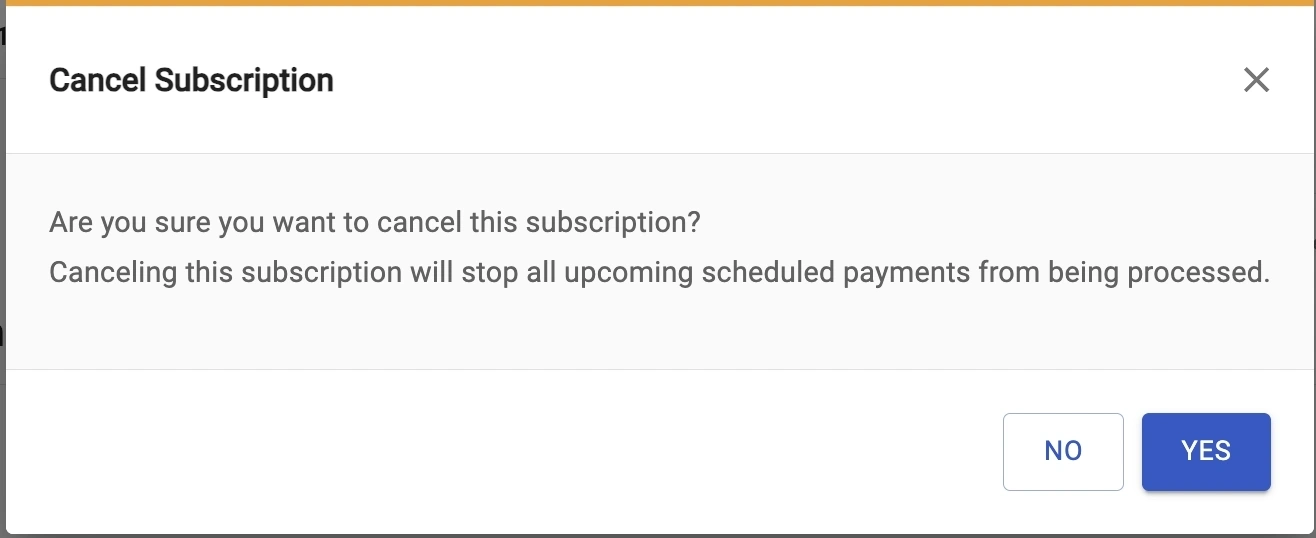

Click 'Yes' to confirm:

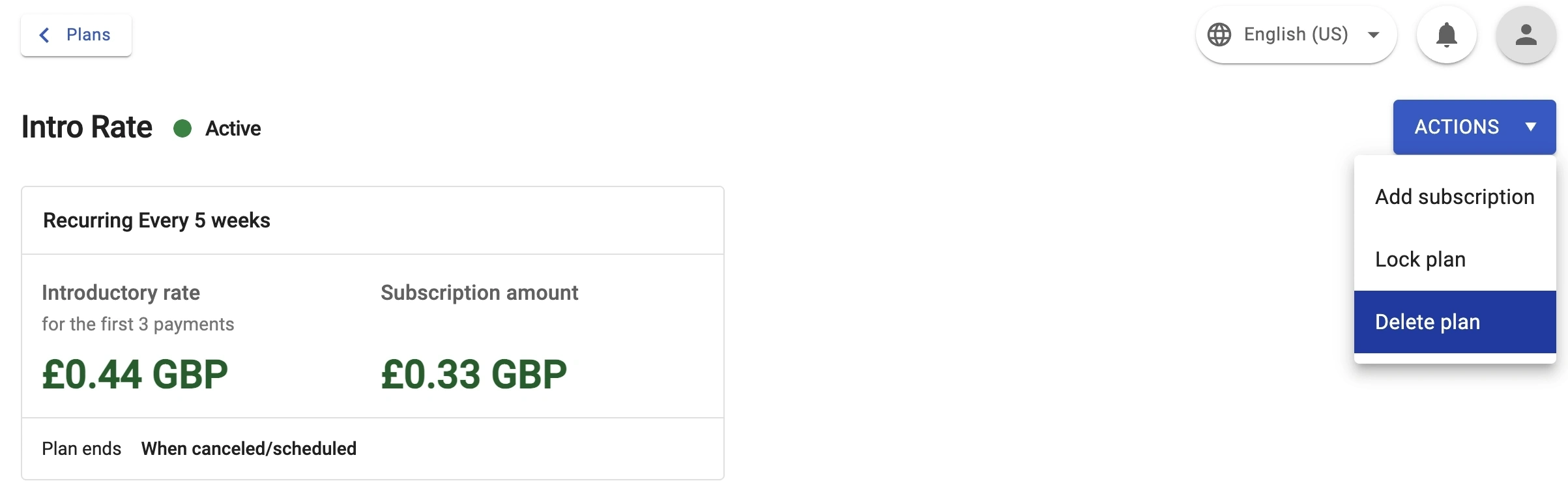

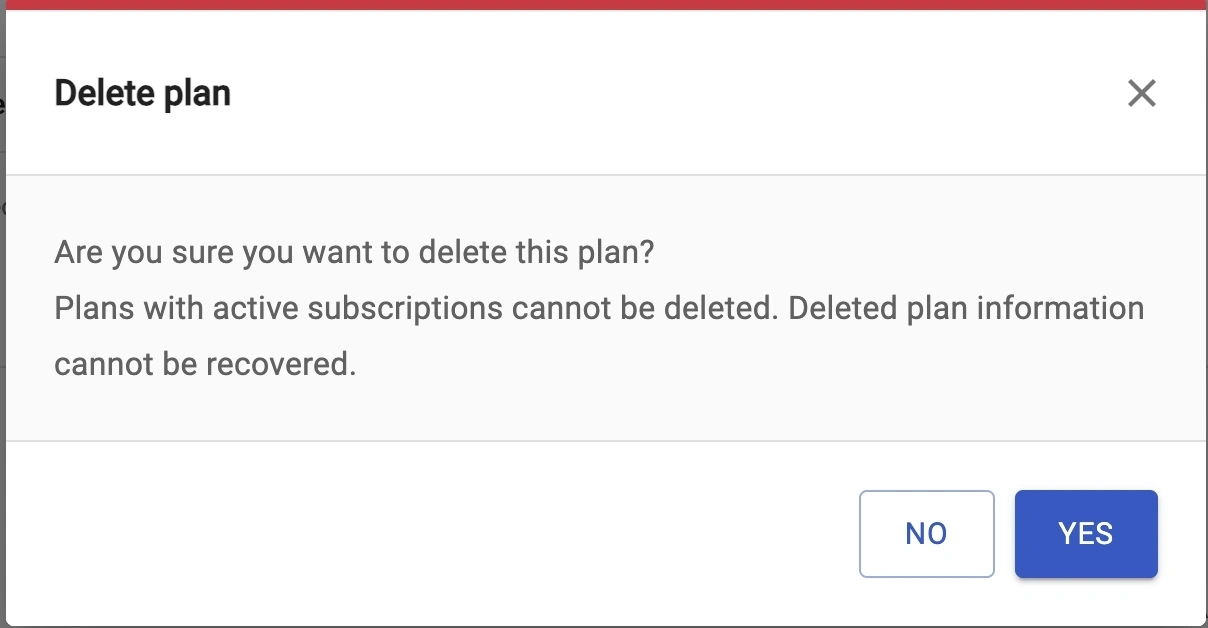

Click ‘Yes’ to confirm. Note that plans with active subscriptions cannot be deleted:

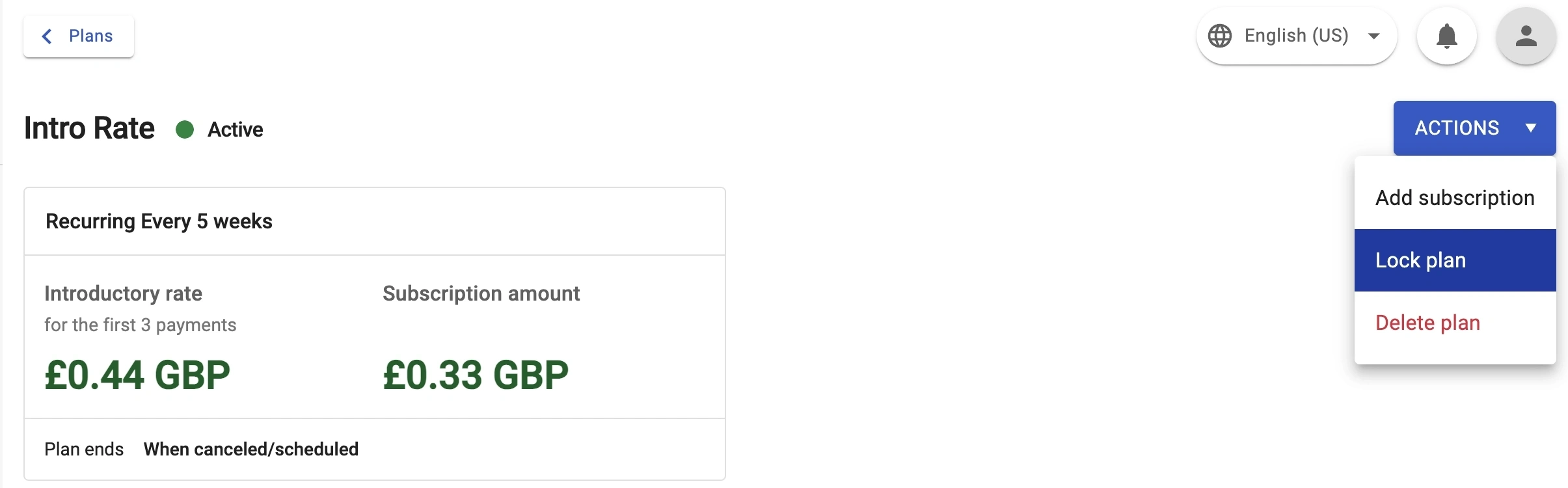

Click ‘Plans’ and select the plan you wish to lock.

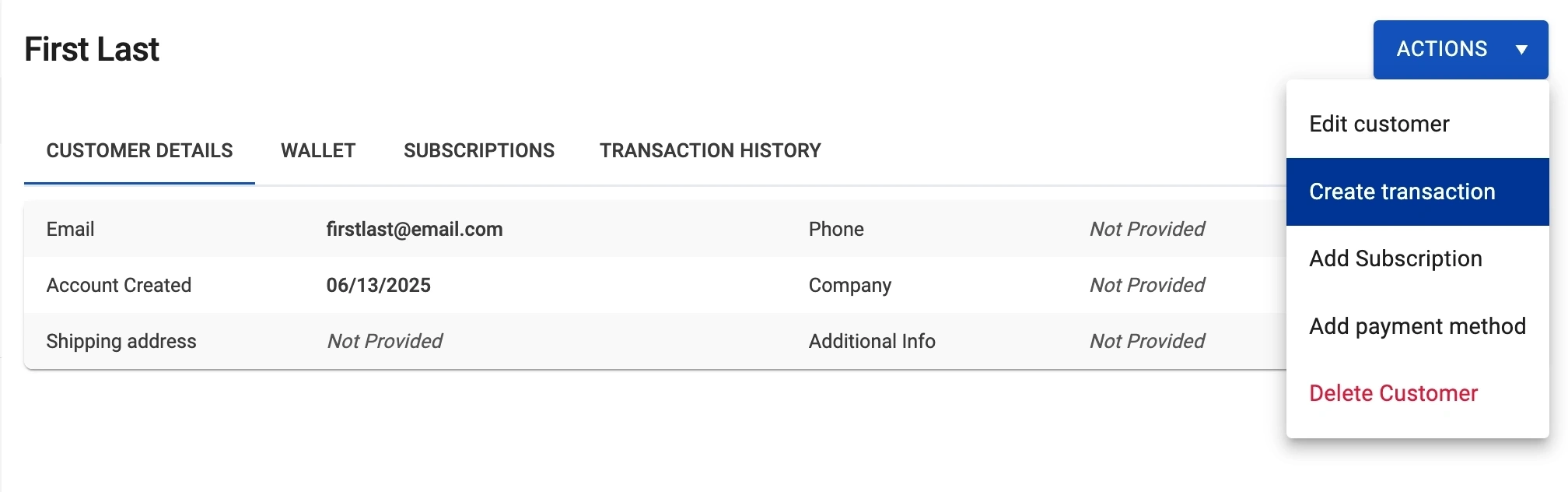

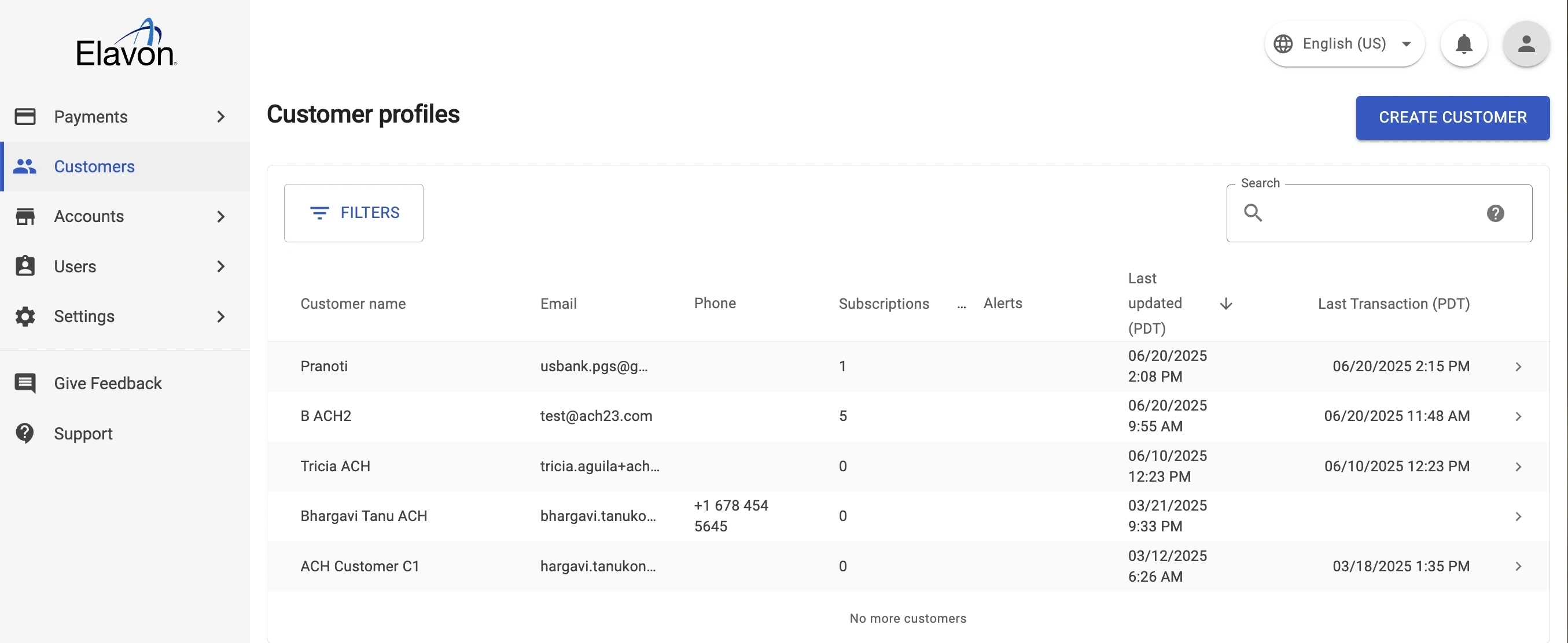

Select the ‘Customers’ option from the main menu and then select a customer profile to view the customer details, along with:
